Inverse patient
position
Instruction manual Operating table TruSystem 7000 – 1 730 263 – 11/2016

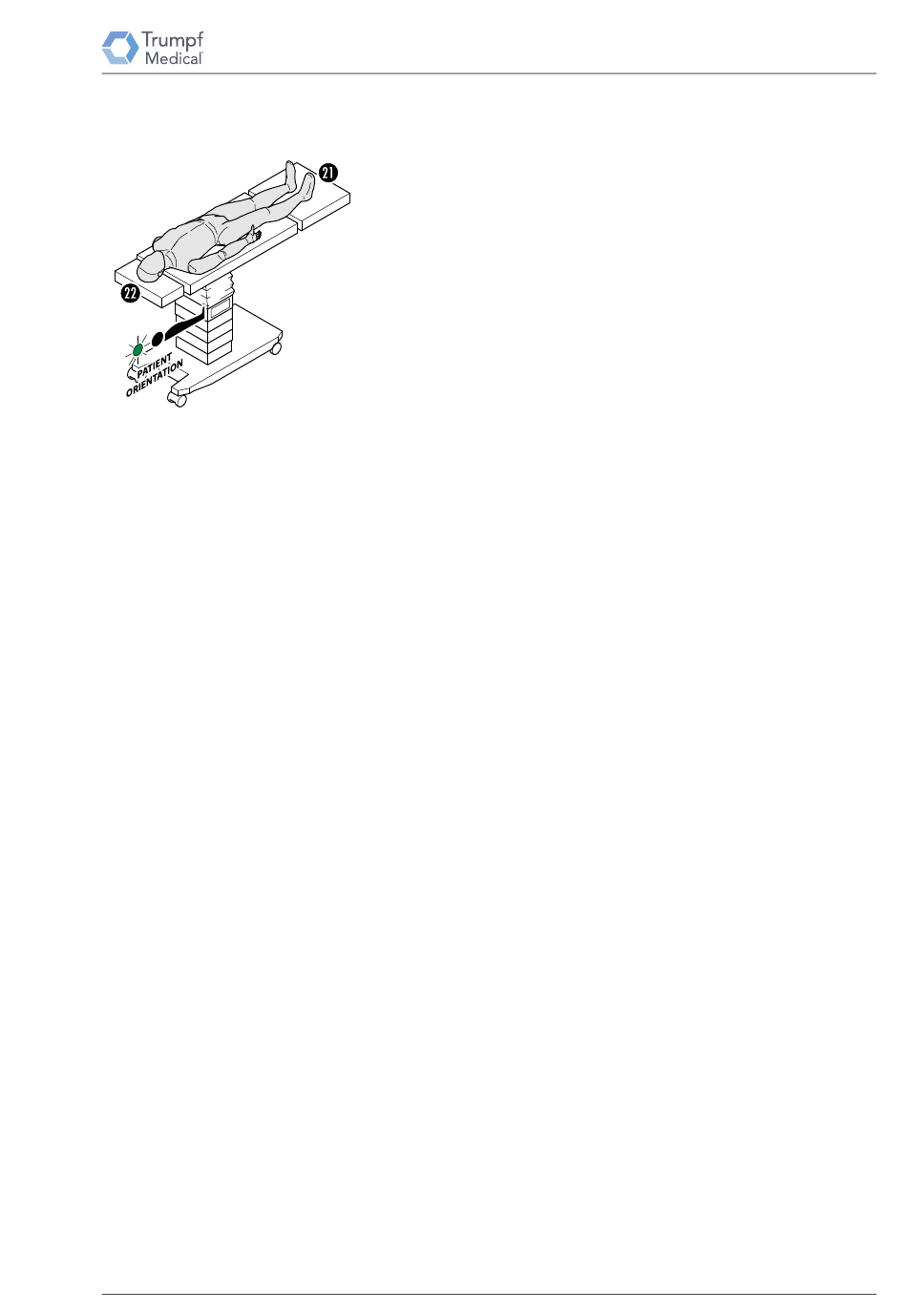

[21] Head end of the operating table top
[22] Foot end of the operating table top
The patient's head is at the foot end of the operating table top. The
head position on the column keypad must be changed, so that all
operating table functions are performed according to the patient
position. The display on the operating table column keypad must
match the patient's head position.
Attention, the adjustment areas for the inverse and normal patient
position may be different, because the function is executed in
accordance with the patient's position. For example, the leg section
joints assume the function of the lower back section joints in inverse
patient position. Commands are given using the keys for the back
section. However, the setting range of the back section is further
defined by the leg section joints.
Patient Positioning
63
