6.2

Remote control

Instruction manual Operating table TruSystem 7000 – 1 730 263 – 11/2016
The following remote controls can be used with the
TruSystem 7000 operating table:
– TruSystem 7000 wired remote control
– TruSystem 7500 wireless remote control (only for operating table
version MBW)
The user manual of the remote control used must be followed.

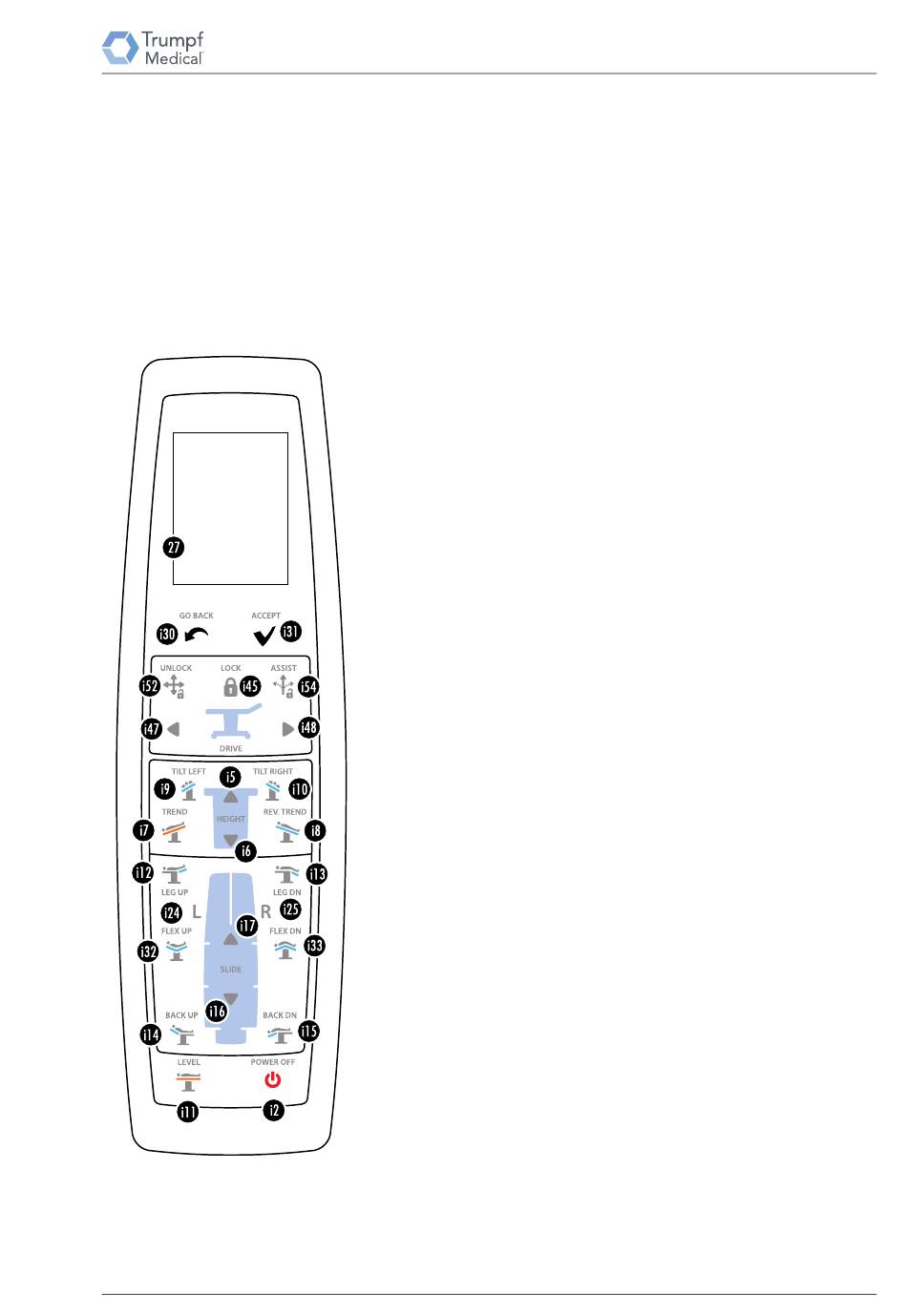

TruSystem 7000 wired remote control:
Key:
[i2] Switch off the operating table
[i5] Lift
[i6] Lower
[i7] Trendelenburg
[i8] Anti (Reverse)-Trendelenburg
[i9] Tilt left
[i10] Tilt right
[i11] Level position
[i12] Leg section joint up
[i13] Leg section joint down
[i14] Back section joint up
[i15] Back section joint down
[i16] Longitudinal travel toward head end
[i17] Longitudinal travel toward foot end
[i24] Select left joint
[i25] Select right joint
[i30] Cancel or go back to next higher level in menu
[i31] OK - Confirm a selected menu function and return to the main
menu
[i32] Reflex
[i33] Flex
[i45] Lock operating table
[i47] Traction drive at the foot end (only for operating table version
MB/MBW)
[i48] Traction drive at the head end (only for operating table
version MB/MBW)
[i52] Freewheel
[i54] Running gear assistance
[27] Touchscreen
Control Units
41
