OSP Home Furnishings CHARLOTTE BP-4208 Assembly Instructions

Kitchen island

August, 2019

BP-4208

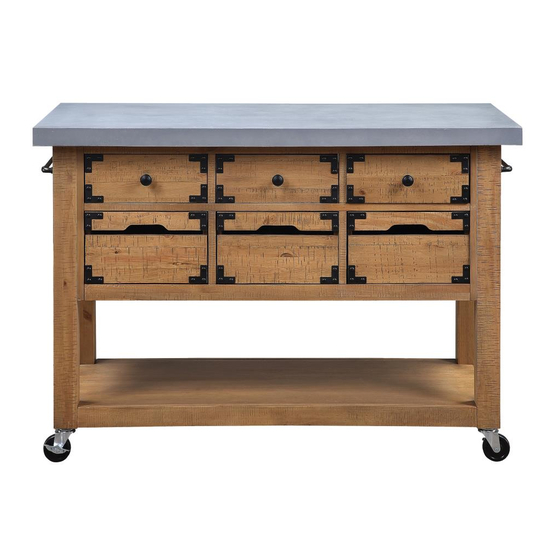

CHARLOTTE KITCHEN ISLAND

Assembly Instructions - Important:

Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when

assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or

information on other products, please visit our website: www.officestar.net or call or write us.

Table of Contents

Do you have a question about the CHARLOTTE BP-4208 and is the answer not in the manual?

Page 1 August, 2019 BP-4208 CHARLOTTE KITCHEN ISLAND Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or information on other products, please visit our website: www.officestar.net or call or write us.
Page 2 LIMITED WARRANTY OSP Home Furnishings™ warrants to the original purchaser that this product will be free from defects in material and workmanship as described below. OSP Home Furnishings™ will repair or replace, at its option, without charge to the original purchaser only, defective products or parts for one (1) year from the date of purchase.
Page 3 PARTS (A) Top (1 PC) (B) Body (1 PC) (C) Side Frame (2 PCS) (D) Bottom Panel (1 PC) HARDWARE LIST DRAWING DESCRIPTION QUANTITY Bolt 18 PCS Bolt 4 PCS Lock Washer 12 PCS Flat Washer 18 PCS Flat Washer 4 PCS Wooden Dowel 12 PCS...
Page 4 Phillips Screwdriver also needed for assembly (not provided). STEP 1 Two persons are required for assembly. (10) REMOVE DRAWERS FROM BODY (B). FULLY TIGHTEN ALL BOLTS (1). STEP 2 (10) (3) (1) (4) FULLY TIGHTEN ALL BOLTS.
Page 5 STEP 3 (11) FULLY TIGHTEN ALL CASTERS. STEP 4 Screw Knob REMOVE KNOBS FROM INSIDE OF DRAWERS. SECURE KNOBS TO OUTSIDE OF DRAWERS USING ONE SCREW FOR EACH KNOB. FULLY TIGHTEN ALL SCREWS USING PHILLIPS SCREWDRIVER (NOT PROVIDED).
