July, 2019
BP-4214

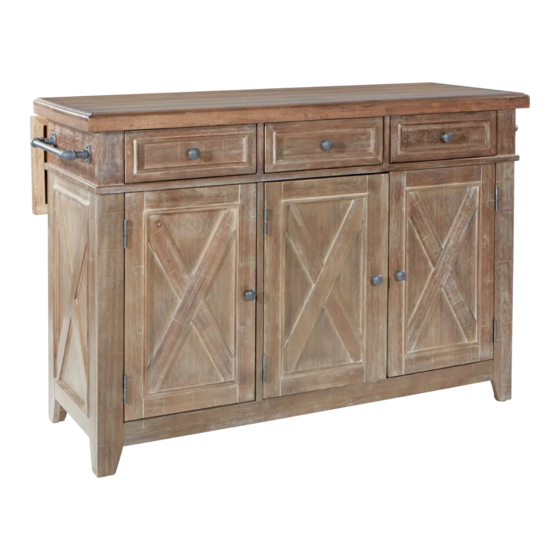

COCINA KITCHEN ISLAND
Assembly Instructions - Important:
Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when
assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or
information on other products, please visit our website: www.officestar.net or call or write us.
Advertisement
Related Manuals for OSP Home Furnishings BP-4214
Summary of Contents for OSP Home Furnishings BP-4214
- Page 1 July, 2019 BP-4214 COCINA KITCHEN ISLAND Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or...
-
Page 2: Limited Warranty
LIMITED WARRANTY OSP Home Furnishings™ warrants to the original purchaser that this product will be free from defects in material and workmanship as described below. OSP Home Furnishings™ will repair or replace, at its option, without charge to the original purchaser only, defective products or parts for one (1) year from the date of purchase. - Page 3 PARTS (A) Top (1 PC) (B) Drawer (2 PCS) (C) Middle Drawer (1 PC) (D) Bottom Panel (1 PC) (E) Back Panel (1 PC) (F) Shelf (2 PCS) LEFT CENTER RIGHT (G) Door (3 PCS) (H) Divider (3 PCS) (I) Hardware Pack (1 PC) (J) Left Side Panel (1 PC)
-
Page 4: Hardware List
PARTS (K) Right Side Panel (1 PC) (L) Partition (1 PC) (M) Table Leaf (1 PC) HARDWARE LIST DRAWING DESCRIPTION SIZE QUANTITY Screw P6 x 19 12 PCS Screw M4 x 20mm 6 PCS Screw P6 x 19mm 12 PCS Screw M6 x 30mm 12 PCS... - Page 5 STEP 1 CAM LOCK INSTALLATION CAM LOCK INSTALLATION CAM LOCK INSTALLATION CAM LOCK INSTALLATION 180° 180° 180° 180° FULLY TIGHTEN ALL CAM SCREWS (5) USING PHILLIPS SCREWDRIVER (NOT PROVIDED). STEP 2 FULLY TIGHTEN ALL CAM LOCKS (6) USING PHILLIPS SCREWDRIVER (NOT PROVIDED).
- Page 6 STEP 3 FULLY TIGHTEN ALL SCREWS (4) USING ALLEN WRENCH (10). STEP 4 FULLY TIGHTEN ALL CAM LOCKS (6) USING PHILLIPS SCREWDRIVER (NOT PROVIDED). FULLY TIGHTEN ALL SCREWS (4) USING ALLEN WRENCH (10).
- Page 7 STEP 5 FULLY TIGHTEN ALL SCREWS (3) USING PHILLIPS SCREWDRIVER (NOT PROVIDED). STEP 6 FULLY TIGHTEN ALL SCREWS (4) USING ALLEN WRENCH (10).
- Page 8 STEP 7 FULLY TIGHTEN ALL SCREWS (1) USING PHILLIPS SCREWDRIVER (NOT PROVIDED). STEP 8...
- Page 9 STEP 9 RIGHT SLIDE DOWN CENTER LEFT LEVELER FULLY TIGHTEN ALL SCREWS (2) USING PHILLIPS SCREWDRIVER (NOT PROVIDED). IF NEEDED, ADJUST LEVELERS TO LEVEL.
