July, 2019
BP-4209

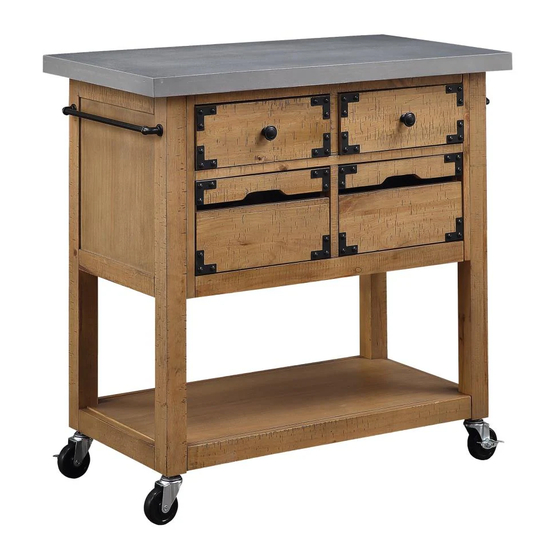

AUSTIN KITCHEN ISLAND

Assembly Instructions - Important:

Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when
assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or
information on other products, please visit our website: www.officestar.net or call or write us.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AUSTIN BP-4209 and is the answer not in the manual?

Questions and answers

Related Manuals for OSP Home Furnishings AUSTIN BP-4209

Summary of Contents for OSP Home Furnishings AUSTIN BP-4209

  • Page 1 July, 2019 BP-4209 AUSTIN KITCHEN ISLAND Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or information on other products, please visit our website: www.officestar.net or call or write us.
  • Page 2 LIMITED WARRANTY OSP Home Furnishings™ warrants to the original purchaser that this product will be free from defects in material and workmanship as described below. OSP Home Furnishings™ will repair or replace, at its option, without charge to the original purchaser only, defective products or parts for one (1) year from the date of purchase.
  • Page 3 PARTS (A) Top (1 PC) (B) Body (1 PC) (C) Side Frame (2 PCS) (D) Bottom Panel (1 PC) HARDWARE LIST DRAWING DESCRIPTION QUANTITY Bolt 16 PCS Bolt 4 PCS Lock Washer 12 PCS Flat Washer 16 PCS Flat Washer 4 PCS Wooden Dowel 12 PCS...
  • Page 4 STEP 1 Phillips Screwdriver also needed for assembly (not provided). Two persons are required for assembly. (10) REMOVE DRAWERS FROM BODY (B). FULLY TIGHTEN ALL BOLTS (1). STEP 2 (1) (4) (10) FULLY TIGHTEN ALL BOLTS.
  • Page 5 STEP 3 (11) FULLY TIGHTEN ALL CASTERS. STEP 4 Screw Knob REMOVE KNOBS FROM INSIDE OF DRAWERS. SECURE KNOBS TO OUTSIDE OF DRAWERS USING ONE SCREW FOR EACH KNOB. FULLY TIGHTEN ALL SCREWS USING PHILLIPS SCREWDRIVER (NOT PROVIDED).
