Courtyard Creations AUGUSTA KVS941C Assembly Instructions

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE

PARTS LIST

PART
MATERIAL CODE
NO.
1
KVS941C-CS03-4
2
KVS941C-CS02-1
3
KVS941C-CS03-5
4
17C40A0710001YX
5
17C40A0712001YX
6
28000221046
7
17LA07121----YX
Attention:
Make sure that each bolt needed for all steps matches
the corresponding figure to ensure proper assembly.
Step 1:
Fasten the plastic leg cap (#6) to the back assembly (#1)
by using washer (#8) and nut (#7). See Figure 1.
Use the correct bolts as indicated. Do not tighten any of the bolts until the chair is completely assembled.
Do not discard of any of the packaging until you have checked that you have all of the parts and
fittings required.
Keep children away during assembly. This item contains small parts that can be swallowed by
children. Children should always be under direct adult supervision while using this product.
Retain these assembly instructions for future reference.
Quote the following FQC NO. when contacting the service center.
E-3
INTENDED FOR RESIDENTIAL USE ONLY.

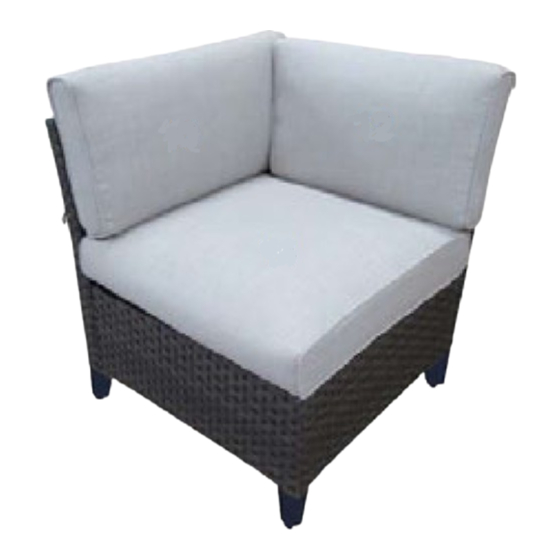

AUGUSTA ALL-WEATHER
WICKER CUSHION CORNER CHAIR
PART
BACK ASSEMBLY
SEAT ASSEMBLY MBLY
ARM ASSEMBLY
BOLT M6*30
BOLT M6*35
PLASTIC LEG CAP
NUT M8
SERVICE CENTER TOLL FREE NO
TEL: 1-877-539-7436
FAX: 1-877-539-7439
KVS941C
PART
Q'TY MATERIAL CODE
NO.
1 8
17FC08030801-YX
1 9
17KAA0101----Y4
1 10
17KAA0201----Y4
3 11
17KAC3101----Y3
6 12
61K941CX00001BA
4 13
61K941CX50001BA
4 14
61K941CY00001BA
FIGURE 1
6
PAGE 1 OF 3
PART
WASHER d8.5*D12*2.1
HEX.KEY WRENCH 4MM
HEX.KEY WRENCH 6MM
HEX.KEY WRENCH 10MM
LEFT BACK CUSHION
RIGHT BACK CUSHION
SEAT CUSHION
1
6
7
8
COURTYARD CREATIONS INC.
Q'TY
4
1
1
1
1
1
1
