Macnaught IM50 Instruction Manual

IM082
0107
0006
POSITIVE DISPLACEMENT FLOWMETERS
INTRODUCTION
Thank you for purchasing a Macnaught Positive
Displacement Flowmeter.
The Macnaught IM50 Positive displacement flowmeter
have incorporated the oval rotor principal into its design.
This has proven to be a highly reliable and highly
accurate method of measuring flow, providing exceptional
repeatability and high accuracy.
The IM50 meter can be connected to a Macnaught oil
dispensing nozzle or can be installed and used as an in
line meter.
Macnaught manufacture a full range of pumps and
accessories to suit most of your fluid transfer needs,
please consult your local Macnaught reseller for more
information.
With appropriate care combined with the Macnaught
Guarantee of dependable after sales service, (provided by
our worldwide distribution network), you will be assured
of continuous safe, efficient and reliable product
operation.
Please read and retain this instruction manual to
assist you in the operation and maintenance of this
quality product.
GENERAL INFORMATION
This manual assists you in operating and maintaining your
new positive displacement flowmeter. The information
contained will help you ensure many years of dependable
performance and trouble free operation.
Please take a few moments to read through this manual
before installing and operating your new meter. If you
experience problems with this product, refer to the
Maintenance and Trouble Shooting sections of this manual.
If you require further assistance please contact your local
Macnaught Distributor, Authorised Macnaught Service
Centre or Macnaught P/L.
IMPORTANT INFORMATION
Macnaught recommends, that if you are using your meter as
an in-line application you should install a filter before the
inlet of the meter. Contact your local Macnaught distributor
for further details.
IM50 (ELECTRONIC)
INSTRUCTION MANUAL
INSTALLATION
1) Do not over tighten connections.
OPERATION

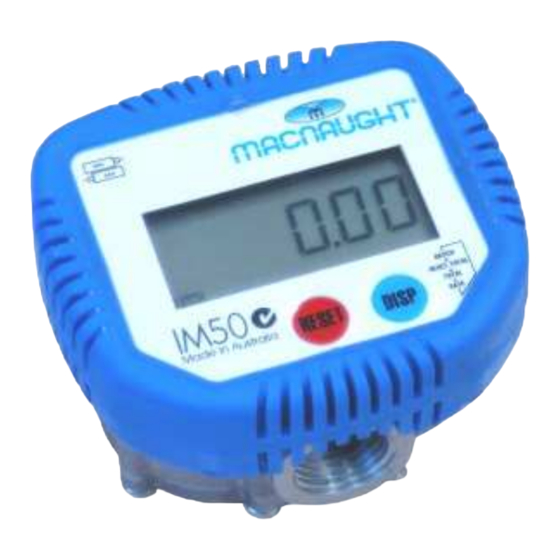

IM50 ELECTRONIC REGISTER
DISPLAY BUTTON
Each press of the DISP button will allow you to scroll through
the meter options
RESET BUTTON
The RESET button allows you to reset the Batch Total or the
Resettable Acumulative Total to zero.
To reset either the Batch total or Resetable Acumulative total.
Press the DISP button to scroll to either the Batch or Resetable
total . When the required total is displayed. Press reset to
zero the totalizer.
FLOWRATE
This display option shows the flowrate of the fluid passing
through the meter.
Resetable Batch Total
Resetable Accumulative Total
Non Resetable Accumulative Total
Flowrate
1
