Electronic meter

Advertisement

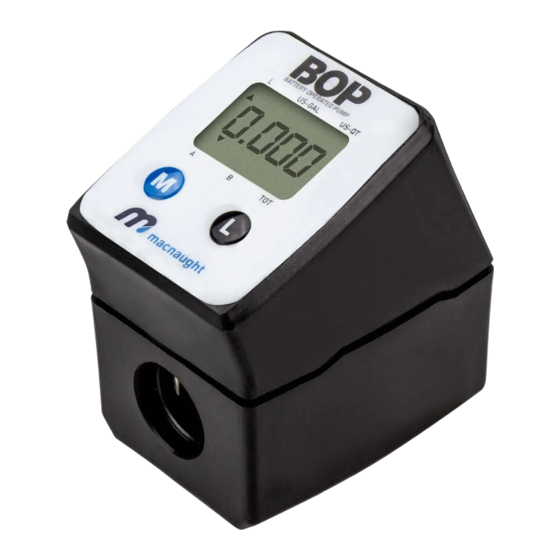

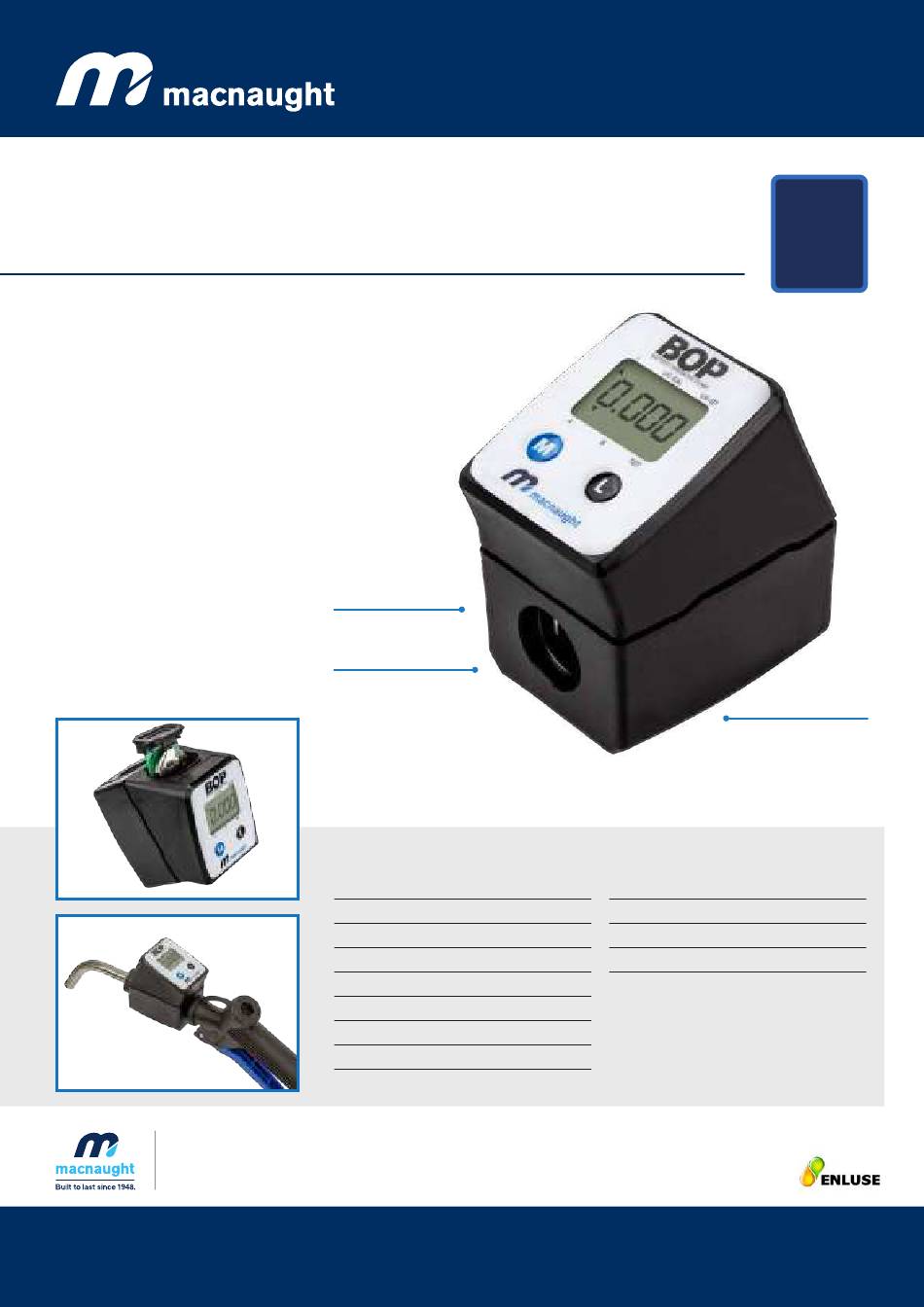

BOP INLINE METER
Macnaught's new BOP Inline Meter
has been created to compliment the
entire range of Macnaught's Patented
BOP (Battery Operated Pump) range.
The BOP Inline Meter can be fitted to
existing and new BOP dispense guns to
provide accurate volume measurement.
The unique swivel fitting allows quick
assembly to the BOP dispense gun and
allows 360º rotation of the meter for
clear visibility and usability. A backlight
function is also provided to further
enhance this usability.
Available individually or as part of the BOP
Starter or Pump Stem kits, this IP 67 rated
meter has been developed for accuracy
and durability and is powered by a single
coin battery located with easy access.
Designed here in Australia, this Inline
Meter delivers reliable and accurate
readings in both metric and imperial units.
Macnaught Pty Ltd 41-49 Henderson St, Turrella NSW 2205. Australia
Ph: +61 2 9567 0401
*For Macnaught warranty, terms and conditions see macnaught.com/warranty ©Macnaught Pty Ltd, 2021
enluse.com
Back Light Function
Four Digit Display
- Resettable batch total
- Resettable accumulative total
- Non resettable accumulative total
TECHNICAL SPECIFICATION
Flow Rate up to 10LPM
Operating Temperature -20 Deg C to +70 Deg C
Operating Pressure 20psi (Max 60psi)
Accuracy +/- 2% of Reading
IP Rating IP65
Inlet Connection 1/2" Inlet Connector Supplied
Outlet Connection 1/2" BSP (F)
Power 1 x Cr2450 3V Lithium Coin Battery
Fax: +61 2 9597 7773
Email: info@macnaught.com
Metric and Imperial Units
P/N: IM012EB-01
PACKAGE INCLUDES
BOP Inline Meter
Fittings
Batteries
Operators Manual
Innovation. The only way to stay ahead.
2
YEARS
MACNAUGHT
WARRANTY
*
www.enluse.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BOP IM012EB-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Macnaught BOP IM012EB-01

  • Page 1 Macnaught Pty Ltd 41-49 Henderson St, Turrella NSW 2205. Australia Ph: +61 2 9567 0401 Fax: +61 2 9597 7773 Email: info@macnaught.com *For Macnaught warranty, terms and conditions see macnaught.com/warranty ©Macnaught Pty Ltd, 2021 www.enluse.com Innovation. The only way to stay ahead. enluse.com...
  • Page 2 IM012EB-01 ELECTRONIC METER INSTRUCTION MANUAL This meter is designed specifically for the Macnaught BOP Battery Operated Pump Series Im012eb_issue 1 © 2021 Page 1 of 8...
  • Page 3: Operating Principal

    CAUTION remove item (5) from the gun (1). 2) Screw item (2) to the gun outlet (1) - Do not over * Macnaught recommends the use of PPE tighten. equipment such as safety glasses, protective gloves, safety shoes etc before handling or 3) Slide O’ring (6) all the way onto screw (2)
  • Page 4: Replace Battery

    US GAL US QT LITRE RESET BATCH TOTAL NON RESET TOTAL BACK LIGHT SELECT UNITS INLET RESET ACCUMULATIVE TOTAL Reset batch or accumulative totals to zero OPERATING INSTRUCTIONS 1) Waken display by pressing either the ‘M”or “L” The display wakens when flluid passes through the Button meter or either the “M”or “L”button is pressed.
  • Page 5: Troubleshooting

    TROUBLE SHOOTING TROUBLE CAUSE REMEDY a) Replace meter Meter not reading a) Damaged or faulty PCB b) Damaged or jammed rotors b) Replace meter No display a) Flat battery a) Replace battery (Lithium CR2450) b) Damaged or faulty PCB b) Replace meter Meter not accurate a) Air in the oil a) Ensure the system is fully primed and air free...
  • Page 6: Specifications

    SPECIFICATIONS FLOW RATE  Up to 10LPM  OPERATING TEMPERATURE  ‐20 deg C to +70 deg C  OPERATING PRESSURE  20psi (Max 60psi)  ACCURACY  +/‐ 2% of reading  IP RATING  IP65  INLET CONNECTION  ½”inlet connector supplied  OUTLET CONNECTION  1/2"BSPP (F)  POWER  1 x CR2450  ‐ 3V Lithium Coin Battery  Im012eb_issue 1 © 2021 Page 5 of 8...
  • Page 7 Im012eb_issue 1 © 2021 Page 6 of 8...
  • Page 8 The WEEE Directive requires the recycling of waste electrical and electronic equipment in the European Union. Whilst the WEEE Directive does not apply to some of Macnaught’s products, we support its policy and ask you to be aware of how to dispose of this product.
  • Page 9 This product should be disposed of according to all applicable local and national government environment regulations and guidelines. For Warranty Terms and Conditions see macnaught.com.au For a list of Australian Service Centres see macnaught.com.au Im012eb_issue 1 © 2021 Page 8 of 8...
