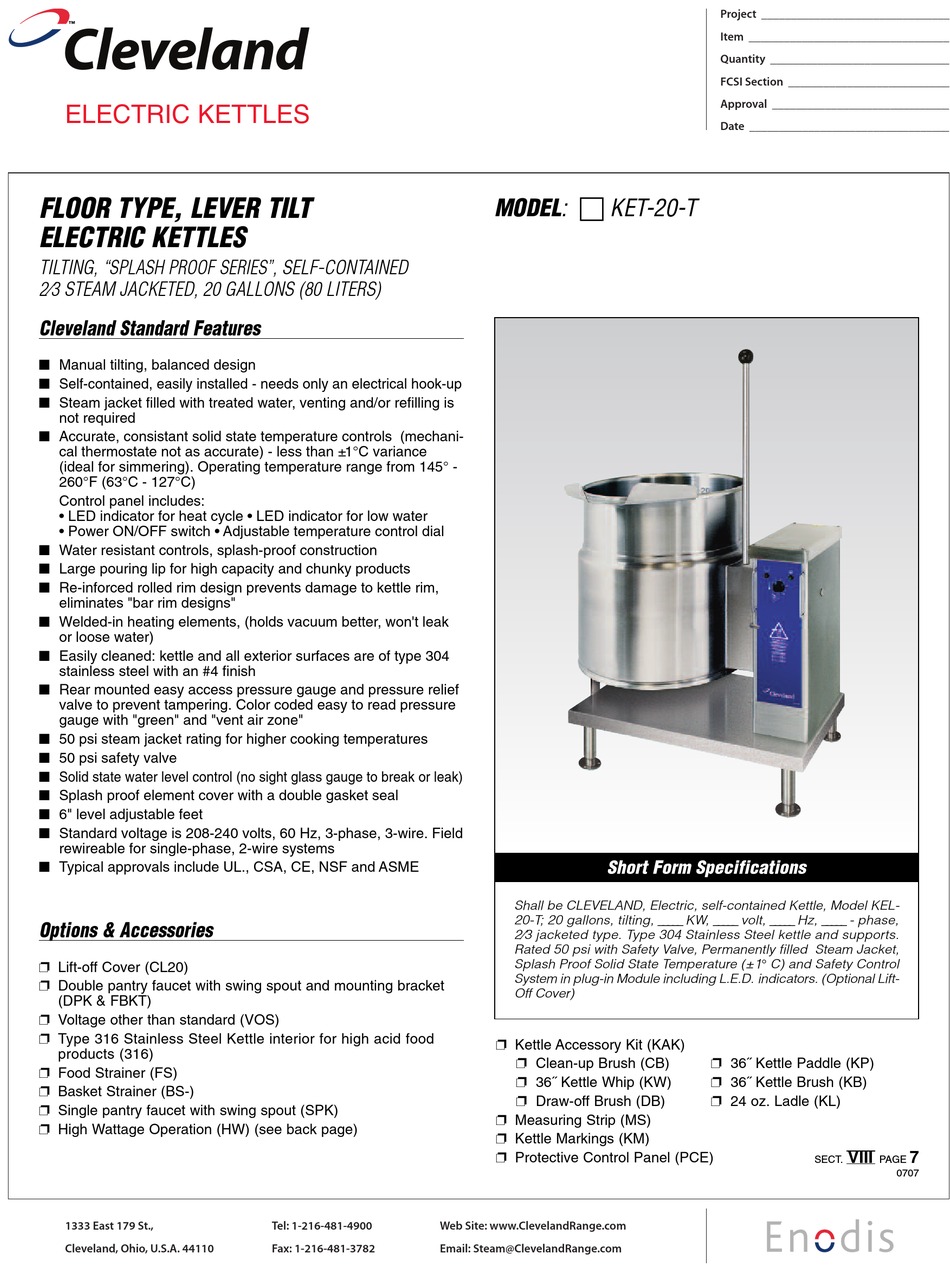

Cleveland KET-20-T Specification Sheet

™
Cleveland

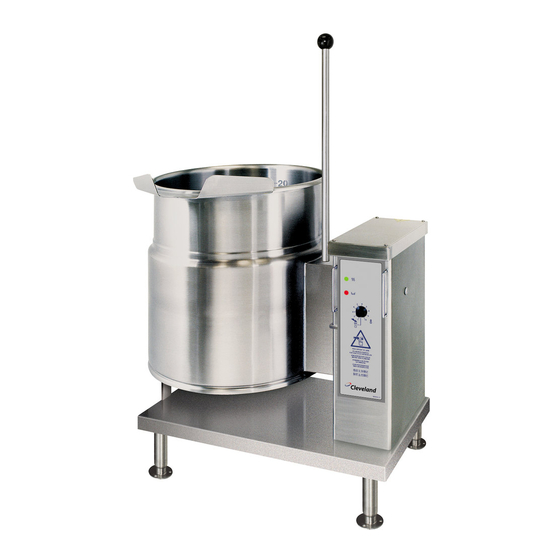

ELECTRIC KETTLES
FLOOR TYPE, LEVER TILT
ELECTRIC KETTLES
TILTING, "SPLASH PROOF SERIES", SELF-CONTAINED
2⁄3 STEAM JACKETED, 20 GALLONS (80 LITERS)
Cleveland Standard Features
I Manual tilting, balanced design
I Self-contained, easily installed - needs only an electrical hook-up
I Steam jacket filled with treated water, venting and/or refilling is
not required
I Accurate, consistant solid state temperature controls (mechani-
cal thermostate not as accurate) - less than ±1°C variance
(ideal for simmering). Operating temperature range from 145° -
260°F (63°C - 127°C)
Control panel includes:
• LED indicator for heat cycle • LED indicator for low water
• Power ON/OFF switch • Adjustable temperature control dial
I Water resistant controls, splash-proof construction
I Large pouring lip for high capacity and chunky products
I Re-inforced rolled rim design prevents damage to kettle rim,
eliminates "bar rim designs"
I Welded-in heating elements, (holds vacuum better, won't leak
or loose water)
I Easily cleaned: kettle and all exterior surfaces are of type 304
stainless steel with an #4 finish
I Rear mounted easy access pressure gauge and pressure relief
valve to prevent tampering. Color coded easy to read pressure
gauge with "green" and "vent air zone"
I 50 psi steam jacket rating for higher cooking temperatures
I 50 psi safety valve
I Solid state water level control (no sight glass gauge to break or leak)
I Splash proof element cover with a double gasket seal
I 6" level adjustable feet
I Standard voltage is 208-240 volts, 60 Hz, 3-phase, 3-wire. Field
rewireable for single-phase, 2-wire systems
I Typical approvals include UL., CSA, CE, NSF and ASME
Options & Accessories
Ë Lift-off Cover (CL20)
Ë Double pantry faucet with swing spout and mounting bracket
(DPK & FBKT)
Ë Voltage other than standard (VOS)
Ë Type 316 Stainless Steel Kettle interior for high acid food
products (316)
Ë Food Strainer (FS)
Ë Basket Strainer (BS-)
Ë Single pantry faucet with swing spout (SPK)
Ë High Wattage Operation (HW) (see back page)
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900 Web Site: www.ClevelandRange.com
Fax: 1-216-481-3782 Email: Steam@ClevelandRange.com
MODEL: KET-20-T
Short Form Specifications
Shall be CLEVELAND, Electric, self-contained Kettle, Model KEL-
20-T; 20 gallons, tilting, _____ KW, _____ volt, _____ Hz, _____ - phase,
2⁄3 jacketed type. Type 304 Stainless Steel kettle and supports.
Rated 50 psi with Safety Valve, Permanently filled Steam Jacket,
Splash Proof Solid State Temperature (±1° C) and Safety Control
System in plug-in Module including L.E.D. indicators. (Optional Lift-
Off Cover)
Ë Kettle Accessory Kit (KAK)
Ë Clean-up Brush (CB)
Ë 36˝ Kettle Whip (KW)
Ë Draw-off Brush (DB)
Ë Measuring Strip (MS)
Ë Kettle Markings (KM)
Ë Protective Control Panel (PCE)
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
Ë 36˝ Kettle Paddle (KP)
Ë 36˝ Kettle Brush (KB)
Ë 24 oz. Ladle (KL)
VIII
SECT. PAGE
7
0707
