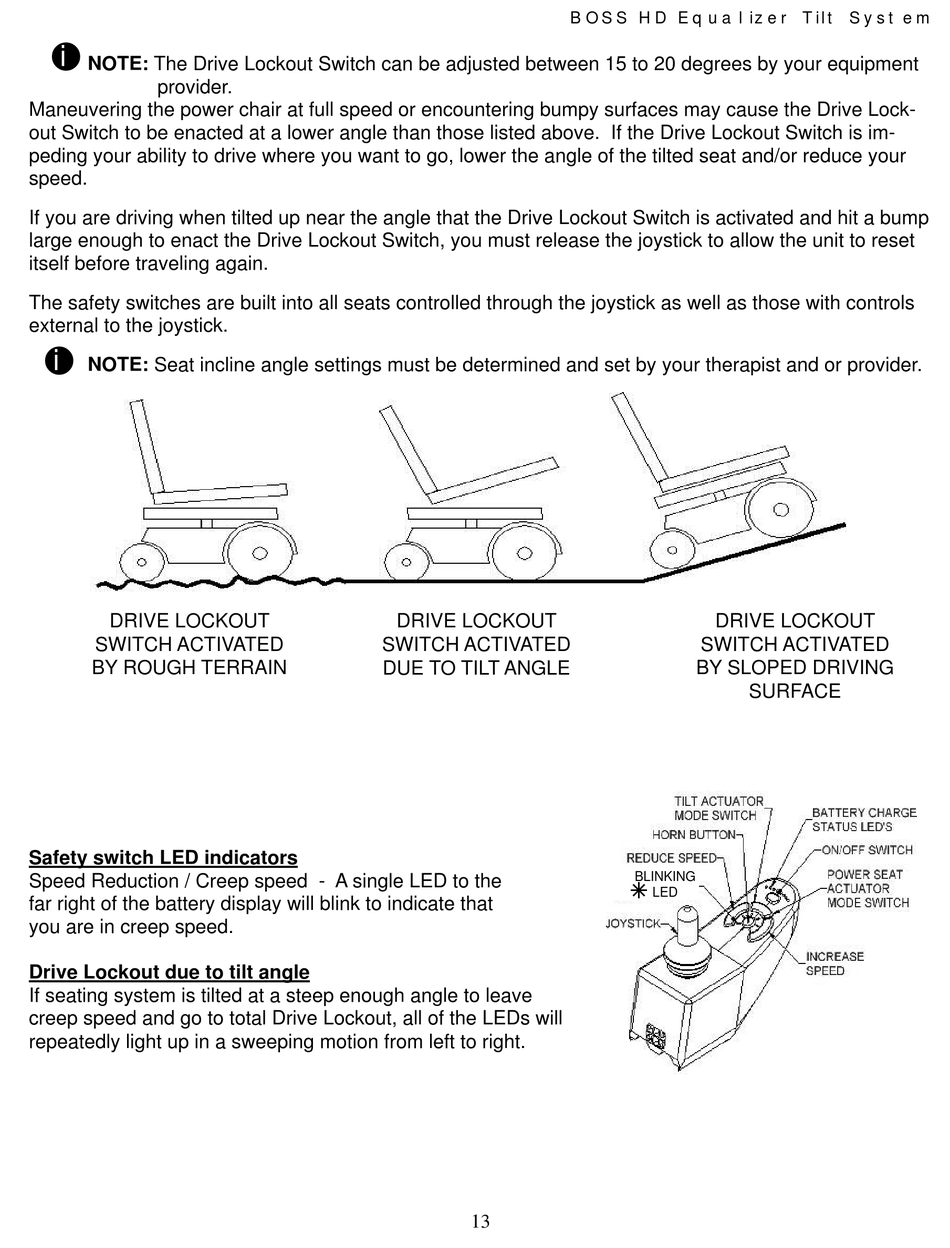

NOTE: The Drive Lockout Switch can be adjusted between 15 to 20 degrees by your equipment
provider.
Maneuvering the power chair at full speed or encountering bumpy surfaces may cause the Drive Lock-
out Switch to be enacted at a lower angle than those listed above. If the Drive Lockout Switch is im-
peding your ability to drive where you want to go, lower the angle of the tilted seat and/or reduce your
speed.
If you are driving when tilted up near the angle that the Drive Lockout Switch is activated and hit a bump
large enough to enact the Drive Lockout Switch, you must release the joystick to allow the unit to reset
itself before traveling again.
The safety switches are built into all seats controlled through the joystick as well as those with controls
external to the joystick.
i
NOTE: Seat incline angle settings must be determined and set by your therapist and or provider.
DRIVE LOCKOUT
SWITCH ACTIVATED
BY ROUGH TERRAIN
Safety switch LED indicators
Speed Reduction / Creep speed - A single LED to the
far right of the battery display will blink to indicate that
you are in creep speed.
Drive Lockout due to tilt angle
If seating system is tilted at a steep enough angle to leave
creep speed and go to total Drive Lockout, all of the LEDs will
repeatedly light up in a sweeping motion from left to right.
DRIVE LOCKOUT
SWITCH ACTIVATED
DUE TO TILT ANGLE
13
BOSS HD Equalizer Til t System
DRIVE LOCKOUT
SWITCH ACTIVATED
BY SLOPED DRIVING
BLINKING
LED
SURFACE
