BOSS HD Equalizer Til t System

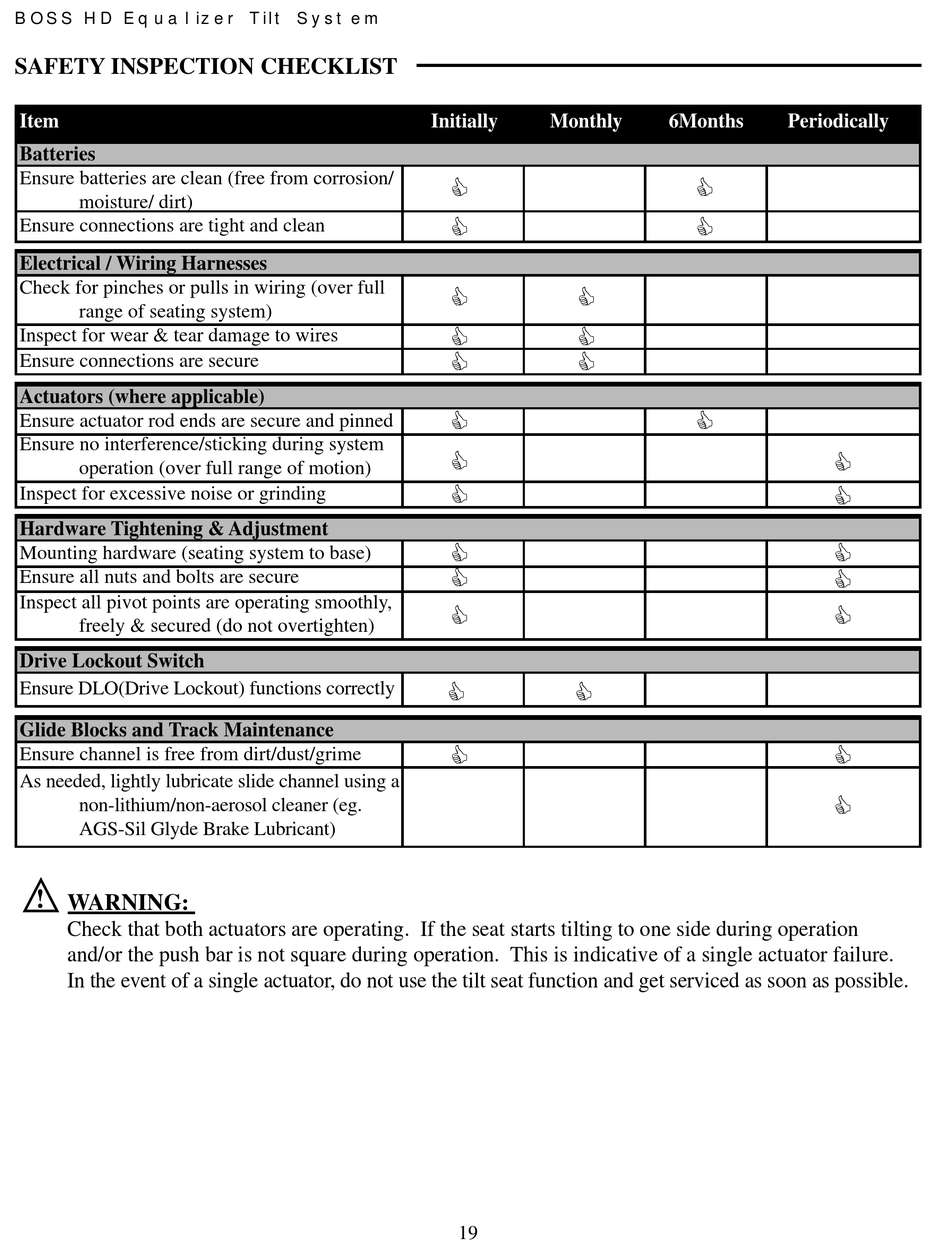

SAFETY INSPECTION CHECKLIST
Item
Batteries
Ensure batteries are clean (free from corrosion/
moisture/ dirt)
Ensure connections are tight and clean
Electrical / Wiring Harnesses
Check for pinches or pulls in wiring (over full
range of seating system)
Inspect for wear & tear damage to wires
Ensure connections are secure
Actuators (where applicable)
Ensure actuator rod ends are secure and pinned
Ensure no interference/sticking during system
operation (over full range of motion)
Inspect for excessive noise or grinding
Hardware Tightening & Adjustment
Mounting hardware (seating system to base)
Ensure all nuts and bolts are secure
Inspect all pivot points are operating smoothly,
freely & secured (do not overtighten)
Drive Lockout Switch
Ensure DLO(Drive Lockout) functions correctly
Glide Blocks and Track Maintenance
Ensure channel is free from dirt/dust/grime
As needed, lightly lubricate slide channel using a
non-lithium/non-aerosol cleaner (eg.
AGS-Sil Glyde Brake Lubricant)
!
WARNING:
Check that both actuators are operating. If the seat starts tilting to one side during operation
and/or the push bar is not square during operation. This is indicative of a single actuator failure.
In the event of a single actuator, do not use the tilt seat function and get serviced as soon as possible.
Initially
Monthly
19
6Months
Periodically
