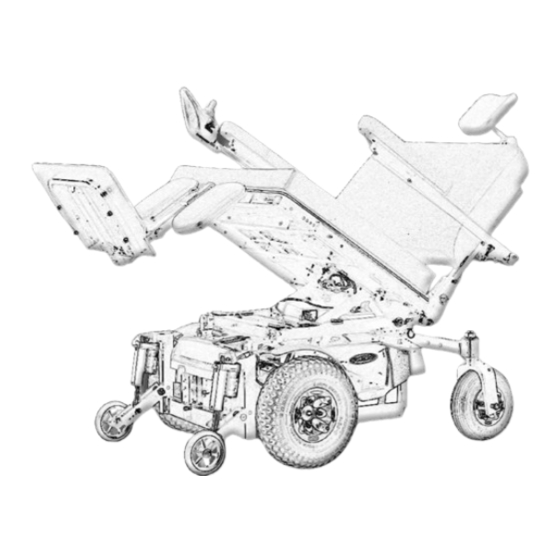

EQ UALIZER
BOSS HD
TILT SYSTEM
OWNER / OPERATOR
AND MAINTENANCE MANUAL
DEALER: THIS MANUAL MUST BE GIVEN TO
THE USER OF THE WHEELCHAIR.
Set Your Own Pace!
USER: BEFORE USING YOUR NEW EQUALIZER TILT SYSTEM,
READ THIS MANUAL
AND SAVE THIS MANUAL FOR FUTURE REFERENCE.
PN30578
Revised 0811
EQHDTiltOM_PN30578_0811.ind
Advertisement
Table of Contents
Related Manuals for Boss EQUALIZER
Summary of Contents for Boss EQUALIZER
- Page 1 AND MAINTENANCE MANUAL DEALER: THIS MANUAL MUST BE GIVEN TO THE USER OF THE WHEELCHAIR. Set Your Own Pace! USER: BEFORE USING YOUR NEW EQUALIZER TILT SYSTEM, READ THIS MANUAL AND SAVE THIS MANUAL FOR FUTURE REFERENCE. PN30578 Revised 0811...
- Page 2 BOSS HD Equalizer Til t System OWNERS MANUAL The BOSS HD Equalizer Tilt Seating System is an adjustable seating system that can be ordered from the factory with a few predetermined set up instructions requested by the equipment provider purchasing the equipment from Leisure-Lift. All decisions regarding the appropriate set up of the seating system, the power base, the programmable controller settings, and the stability rating of the fi...
- Page 3 & supplier to fi t the seating system to you and adjust the control settings for your level of function and ability. Before using the BOSS HD Equalizer Tilt System you and each person who may assist you should read this entire manual and make sure to follow all instructions. Review...
- Page 4 BOSS HD Equalizer Til t System WARNING! DO NOT OPERATE THIS EQUIPMENT WITHOUT FIRST READING AND UNDERSTANDING THIS MANUAL AND THE MANUAL PROVIDED WITH THE WHEELCHAIR. THIS MANUAL IS INTENDED AS A SUPPLEMENT TO THE IN-SERVICE TRAINING PROVIDED BY YOUR AUTHORIZED PROVIDER.
-
Page 5: Safety Summary
The BOSS HD Equalizer seating system has optional transport securement anchors intended for use with a six point strap system. Leisure-Lift requires that the rider be transferred from the power chair and secured to automotive type seating while being transported. -
Page 6: Operating Information
DO NOT use the BOSS Equalizer HD Tilt Seating System if it is not functioning correctly. DO NOT use the BOSS Equalizer HD Tilt Seating System in a manner that it was not designed for. DO NOT attempt to reach objects if you have to move forward in the seat. -
Page 7: Weight Training
If occupant uses said seating system/wheelchair as a weight training ap- paratus, Leisure-Lift shall NOT be liable for bodily injury and the warranty will be void. WEIGHT LIMITATION Wheelchairs equipped with the BOSS HD Equalizer Power Tilt have the following weight limitation: BOSS 4.5 400lbs. -
Page 8: Electromagnetic Interference
BOSS HD Equalizer Til t System EFFECTIVE DECEMBER 2, 1994 THE FEDERAL GOVERNMENT REQUIRES THIS STATEMENT TO BE INCLUDED. ELECTROMAGNETIC INTERFERENCE CAUTION: IT IS VERY IMPORTANT THAT YOU READ THIS INFORMATION REGARDING THE POSSIBLE EFFECTS OF ELECTROMAGNETIC INTERFERENCE ON YOUR POWERED WHEEL- CHAIR. - Page 9 BOSS HD Equalizer Til t System Powered Wheelchair Electromagnetic Interference (EMI) Because EM energy rapidly becomes more intense as one moves closer to the transmitting antenna (source), the EM fi elds from hand -held radio wave sources (transceivers are of special concern). It is possible to unintentionally bring high levels of EM energy very close to the powered wheelchair's control system while using these devices.
-
Page 10: Stability And Balance
The Boss HD Equalizer has a center of gravity shifting feature. This feature helps to keep your center of gravity in roughly the same area while you are using your tilt. Which improves the rearward stability when you are tilting back compared to a tilt seat that does not have this feature. - Page 11 BOSS HD Equalizer Til t System TRANSFERRING TO/FROM OTHER SEATS WARNING: BEFORE attempting to transfer in or out of the wheelchair, every precaution should be taken to reduce the gap distance. Always have assistance when you are being transferred. Make sure the power is turned off before transferring out of the wheelchair.
-
Page 12: Specifications
Seat depth adjustable 18” to 26” (45.72cm to 66.04cm) by 1” (2.54cm) increments. BOSS 4.5 / 6 / 6NS / 6.75 seat to fl oor with shortened seat post 17.25” (44cm). BOSS 4.5 / 6 / 6NS / 6.75 seat to fl oor with standard seat post 18.50” (47cm). - Page 13 BOSS HD Equalizer Til t System TILT CONTROLS The motion of the BOSS HD EQUALIZER tilt seating system is controlled in one of two ways. INTEGRAL SWITCHES - Some power chairs come equipped with an optional Joystick module that has integral switches built into it.
- Page 14 BOSS HD Equalizer Til t System NOTE: The Drive Lockout Switch can be adjusted between 15 to 20 degrees by your equipment provider. Maneuvering the power chair at full speed or encountering bumpy surfaces may cause the Drive Lock- out Switch to be enacted at a lower angle than those listed above.
- Page 15 BOSS HD Equalizer Til t System Joysticks with integral actuator controls Mode Button The controller has two modes of operation. One is called the “Drive Mode”. It is used to drive the chair. The second mode ON/OFF is the “Actuator Control Mode” used to power the Tilt and/or a Button secondary power option i.e.
-
Page 16: Set-Up Adjustments
BOSS HD Equalizer Til t System SETUP ADJUSTMENTS There are a number of set up adjustments only available to be performed by your authorized equipment provider. The following is a list of adjustments that can be made by the equipment owner or care giver. - Page 17 BOSS HD Equalizer Til t System Boss HD Equalizer Leg Support Adjustments Tools needed: 7/16” wrench a) Leg Support Length (Custom Lengths Available. For More Details Call 1-800-255-0285) The center tubes can telescope in and out to to change the overall length of the center column leg rest.
-
Page 18: Common Accessories
2. Checking fastener tightness The following fasteners on the Equalizer HD Tilt are intended to be hand tightened and therefore should be checked periodically and retighten if vibrations have caused them to loosen. a) Black plastic knobs on armrest supports b) The wing nuts used adjust the back angle. -
Page 19: Recommended Maintenance Schedule
RECOMMENDED MAINTENANCE SCHEDULE Daily/Weekly - Check that all buttons/toggles that operate your BOSS Equalizer HD Tilt System functions properly. - Charge the batteries, if reqiured, as described in the Powerbase/Wheelchair Owners Manual. - Clean the tilt system using a damp cloth with a mild soap. Ues a minimal amount of water. -
Page 20: Safety Inspection Checklist
BOSS HD Equalizer Til t System SAFETY INSPECTION CHECKLIST Item Initially Monthly 6Months Periodically Batteries Ensure batteries are clean (free from corrosion/ moisture/ dirt) Ensure connections are tight and clean Electrical / Wiring Harnesses Check for pinches or pulls in wiring (over full ... -
Page 21: Troubleshooting
BOSS HD Equalizer Til t System TROUBLE SHOOTING If you have having operational problems with your power chair equipped with the Equalizer, there are a few simple things you may want to have checked before contacting you equipment provider. 1. Low power or short run time. - Page 22 During the warranty period, Leisure-Lift, Inc. may, at its discretion, determine it is necessary to return the Equalizer Tilt System to the factory for repair. Leisure-Lift, Inc. will provide parts and labor, at our factory, free of charge for problems considered to be covered under our warranty. The cus- tomer is responsible for all freight charges if the Equalizer Tilt System is shipped to the factory.
- Page 23 Dear Friend: Thank you so much for your purchase of a PaceSaver BOSS HD Equalizer Tilt! We value your trust in us and we will do everything we can to keep you happy. You're in a special group now. Thousands of people before you have trusted Leisure-Lift to provide them with the highest quality mobility products avail- able.
