BOSS HD Equalizer Til t System
SETUP ADJUSTMENTS
There are a number of set up adjustments only available to be performed by your authorized
equipment provider. The following is a list of adjustments that can be made by the equipment
owner or care giver.

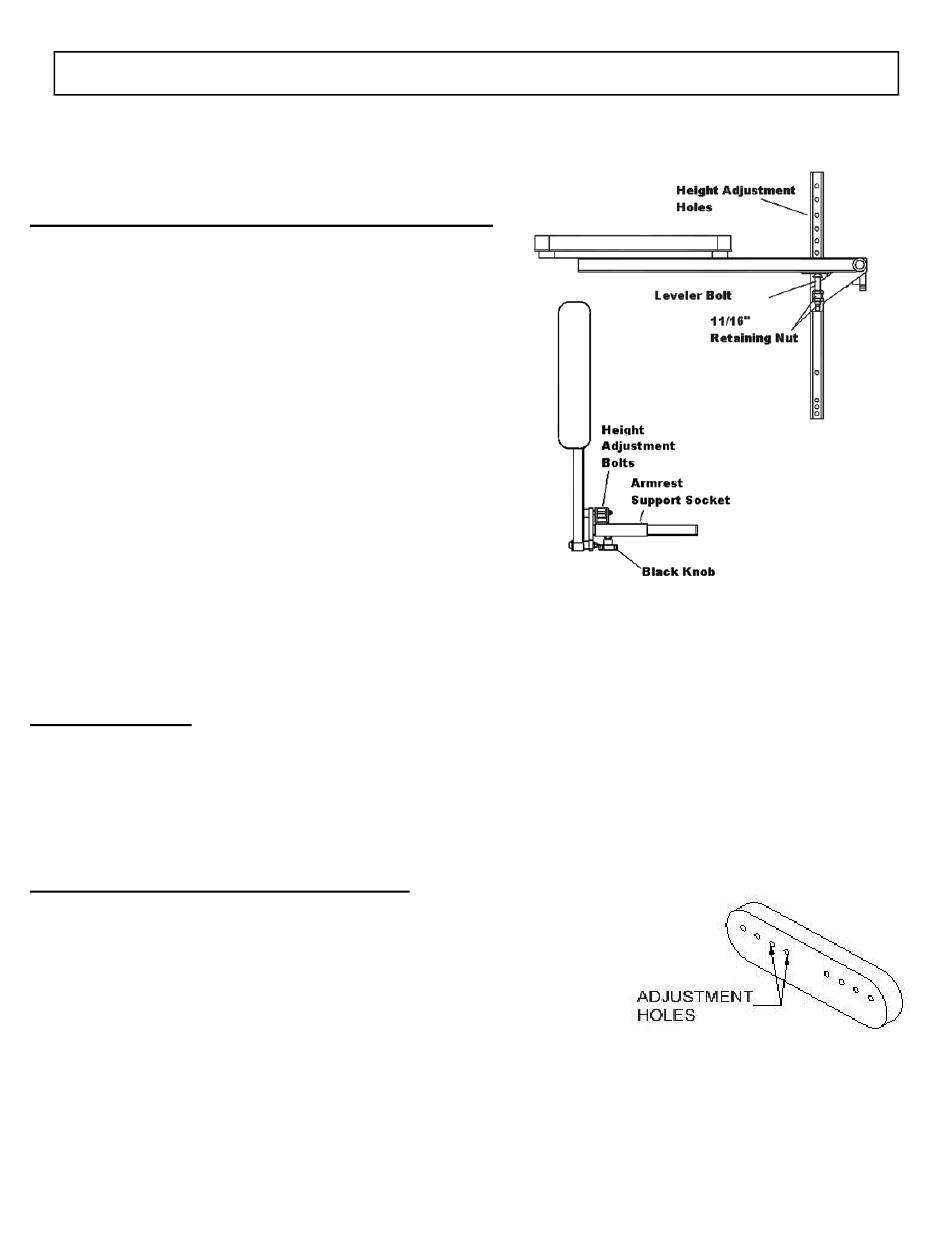

Boss HD Equalizer Armrest Support Adjustments
a) Armrest Removal
To remove the armrest, loosen the black knob by
turning it counterclockwise and then pull the armrest
out of the socket. If you are removing the armrest
on the joystick side, be sure to disconnect the
joystick cable before removing the armrest.
b) Armrest Height Adjustment
Remove the armrest (see step a). To adjust the
height of the arms, use an allen wrench and a
7/16" wrench to unbolt the armrest support bracket
from the back canes.
c) Armrest Angle Adjustment
To adjust the angle of the arm rest simply loosen the two nuts on the leveler bolt using 11/16" wrenches. t th l l b lt
Run the bottom nut down so that it is out of the way, and then use the top nut to set the leveler bolt at
the desired position. Then use the wrenches to tight both nuts together.
Joystick position
The joystick can be slid in close or further out from your arm pad after loosening the "L" shaped clamp
lever found under the arm pad. Slide the controller in or out and then tighten the clamp lever.
Other options available from your equipment provider are a "swing away" retractable controller mount
and a dual function mount that is easily adaptable for use by the rider or as an attendant control.
Armrest support & arm pad adjustments
Arm pad position - The arm pads come standard with a
number of extra t-nut mounting holes. These holes allow you
to move the pad forward or back. You may also turn the arm
pads inward to get them through doorways easier.
