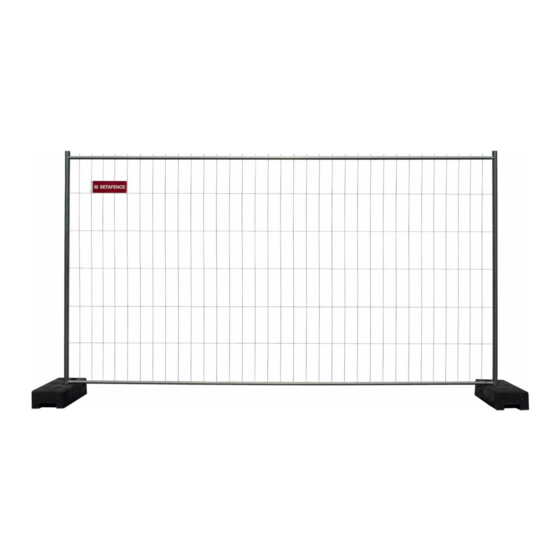

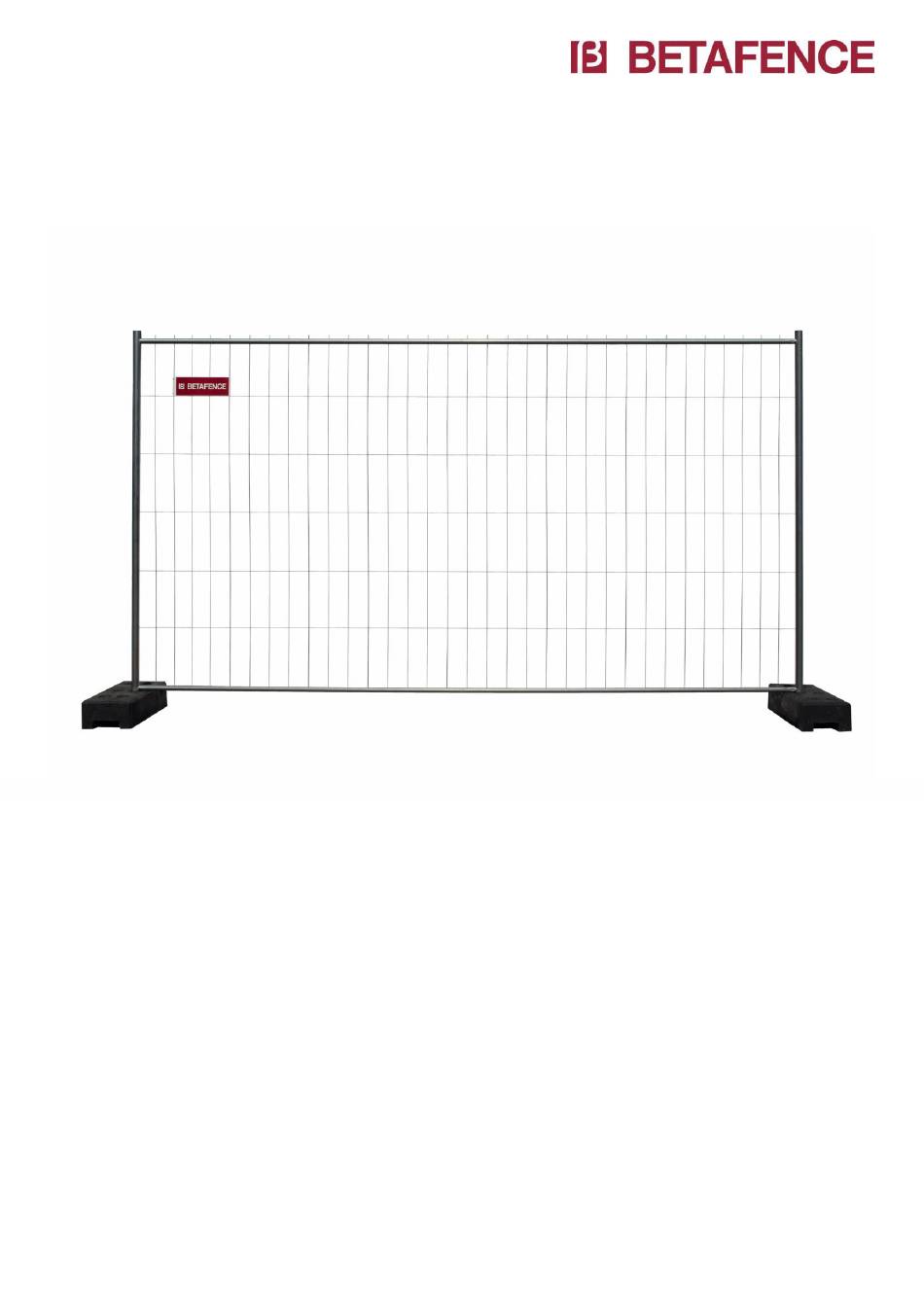

- Page 1 Mobile Fence Installation Manual...
- Page 2 1. Installation of fences Step 1 Bring the concrete or PVC base according to the panel width into position in a center to center distance of 3500 mm or 2200 mm. Step 2 Insert the mobile fencing panels into the central holes of the bases. In case you want to use the outer holes, braces must be used (see “Installation of braces”...
- Page 3 Move the ring at the bottom over the hinge post of the gate. Step 3 Insert the gate or mobile fence panel (for gates of 2200 or 3500 mm width) into the base and fix the ring with a bolt, so that the gate can swing smoothly without touching the ground.
- Page 4 4. With standard brace. Fixed to concrete with screw anchors. Step 1 After erecting the mobile fence panels, connect them with connectors and braces. Step 2 In case you want to use special braces for mobile fences with canvas covers, please put up to four concrete bases onto the base plate (see picture 2).
- Page 5 4. Installation of anti-lift devices Step 1 Our anti-lift device matches with all usual concrete or PVC bases. Put the hoop under the base and move it towards the fence’s tube. Afterwards fix the anti-lift device to the fence with a connector. 5.
- Page 6 5. Installation of barriers type C2 Step 1 Determine the installation direction by placing the first C2 panel with the eyes towards that direction. Step 2 Place the second C2 panel next to the first panel in a corner of 90°.
- Page 7 Betafence Gräsvägen 8B 448 36 Floda Tel.: +46 (0) 302 356 25 Fax: +46 (0) 708 26 17 71 anders.svanlund@betafence.com...
