Betafence E-LOX Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
E-LOX
®
Installation manual
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-LOX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Betafence E-LOX

Summary of Contents for Betafence E-LOX

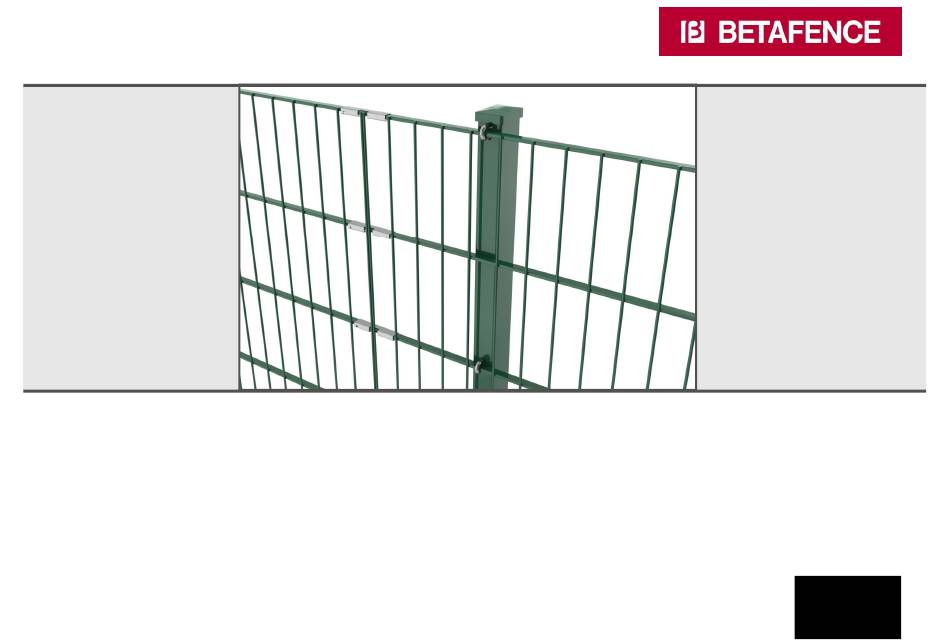

  • Page 1 E-LOX ® Installation manual...

  • Page 2: Table Of Contents

    0. Content Components of the fencing system The posts The panels The hooks The panel connectors The corner clamps Installation of E-LOX ® Foundations Install posts Install panels Special cases Maintenance 2 04/02/11 – E-LOX ® Installation Manual...
  • Page 3 1. Components of the fencing system 1. The posts 2. The panels 3. The hooks 4. The panel connectors 5. The corner clamps Installation of E-LOX ® Foundations Install posts Install panels Special cases Maintenance 3 04/02/11 – E-LOX ® Installation Manual...

  • Page 4: Components Of The Fencing System

    1. Components of the fencing system 1.1 The posts The section of the E-LOX ® post is always 60x40x2mm  The posts are foreseen of the appropriate holes for the fixation of  the panels. The holes are always through the post Types: the hole pattern is depending on the type of panel ...

  • Page 5: The Panels

    * Overall height of the fence can be different depending on the clearance below the panel (20 to 50 mm) ** Nylofor ® F panels are standard with overhangs when height > 1,6m 5 04/02/11 – E-LOX ® Installation Manual...

  • Page 6: The Hooks

    There are 2 types of hooks: A hook for Nylofor F and a hook for Nylofor 3D panels. The hooks are fixed with self-breaking nuts M8, in stainless steel NYLOFOR 3D NYLOFOR F 6 04/02/11 – E-LOX ® Installation Manual...

  • Page 7: The Panel Connectors

    There are 2 types of panel connectors: a connector clamp for Nylofor F and a connector clamp for Nylofor 3D. All in stainless steel — Two types of special tongues are available to fix the clamps in a proper NYLOFOR F NYLOFOR 3D 7 04/02/11 – E-LOX ® Installation Manual...
  • Page 8 Nylofor F, a special connector clamp for slopes is used. The same clamp is used with Nylofor 3D for all steps. Clamps are fixed with Mushroom Head Square Neck bolts (DIN603) M6x20, in stainless steel SLOPES ≠ 200mm 8 04/02/11 – E-LOX ® Installation Manual...

  • Page 9: The Corner Clamps

    1. Components of the fencing system 1.5 The corner clamps In case of a corner, corner clamps are needed  — The corner clamps are fixed with Mushroom Head Square Neck bolts (DIN603) M8x25, in stainless steel CORNERS 9 04/02/11 – E-LOX ® Installation Manual...
  • Page 10 Components of the fencing system The posts The panels The hooks The panel connectors The corner clamps 2. Installation of E-LOX ® 1. Foundations 2. Install posts 3. Install panels 4. Special cases Maintenance 10 04/02/11 – E-LOX ® Installation Manual...

  • Page 11: Installation Of E-Lox

    2. Installation of E-LOX ® 2.1 Foundations To obtain the best result, it is recommended to level the ground over the  whole length of the fence Align the fence line  At the beginning of the fence, the centre-centre distance of the posts should ...

  • Page 12: Install Posts

    2. Installation of E-LOX ® 2.2 Install posts Installation principle: when installing E-LOX ® , first  all the posts can be placed and then the panels can be attached ALIGNING THE POSTS Place a pin before the first post of the fence and ...

  • Page 13: Install Panels

    2. Installation of E-LOX ® 2.3 Install panels INSTALLING THE PANELS Fasten the top of the panels with a metal hook  Fix the panels together with the panel connection clamps  With Nylofor F, every horizontal wire should be fixed with a connection ...
  • Page 14 2. Installation of E-LOX ® 2.3 Install panels INSTALLING THE PANELS Completely fasten the panels with a hook through each hole in the post  Repeat these steps to complete the installation  14 04/02/11 – E-LOX ® Installation Manual...

  • Page 15: Special Cases

    2. Installation of E-LOX ® 2.4 Special cases INSTALLING CORNERS In case of a corner, special clamps are required. The last post will be  installed 200 to 400mm before the end of the last panel, so both panels can be fixed together in the corner with clamps.
  • Page 16 2. Installation of E-LOX ® 2.4 Special cases INSTALLING SLOPES WITH NYLOFOR F In case of a slope, steps of 200mm can be made easily. Every horizontal  wire can still be fixed with a connection clamp. Use a longer post where necessary.
  • Page 17 2. Installation of E-LOX ® 2.4 Special cases INSTALLING SLOPES WITH NYLOFOR 3D In case of a slope with Nylofor 3D, the noses of the panel are on a different  level. Therefore special connectors are necessary. 17 04/02/11 – E-LOX ®...

  • Page 18: Maintenance

    3. Maintenance All Betafence panels and posts are maintenance free but it is recommended  that the fence line would be checked every 4 months to make sure that all the connection screws are tightened and all the posts caps are in place. If...
