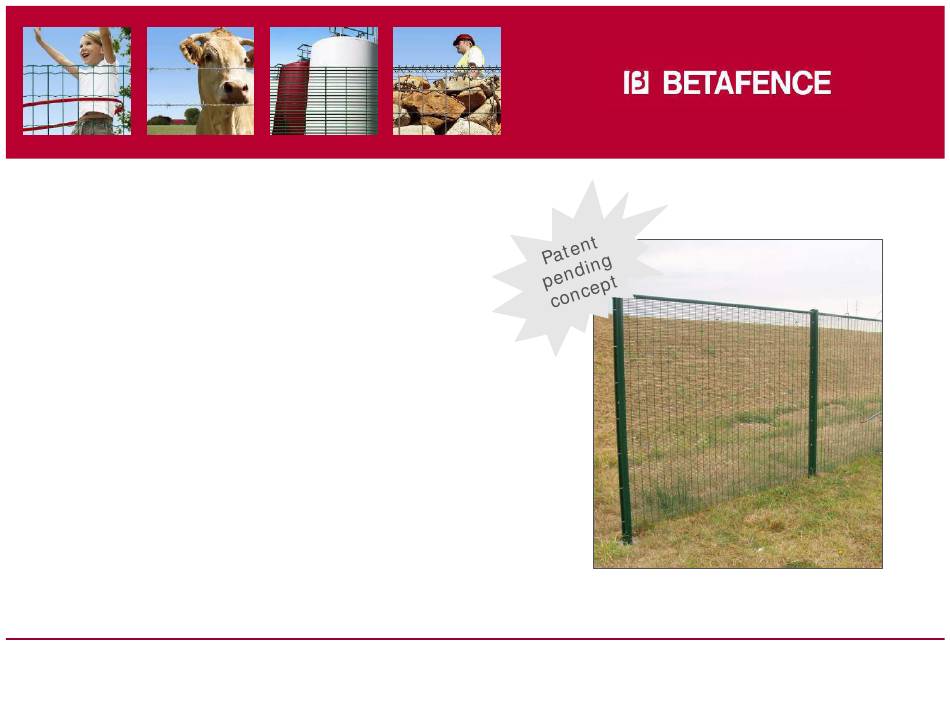

- Page 1 Securifor on Bekafix Super posts Installation manual Securing What Matters...
- Page 2 Securifor on Bekafix Super posts Installing the posts All posts are installed before attaching the panels! (This installation is with flat Securifor panels. For 2D &3D Securifor panels, new spider fixators are needed.) 1. Define interdistance with wooden template. Attach a fixator on every post to hold the template in position Center-center distance of posts =2545mm (+/- 2mm)
- Page 3 Securifor on Bekafix Super posts Installing the panels 1. The panel should be bowed slightly to fit between the posts Spider fixators are fixed with Mushroom Head Squareneck bolts M6 (DIN 603) with washer and self-breaking nut 2. Fix the panel with 2 fixators to the first post 3 datum - titel...
- Page 4 Securifor on Bekafix Super posts Installing the panels 3. Fix the panel with 2 fixators to the second post. Put a spider fixator at only one side of the post (at the side of the panel) 4. Attach all the fixators on the first post 5.
- Page 5 Securifor on Bekafix Super posts Installing the panels 8. Align the panel and fix all the fixators on the second post (take away the middle fixator) 9. Repeat these steps to install all the panels 5 datum - titel...
- Page 6 Securifor on Bekafix Super posts Remarks → For the installation of flat Securifor on Bekafix Super posts, the installer can drill an extra hole on top of the post to be able to fix an extra fixator, to avoid folding the top of the panel →...
- Page 7 Securifor on Bekafix Super posts Remarks To get a higher rigidity of the panel, it is advised to also add a fixation at the bottom. There are 3 possible ways: 1. A short H-profile that’s sliding over a concrete plate and can be fixed to the Securifor panel (fixed with bolt M8x25 DIN603, washer and self-breaking nut M8) 2.
