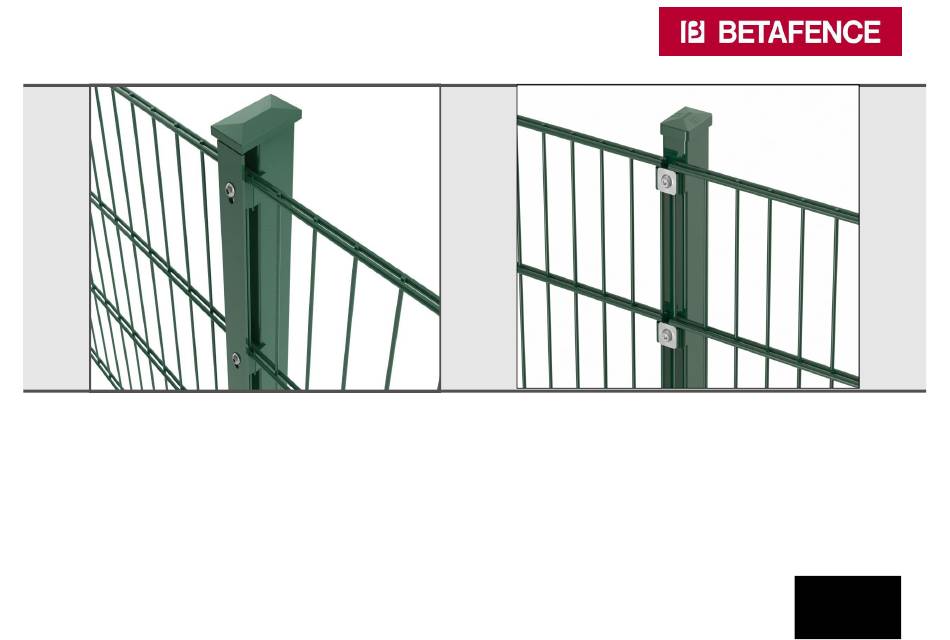

  • Page 1 O-LOX Installation manual...

  • Page 2: Table Of Contents

    0. Content Components of the fencing system The posts The panels The cover plates The corner clamps Installation of O-LOX Foundations Install posts Install panels Special cases Maintenance 2 10/02/11 – O-LOX Installation Manual...
  • Page 3 1. Components of the fencing system 1. The posts 2. The panels 3. The cover plates 4. The corner clamps Installation of O-LOX Foundations Install posts Install panels Special cases Maintenance 3 10/02/11 – O-LOX Installation Manual...

  • Page 4: Components Of The Fencing System

    1. Components of the fencing system 1.1 The posts The section of the O-LOX post is 60x40x1,5mm or 60x40x2mm,  depending on the height of the fence The posts are foreseen of holes every 200/400mm. PA clamps  to support the panels are fixed to the posts with inserts M8 Posts can be covered with a post cap with or without overhang ...

  • Page 5: The Panels

    1. Components of the fencing system 1.2 The panels O-LOX posts can be installed with Nylofor 2D and Nylofor 2D Super panels.  This is the standard range of posts & panels: Height of the fence Post profile (mm) Length of the posts...
  • Page 6 1. Components of the fencing system 1.3 The cover plates (option 1) O-LOX posts are installed with steel flat cover plates 40x4mm  — The cover plates are fixed with Hexagon Socket Button Head screws (ISO7380) M8x40, in stainless steel...
  • Page 7 1. Components of the fencing system 1.3 The cover plates (option 2) O-LOX posts can also be installed with stainless steel fixing plates 30x30  mm M8 — The stainless steel fixing plates are fixed with Hexagon Socket Button Head screws (ISO7380) M8x40, in stainless steel...
  • Page 8 1. Components of the fencing system 1.3 The cover plates (option 3) O-LOX posts can also be installed with butterfly fixators  — The butterfly fixators are fixed with Hexagon Socket Button Head screws (ISO7380) M8x40, in stainless steel 8 10/02/11 – O-LOX Installation Manual...
  • Page 9 1. Components of the fencing system 1.4 The corner clamps In case of a corner, corner clamps are used  — The corner clamps are fixed with Mushroom Head Square Neck bolts (DIN603) M8x25, in stainless steel 9 10/02/11 – O-LOX Installation Manual...

  • Page 10: The Cover Plates

    Components of the fencing system The posts The panels The cover plates The corner clamps 2. Installation of O-LOX 1. Foundations 2. Install posts 3. Install panels 4. Special cases Maintenance 10 10/02/11 – O-LOX Installation Manual...

  • Page 11: Installation Of O-Lox

    (concrete quality directive B30) In case of instant installation the post needs to be supported as long as  necessary +6/-6mm 2520 11 10/02/11 – O-LOX Installation Manual...

  • Page 12: Install Posts

    2. Installation of O-LOX 2.2 Install posts Installation principle: when installing O-LOX, first  all the posts can be placed and then the panels can be attached ALIGNING THE POSTS Place a pin before the first post of the fence and ...
  • Page 13 Install the posts so that the clearance between panel and floor is 50mm  While the post is installed, make sure no water can stay inside the post. If  the ground is impermeable, provide a drain hole on site. 13 10/02/11 – O-LOX Installation Manual...
  • Page 14 Always put two panels on the clamps  Use a cover plate or the fixing plates, to fasten the panel, first install a bolt  at top and bottom When perfectly aligned, fix the other bolts  14 10/02/11 – O-LOX Installation Manual...

  • Page 15: Special Cases

    2. Installation of O-LOX 2.4 Special cases INSTALLING CORNERS For corners, use two posts that are placed around 200mm outside the  corner. Connect the panels with corner clamps. 15 10/02/11 – O-LOX Installation Manual...
  • Page 16 Take a second panel and install it to the front of the post with the required  height difference Fix both panels to the post with the cover plate or the fixing plates  16 10/02/11 – O-LOX Installation Manual...

  • Page 17: Maintenance

    3. Maintenance All Betafence panels and posts are maintenance free but it is recommended  that the fence line would be checked every 4 months to make sure that all the connection screws are tightened and all the posts caps are in place. If...
