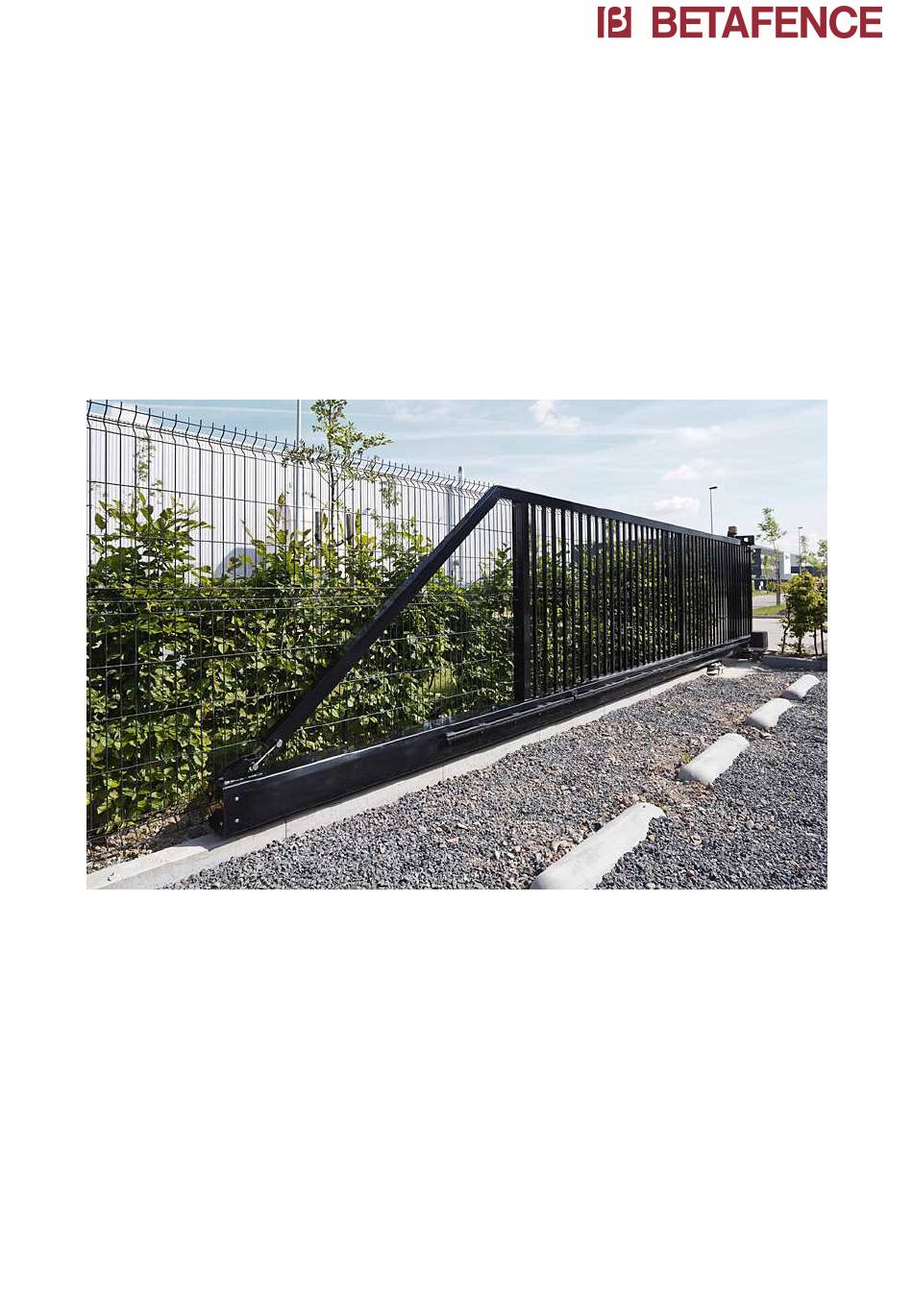

- Page 1 Cantilever sliding gates Robusta SC Installation Manual Robusta SC...
-
Page 2: Table Of Contents
Installation of the support roll: ......... 24 Adjustment of the mechanical stops: ........26 5.1. Adjustment of the front mechanical end buffering: ....26 5.2. Adjustment of the rear mechanical end buffer: ....... 27 Motor height Adjustment: ..........28 Power Supply: ..............30 Robusta SC... - Page 3 Photocells: ..............36 9.4. Remote controls: ............36 9.4.1. Programming Remote control devices to the receiver: ..36 9.4.2. Programming a transmitter to another transmitter: ..37 Overview motorization: ........... 38 Maintenance: ..............39 CE labeling: ..............40 Robusta SC...
-
Page 4: Warnings
This gate should only be used for that what it has been expressly designed for (the complete system). Any other use breaching this, should be considered improper and therefore dangerous. Betafence cannot be held responsible for eventual damage caused by improper, incorrect and unreasonable use. - Page 5 Do not climb onto the wing Inform all users of these hazards. Ideally this information should be displayed at a suitable place either on or close to the gate. To guarantee the efficiency of the installation and its correct functioning, Robusta SC...
-
Page 6: Safety Rules For End User
Under the yearly maintenance it is understood that the maintenance that is described by the manufacturer has been followed. If a maintenance contract between the customer and Betafence exists, Betafence will carry of this maintenance in cooperation with the user. -
Page 7: Parts Of The Gates
- 1 wing with tension system - 1 support roll (if free passage > 5 m) - Accessories (screws, nuts, limit switch, …) are separately packed in a bag - Key of the lock is stuck on the gate (see picture) Robusta SC... -
Page 8: Optional Motorization
Lock post not in line and without lock. - Manual version: o Manuel execution without dental rack. o Lock post in line and with lock and catcher. Important: For all the automatic and motorizable version. Motor is always mounted at the inside of the gate. Robusta SC... -
Page 9: Guidelines For Installation And Gate Lifting
Lift-up points for the unloading and positioning during the Installation. The gate may only be lifted with the right equipment for manipulation and sufficient dimensioned for the weight. By preference use a type flexible lift ropes with sufficient lifting capacity. Lifting points Robusta SC... -
Page 10: Installation
Quality of the concrete C25 = cubic pressure resistance 25N/mm. WARNING: THE FOUNDATION PLANS ON THE FOLLOWING PAGES ARE ONLY DELIVERED AS AN EXAMPLE! ALWAYS USE THE PLANS PROVIDED WITH THE ORDER DOCUMENT Robusta SC... -
Page 11: Automatic Version Right Opening
4.1.1. Automatic version right opening: Robusta SC... -
Page 12: Automatic Version Left Opening
4.1.2. Automatic version left opening: Robusta SC... -
Page 13: Motorizable Version Right Opening
4.1.3. Motorizable version right opening: Robusta SC... -
Page 14: Motorizable Version Left Opening
4.1.4. Motorizable version left opening: Robusta SC... -
Page 15: Manuel Version Right Opening
4.1.5. Manuel version right opening: Robusta SC... -
Page 16: Manuel Version Left Opening
4.1.6. Manuel version left opening: Robusta SC... -
Page 17: Preparations Before Gate Installation
Chemical anchors M16 (minimum 100mm above Finished Ground Level. For anchor depth check installation manual of supplier chemical resin). Betafence does not deliver the chemical anchors. 3) Mark the position of the holes with a small diameter concrete drill, his will help to central the final drill. -
Page 18: Preparing Of The Installation Levels
Robusta SC... -
Page 19: Positioning Of The Gate And Posts On The Ground Anchors
6) For release the rear guiding wheels have we two possibilities: Cut off the straps which fix the rear guiding wheels to the under beam. Unscrew the nuts that fix the Alu profile from the both guiding wheels. Remove the profile and fix the nuts again. Robusta SC... - Page 20 Ensure that cables and wires are not crushed between surfaces while lowering and positioning the gate onto the ground anchors. 8) If you have a double wing sliding gate, please repeat all steps of point 4.3 and 4.4 for to install the 2nd gate. Robusta SC...
-
Page 21: Positioning Of The End Post Onto The Ground Anchors
This will protect them against water and will facilitate the uninstalling (replacement) of photocells. 3) Position the lock post onto the ground anchors and install the upper washers with nuts. Tighten the nuts slightly for temporary fixation. Robusta SC... -
Page 22: Alignment And Leveling Of The Gate
6) Check if the gate moves easy by hand over the complete route of the wing during opening and closing. Do this in slow motion as not all adjustments are done. Robusta SC... -
Page 23: Installation Of The Lock Post Onto The Ground Anchors
Put a level in the middle between these sets of guiding wheels. If necessary bring to horizontal position by lowering or raising the rear guiding wheels support by means of the nuts of the ground anchors. 7) Make sure to preserve the horizontal level of the base plate. Robusta SC... -
Page 24: Installation Of The Support Roll
1) Correct adjustment of this roll is indispensable for a good functioning of the Robusta® cantilever-sliding gate. The adjustment is required as well for the correct height of the support roll as for the perpendicular of the support roll towards the under beam of the wing. Robusta SC... - Page 25 4) When you have the correctly height. Then tighten we all the M10 nuts for a good fixation of the support roll. Important remark: Do not adjust the tensioning system! Remarks: It’s very important to fill the space under the plate of the Guiding and lock post with shrinkage-compensated Robusta SC...
-
Page 26: Adjustment Of The Mechanical Stops
1) Remove the lower part of the safety pressure strip from its aluminum fixation profile. 2) Remove the front cover plate from the under beam by unscrewing the 4 screws on the front of the underbeam.(two on both sides). Robusta SC... -
Page 27: Adjustment Of The Rear Mechanical End Buffer
Therefore, we strongly advise, always adhere to the dimensions laid down in the foundation plans. 1) Remove the rear cover plate from the under beam by unscrewing the 4 screws (2 on each side). Robusta SC... -
Page 28: Motor Height Adjustment
6. Motor height Adjustment: 1) Place the wing into the position where it is being supported by both the front and rear roller assemblies. Push the lever operated release system(see picture) into the motor. The motor is blocked the wing now. Robusta SC... - Page 29 5) Move the wing over the complete length of movement observing the dental wheel and rack. Should meshing problems occur in certain positions, these can be regulated by either moving the dental rack up or down on the under- beam (oblong holes). Robusta SC...
-
Page 30: Power Supply
In the meantime can you also do this with the other cables. Connect the power to the correct connector. Very important: You must make a bridge with earth wire between connector J7(PE) and this screw on the motor (see picture). Robusta SC... - Page 31 Section (mm Maximum distance (m) WARNING: THE CABLE DIAMETER CALCULATIONS ARE BASED ON OUR GATE WITH ALL OUR POSSIBLE ACCESSORIES. IF YOU ARE CONNECTING MORE CONSUMERS TO IT, IT MAY BE NECESSARY TO USE A BIGGER CROSS- SECTION. Robusta SC...
-
Page 32: Set-Up Of The End Position
Fix the limit switch on the dental rack before FC1. Led FC1 goes out. When you close the gate in manual mode in the correctly position: Fix the limit switch on the dental rack before FC2. Led FC2 goes out. Robusta SC... -
Page 33: Adjustment And Testing Of Safety Equipment
You can connect on input 1 also an optical safety edge. • Wiring to FAAC control board 780D equipped at input 6 SAFE on connector J1. This is in combination with contact from CN60E module. RECEIVER RB3 R868: Robusta SC... - Page 34 TRANSMITTER RB3 T868: Important: To ensure a correct function of the system, the batteries must be renewed on a yearly basis. Robusta SC...
-
Page 35: Safety Strips
With two safety strips on the guiding post: Check if all safety strips are functioning Two or four safety strips are connected to CN60E module. CN60E is connected to the “safe” input on the control board 780D(input 6). Robusta SC... -
Page 36: Photocells
Take your 2-channel transmitter and push and hold both buttons(1 and 2) until the led on the top of the transmitter starts to flash. Release both buttons. - Now press the button on your transmitter that you want to program and keep it on. Robusta SC... -
Page 37: Programming A Transmitter To Another Transmitter
When the LED on the Master stays on, release both buttons. Finally push the programmed button on the second transmitter twice in quick succession. LED DL11 on the controller illuminates. If this happens the programming was successful. Robusta SC... -
Page 38: Overview Motorization
“dead man” or R2000 more than 6m free passage. Safety strips mounted on the guiding post - two safety strips with single post. - four safety strips with single post and cabinet. Two strips on post and two strips on cabinet Robusta SC... -
Page 39: Maintenance
Damage of the coating shall only be repaired with a PU-paint and shall be done by a professional. Check the batteries from the wireless system Check the oil in the motor: only use the FAAC oil XD 220 Robusta SC... -
Page 40: Ce Labeling
12. CE labeling: A CE label from Betafence guarantees the gate has been produced following the CE Regulations as specified in the EU Construction Products Regulation (N° 305/2011 and (2006-42-CE). A specific Declaration of Performance (DoP) is available for this gate with number DoP-Beta-0xx(written on the CE label).
