Summary of Contents for Betafence HoriZen Prime

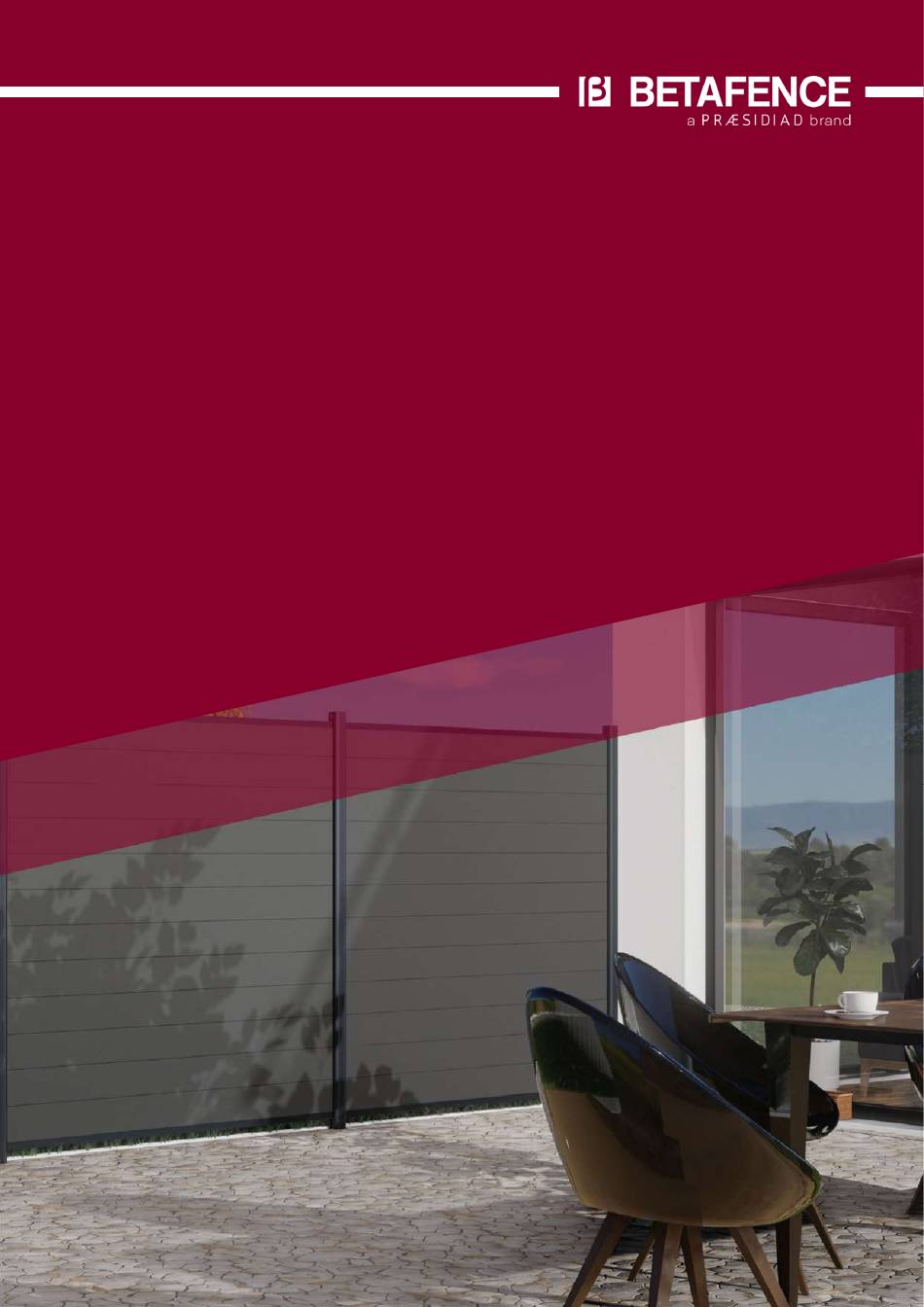

- Page 1 INSTALLATION MANUAL HoriZen ® Prime HoriZen system: fence elements, posts and mounting accessories.
- Page 3 You also made a good choice for the environment as it contains 98% recycled materials HoriZen Prime is flexible and offers a wide range of options to create a fence to meets achieve the look you require. The tongue and groove profiles of HoriZen Prime System can be interchanged or replaced by decorative profiles in stainless steel.
- Page 4 HoriZen Prime Safety instructions, useful information, tools, dimensions HoriZen Prime WPC HoriZen posts & accessories HoriZen decorative profiles We also offer a HoriZen swing gate. (a separate installation manual is available for the swing gate) HoriZen ®...
-
Page 5: Safety Instructions And Tips
The assembly of all HoriZen construction elements must only be carried out with the appropriate and proven HoriZen components Drill with the indicated diameter. from Betafence and as described in the current assembly instructions at the time of assembly. Element can be shortened or must be shortened to the indicated size. - Page 6 Silicone gun insulation and fire protection lies with the planners and the professionals involved. NOTE: The Betafence panels and screening systems are not approved or authorized to be used as balustrades. HoriZen ®...
- Page 7 All HoriZen Prime elements and components for the combination with HoriZen aluminum posts HoriZen Prime WPC CLASSIC Anthracite and brown including top and bottom profiles in anthracite. HoriZen Prime Dekorative profiles (15 cm high). The Dekorative profiles in Stainless steel can replace certain WPC profiles.
- Page 8 HoriZen aluminum posts and accessories HoriZen Aluminium posts in RAL 7016 S (anthracite) and post caps. An overview of the size indications of installation widths and possible combinations of panels and accessories is on page 10. Installation with Installation in Post section x length floor plate...
-
Page 9: Basic Principles
(indicated in mm) Combinations of the panel-series - heights of the panel elements All elements of the HoriZen Prime panels can be freely combined with each other. As the panel height is not always the same, it is best to align the top of the panels at the same height in order to obtain a visually uniform appearance. - Page 10 HoriZen Prime ≥ 3 cm Assembly sequence Panels can be shortened on site. First fit the spacer (use only at the bottom) into the post groove and then insert the Tip: Desired axis size minus 17 mm for WPC start profile (1) and centre it.
- Page 11 Fence heights Amount of Space between Post Height Post Height boards [mm] Fence height ground and Bottom profile Top profile (in concrete) (with floorplate) (one board = [mm] bottom profile [mm] [mm] [mm] [mm] 150mm height) [mm] 1200 1350 1500 1030 1145 1650...
- Page 12 Decorative profiles Classic or Modern 1. Adapter profile 2. Decorative profile and panel element Shorten the decorative adapter profile to the panel width (1783 mm) ; adapter profile : always : board length + 3 mm Important for all HoriZen fencing: ...
- Page 13 Proud to be a PRÆSIDIAD brand, Betafence is part of a global network, working alongside Guardiar and Hesco as leaders in perimeter security systems and solutions. For more information, please visit praesidiad.com betafence.com/contact May 2021...
