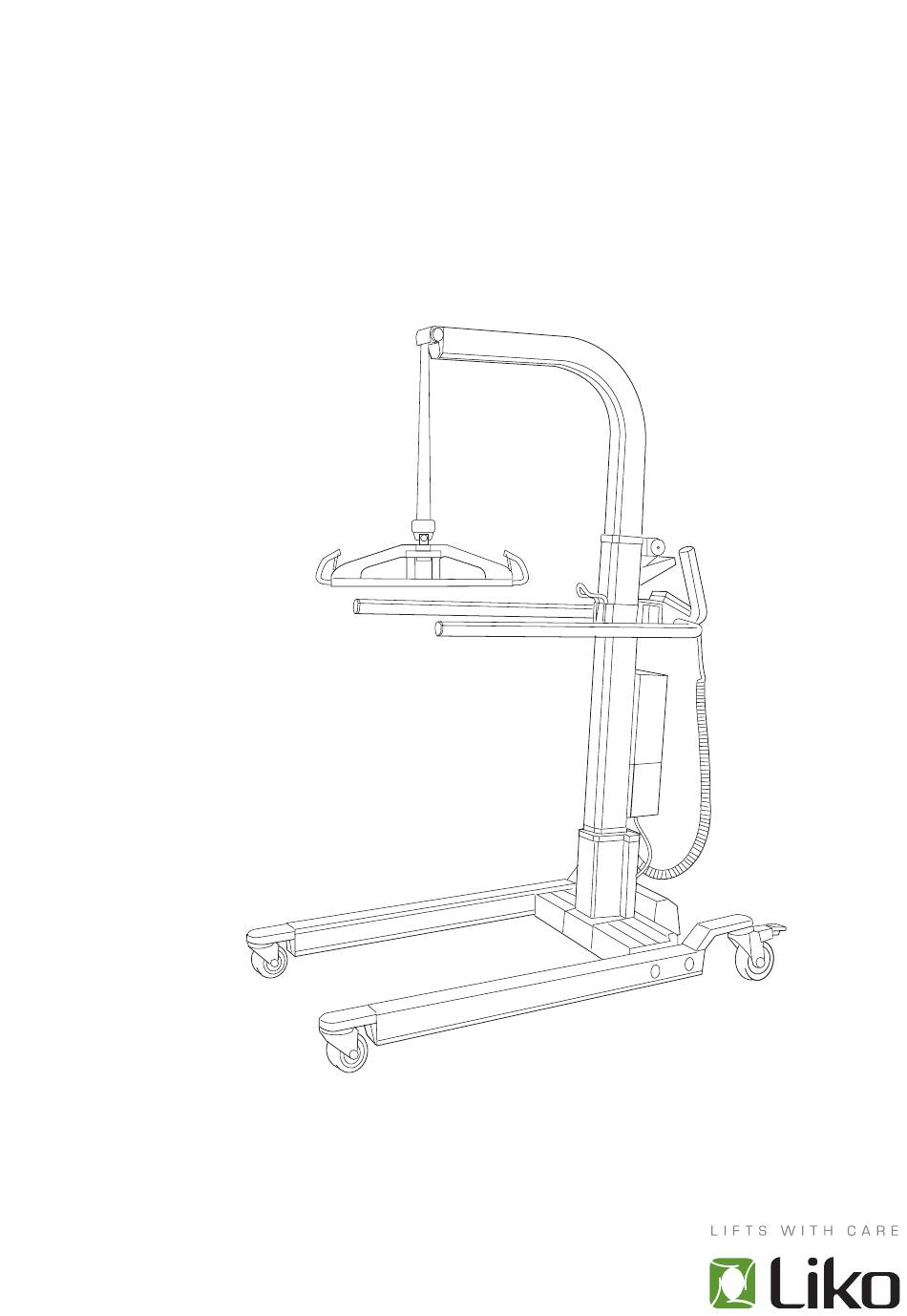

- Page 1 Golvo Preventative Maintenance English 3EN401101-04 2007-04-26 Art.nr: 2000009, 2000010 Proj: 632...
-
Page 2: Table Of Contents
Table of contents R ef.no. Page Table of contents ................2 Checklist Preventative Maintenance ..........3 Positions ..................... 4 Surface treatment ..........1 ......5 Front castors............2 ......6 Front fork ............3 ......7 Rear castors ............4 ......8 Middle beam ............5a ......9 Base opening and closing linkage .....5b ...... - Page 3 Golvo 7000/7007 ES Preventative Maintenance 3EN401101-04 2007-04-26 Customer Reference: Contract No: Lift type: Name: Serial No: Address: Version: Prod. Year: (Zip Code) Check points: Base Month 12 24 36 48 60 72 84 96 108 120 Surface treatment ............. Front castors .............
- Page 4 Check points www.liko.com...
-
Page 5: Surface Treatment
2. Visually inspect the base for middlebeam scratches or gauges, external damage or wear to the legs. If needed, clean the patient lift with warm water or ethanol. Warning! Do not use chemicals containing phenol or chlorine, since the aluminium parts may be damaged. 1. (b) Visually inspect the mast for external damage or wear. If needed, clean the patient lift with warm water or ethanol. Warning! Do not use chemicals containing phenol or chlorine, since the aluminium parts may be damaged. www.liko.com... -
Page 6: Front Castors
Re-assemble in reverse order. every 4th year. 16mm From s/n 7024206/7729722: 1. If wheels are worn or do not roll smoothly, replace them. Recommended replacement is every 4th year. 3A&B. Front castors needs to be changed every 4th year. www.liko.com © Copyright Liko AB www.liko.com... -
Page 7: Front Fork
84 96 108 120 Address: Replace: Check: (Zip Code) Tools required Recommended replacement on: s/n up to 7022822 (Golvo 7000ES) s/n up to 7725639 (Golvo 7007ES) 2. Reuse wheels. 3. Replace with new front fork. Front fork needs to be changed every 5th year. www.liko.com... -
Page 8: Rear Castors
Bakhjul 75 mm Doc. no: 3SE630221-01 2005-11-18 From s/n 7024206/7729722: Backside: Tools required 1. If wheels are worn or do not roll smoothly, replace them. Recommended replacement is every 5th year. 3A&B. Rear castors needs to be changed every 5th year. www.liko.com... -
Page 9: Middle Beam
3. Verify the stop screw is tight and the nut is in Verify that the stop screw engages the correct orientation. The flat of the hex must be with gear rack and is tight. positioned parallel with the end of the gear rack. www.liko.com... -
Page 10: Base Opening And Closing Linkage
The play should not exceed Remove base motor attachment screw. 3.5 cm (1.38 inch). If the play is more than 3.5 cm (1.38) inch replace friction plates according to step 6. 3. Remove base motor from middle beam. 4. Remove middlebeam from legs. www.liko.com... - Page 11 Verify the stop screw is tight and the nut is Verify the stop screw is tight and the nut is lubricate with PTFE grease. Reassemble middle beam. in the correct orientation. The flat of the hex must be positioned parallel with the end of the gear rack. www.liko.com...
- Page 12 - Slide middlebeam inserts in until the gear rack After the upper and lower gear rack engage with touches the drive shaft gear. the base motor drive gear, both legs will retract. Note: Do not engage gear rack! Verify that distance A & B are equal. www.liko.com...
-
Page 13: Base Attachment
12 24 36 48 60 72 84 96 108 120 Address: Check: (Zip Code) Tools required 1. Make sure the mast is secured with two M6 screws in the upper holes on the mast. Note! Do not place any screws in the lower holes! www.liko.com... -
Page 14: Armrest
1. Inspect that the armrest is tightened by tightening the two pre-mounted M8 screws. Rotate arms to raised position as shown below. Verify that both arms rotate freely and hang vertically when not in use. Maximum 40 kg / 88 lbs www.liko.com... -
Page 15: Lift Arm Covers
Replace according to assembly instruction in the Service Manual for the lift. 3. Check to ensure that lift strap cover is not damaged. Check to ensure that lift strap cover is not damaged. Verify that the cover is positioned inside the grooves of the mast. www.liko.com... -
Page 16: Lift Strap
4. Mount the new strap through the plastic housing with pull the strap away. the red mark towards the plastic housing and then as shown above. 5. Check that the liftstrap is correctly mounted Lift Strap needs to be changed every 5th year. www.liko.com... -
Page 17: Emergency Lowering Device
Instructions regarding the check points for Golvo Emergency Lowering Device Lift type: Serial No: Prod. Year: Contract No: Name: Month 12 24 36 48 60 72 84 96 108 120 Address: Check: (Zip Code) Tools required Make sure there are no sharp edges. Check the entire liftstrap. www.liko.com... -
Page 18: Slingbar
Make sure the plastic cover is not worn. If so, replace the slingbar. 3. Remove slingbar centerbolt and bearing, wipe of any dirty, dust or residue. Re-assemble in reverse order. Remove slingbar centerbolt and bearing, wipe of any dirty, dust or residue. Re-assemble in reverse order. www.liko.com... -
Page 19: Battery
4. Place the removable battery pack into position on top of the unifority. Verify that plastic housing for metal contacts is not controlbox. Adjust until you hear a clicking sound. damaged/deformed. Tighten screws. Battery needs to be changed every 3rd year. www.liko.com... -
Page 20: Lubrication Mast
Instructions regarding the check points for Golvo Lubrication mast Lift type: Serial No: Prod. Year: Contract No: Name: Month 12 24 36 48 60 72 84 96 108 120 Address: Check: (Zip Code) Tools required 1. Lubricate the mast with PTFE. www.liko.com... -
Page 21: Mast Friction Plates
2. Unfix the screw and the plastic cover. 3. Remove the aluminium holder spring and the slipper. 4. Check the friction plates. Replace if worn down or scrat- ching the mast. Clean inner mast and apply new PTFE grease. 5. Re-assemble in reverse order. www.liko.com... -
Page 22: Limiting Switch
(drill ø 9) tom the current should not be more than 2 Amps. Remove the plastic cover. (drill ø 3,3:4) 3. Remove the aluminium cover. 4. Check the switch by driving the lift down and pres- sing the switch. www.liko.com... - Page 23 +46 (0)920-47 47 00 fax: +46 (0)920-47 47 01 Liko AB • Org. nr SE 556202600401 info@liko.se Nedre vägen 100, SE-975 92 Luleå, Sweden Tel: +46 (0)920-24 47 00 • Fax +46 (0)920-24 47 01 • info@liko.se • www.liko.se © Copyright Liko AB...
