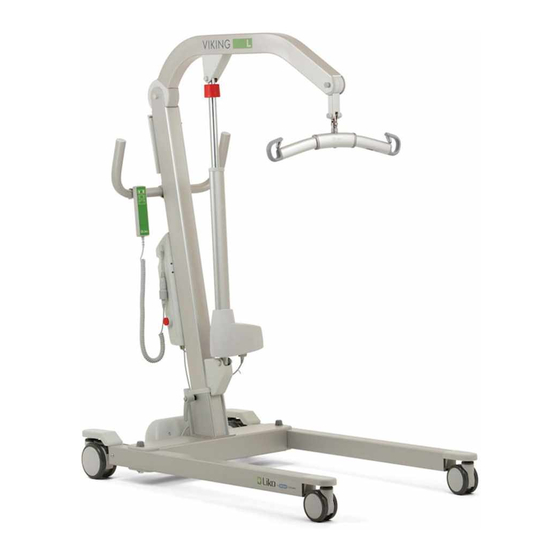

Viking™ XL
Mobile Lift
Service Manual
Prod. No. 2040003
S/N 800 001 - 890 000
DISCONTINUED 2013
Prod. No. 2040033
S/N 9 100 001 - 9 200 000
DISCONTINUED 2017
3EN350401 Rev. 11
ENGLISH
Prod. No. 2040013
S/N 7 900 001 - 8 000 000
DISCONTINUED 2017
Prod. No. 2040043
S/N 9 600 001 - 9 700 000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Viking XL 2040003 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Liko Viking XL 2040003

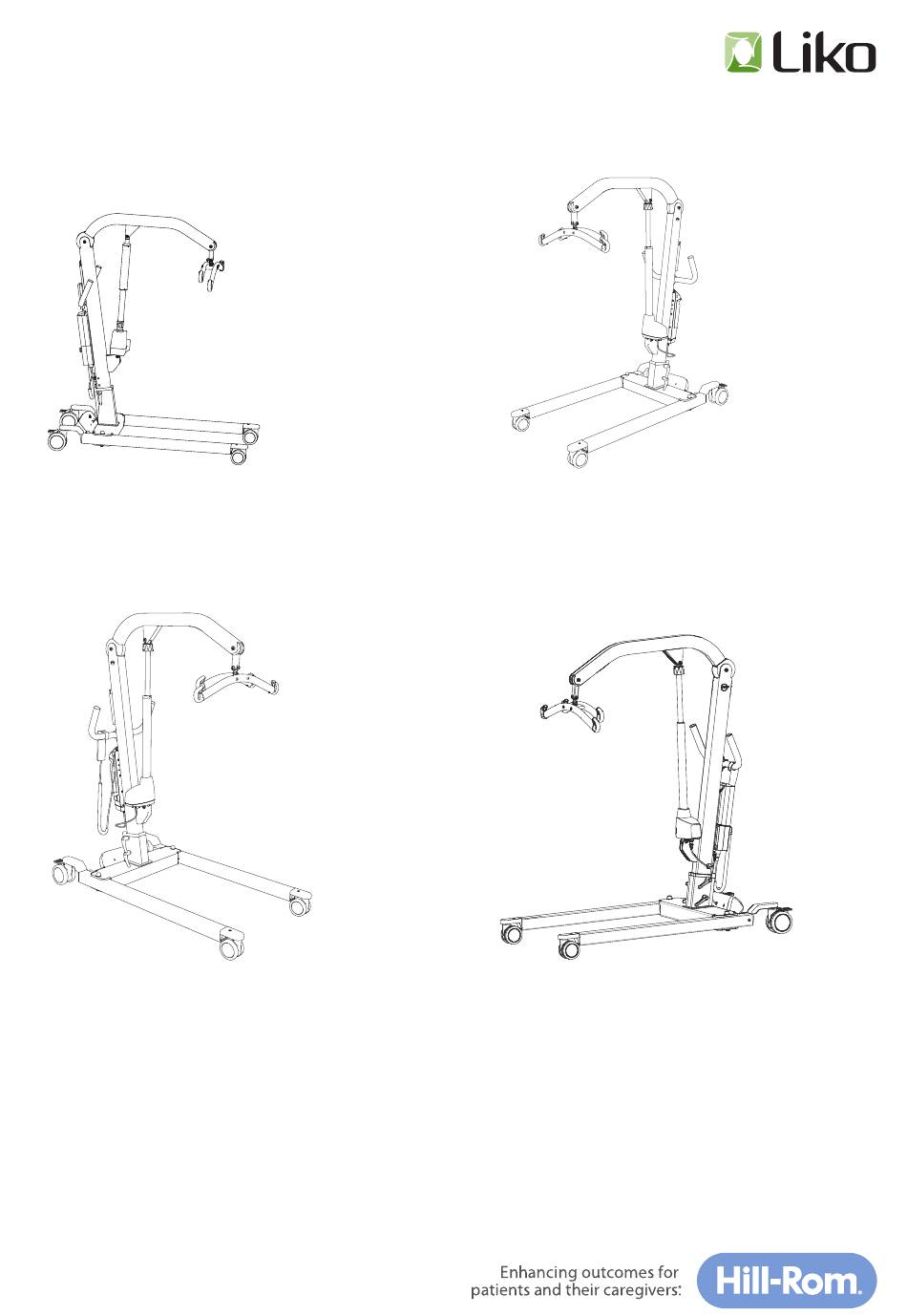

  • Page 1 Viking™ XL Mobile Lift Service Manual Prod. No. 2040003 Prod. No. 2040013 S/N 800 001 - 890 000 S/N 7 900 001 - 8 000 000 DISCONTINUED 2013 DISCONTINUED 2017 Prod. No. 2040043 Prod. No. 2040033 S/N 9 600 001 - 9 700 000 S/N 9 100 001 - 9 200 000 DISCONTINUED 2017 3EN350401 Rev.
  • Page 2 Components (manufacturing parts) are not available after last manufacturing date. Repairs and maintenance may only be performed by personnel authorized by Hill-Rom and using original Liko™ spare parts. For information regarding Service and Maintenance education, contact your Hill-Rom representative. For contact information please visit our website: www.hill-rom.com...
  • Page 3: Table Of Contents

    Table of Contents Viking™XL mobile lift Page 1.0 Technical Data Viking XL 2040003 ............4 Viking XL 2040013 ............5 Viking XL 2040033 ............6 Viking XL 2040043 ............7 2.0 Troubleshooting Viking XL 2040003 ............8 Viking XL 2040013 ............9 Viking XL 2040033 ............
  • Page 4: Technical Data

    * These measures depend on which hole the mast is levelled and secured in. See assembly instructions page 5. ** Standard for Viking XL. Viking XL • 7EN135104-04 ww w . l i ko. com Service Manual Viking™ XL • 3EN350401 Rev. 11 www.liko.com www.hill-rom.com mobile lift...
  • Page 5 Note: The measurements are based on the lift being equipped with standard sling bar and standard wheels. When changing to other lifting accessories, or other wheels, check that the lift still achieves desired lifting height. Reference measurement according to Standard EN ISO 10535:2006. Service Manual Viking™ XL • 3EN350401 Rev. 11 www.liko.com www.hill-rom.com mobile lift...
  • Page 6 Note: The measurements are based on the lift being equipped with standard sling bar and standard wheels. When changing to other lifting accessories, or other wheels, check that the lift still achieves desired lifting height. Reference measurement according to Standard EN ISO 10535:2006. Service Manual Viking™ XL • 3EN350401 Rev. 11 www.liko.com www.hill-rom.com mobile lift...
  • Page 7: Viking Xl 2040013

    2110 1500 1420 1130 1015 1010 1910 Assembly Service Manual Viking™ XL 83.1 59.1 55.9 37.8 23.6 • 3EN350401 Rev. 11 22.0 44.5 32.1 40.0 23.8 39.8 www.liko.com 75.2 21.3 www.hill-rom.com 21.9 14.4 26.2 mobile lift...
  • Page 8 (marked) to safely lower the patient (p. 7). 4. Check that the battery is charged. 5. If the lift still does not work satisfactorily, contact Hill-Rom. Liko/Hill-Rom. If you hear unusual sounds. Contact Liko/Hill-Rom. Hill-Rom. Service Manual Viking™ XL • 3EN350401 Rev. 11 www.liko.com www.hill-rom.com...
  • Page 9 5. Use the manual emergency lowering device to lower the patient onto a firm surface. 6. If the problem persists, please contact Hill-Rom. If you hear unusual sounds. Contact Hill-Rom. Service Manual Viking™ XL • 3EN350401 Rev. 11 www.liko.com www.hill-rom.com mobile lift...
  • Page 10 5. Use the mechanical emergency lowering device to lower the patient onto a firm surface. 6. If the problem persists, please contact Hill-Rom. If you hear unusual sounds. Contact Hill-Rom. Service Manual Viking™ XL • 3EN350401 Rev. 11 www.liko.com www.hill-rom.com mobile lift...
  • Page 11 6. Use the mechanical emergency lowering device to lower the patient onto a firm surface, see chapter; Operation. 7. If the problem persists, please contact Hill-Rom. Contact Hill-Rom. If you hear unusual sound from the lift. Service Manual Viking™ XL • 3EN350401 Rev. 11 www.liko.com www.hill-rom.com mobile lift...
  • Page 12 - If charging starts within 1 minute, charge and then continue to step 6. - If charging doesn´t start, continue to step 5b. www.liko.com 5b) Measure output voltage on the control box 5 on contact 1 and 3. eries are fully charged, the charger switches - If voltage is 3-4V charging is OK! Replace the battery, continue to step 6.
  • Page 13: English

    - Make sure the spare part is mounted according to the assembly instruction. Document Number - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Hill-Rom and using original Liko™ spare parts. 3EN650203 Rev. 5 ENGLISH www.hill-rom.com...
  • Page 14: Discontinued

    Prod. No. 2040003, 2040013, 2040033, 2040043. One spare parts list for each model. Make sure to order correct spare part. 485 486 160 263 24 248 Service Manual Viking™ XL • 3EN350401 Rev. 11 www.liko.com www.hill-rom.com Spare Parts List mobile lift www.hill-rom.com www.liko.com...
  • Page 15: Prod. No

    We recommend replacing both wheels, as there are two different versions that can vary in appearance. (dimension is the same) pair 20490005 Rear Fork Cover 3SE630295 Spare Parts List www.hill-rom.com www.liko.com Service Manual Viking™ XL • 3EN350401 Rev. 11 www.liko.com www.hill-rom.com mobile lift...
  • Page 16: Prod. No

    Hook for Hand control 2,4,6 3SE630210 20090066 End Cover Handle/Arm Support grey, 4 pce 3SE630271 20490023 Lift arm plastic cover 3EN630250 Viking XL 2040003: fr. S/N 802000 20490024 Overhead beam restoration set 3EN630251 Viking XL 2040003: fr. S/N 802000 20490025 Actuator Viking XL 3SE640241 Spare Parts List www.hill-rom.com...
  • Page 17 3SE650295 20090080 Fork locking attachment, 4 pair 3SE690208 pair 20090081 Wheel Fork 3SE690209 pair 20490060 Front Wheel Fork 3SE690221 Fits Viking XL 2040003L Spare Parts List www.hill-rom.com www.liko.com Service Manual Viking™ XL • 3EN350401 Rev. 11 www.liko.com www.hill-rom.com mobile lift...
  • Page 18 One spare parts list for each model. Make sure to 307 308 order correct spare part. 333 351 352 354 485 486 Service Tool 348 349 24 248 Liko™ Service System Service Manual Viking™ XL • 3EN350401 Rev. 11 www.liko.com www.hill-rom.com mobile lift Spare Parts List www.hill-rom.com...
  • Page 19 20490039 Control Unit CBL, by S/N 3SE650270 Can only be ordered if S/N (serial number) can be provided to Liko™ Customer Service. Will be programmed at Liko™ before delivery. 2 weeks delivery time from Hill-Rom/Liko™ Alvik, Sweden 20490044 Control Unit CBL Viking XL 3SE650290 Before use;...
  • Page 20 Clips with hook HBL20 3SE650218 21090022 Charge cable hook , 10 pce 3SE650219 21090023 Hand control hanger, 10 pce 3SE650220 pair 20490037 Rear Wheel fork 3SE690221 Spare Parts List www.hill-rom.com www.liko.com Service Manual Viking™ XL • 3EN350401 Rev. 11 www.liko.com www.hill-rom.com mobile lift...
  • Page 21: Spare Parts List

    Leg Cover L&XL 3EN650294 20490049 Flexlink 3SE650295 20090080 Fork locking attachment, 4 pair 3SE690208 pair 20090081 Wheel Fork 3SE690209 20490066 Base Motor, wide 3EN690288 Spare Parts List www.hill-rom.com www.liko.com Service Manual Viking™ XL • 3EN350401 Rev. 11 www.liko.com www.hill-rom.com mobile lift...
  • Page 22 One spare parts list for each model. Make sure to order correct spare part. 454C 336C 485 486 Service Tool 24 248 348 349 Liko™ Service System Service Manual Viking™ XL • 3EN350401 Rev. 11 www.liko.com www.hill-rom.com mobile lift Spare Parts List www.hill-rom.com...
  • Page 23 20490054 336C Control Unit CBL by S/N, Cable 3SE690227 Can only be ordered if S/N (serial number) can be provided to Liko™ Customer Service. Will be programmed at Liko™ before delivery. 2 weeks delivery time from Hill-Rom/Liko™ Alvik, Sweden 20490056 454C Control Unit CBL Viking XL, Cable 3SE690229 Before use;...
  • Page 24 Charge cable hook , 10 pce 3SE650219 pair 20490037 Rear Wheel fork 3SE690221 20090077 Locking device CBL20, 10 pce 3SE640217 20490040 Bracket Cover 3SE650273 Spare Parts List www.hill-rom.com www.liko.com Service Manual Viking™ XL • 3EN350401 Rev. 11 www.liko.com www.hill-rom.com mobile lift...
  • Page 25 Fork locking attachment, 4 pair 3SE690208 pair 20090081 Wheel Fork 3SE690209 20490057 Locking Ring CBL, 10 pce 3SE690231 20490066 Base Motor, wide 3EN690288 Spare Parts List www.hill-rom.com www.liko.com Service Manual Viking™ XL • 3EN350401 Rev. 11 www.liko.com www.hill-rom.com mobile lift...
  • Page 26 Prod. No. 2040003, 2040013, 2040033, 2040043. One spare parts list for each model. Make sure to order correct spare part. kg/lbs 485 486 22 23 24 Service Manual Viking™ XL Spare Parts List • 3EN350401 Rev. 11 www.liko.com www.hill-rom.com www.hill-rom.com www.liko.com mobile lift...
  • Page 27 We recommend replacing both wheels, as there are two different versions that can vary in appearance. (dimensions are the same) pair 20490005 Rear Fork Cover 3SE630295 Spare Parts List www.hill-rom.com www.liko.com Service Manual Viking™ XL • 3EN350401 Rev. 11 www.liko.com www.hill-rom.com mobile lift...
  • Page 28 Charge cable hook , 10 pce 3SE650219 pair 20490037 Rear Wheel fork 3SE690221 20490040 Bracket Cover 3SE650273 20490042 Restoration set motor attachment 3SE650288 Spare Parts List www.hill-rom.com www.liko.com Service Manual Viking™ XL • 3EN350401 Rev. 11 www.liko.com www.hill-rom.com mobile lift...
  • Page 29 Hand Control 6 button, LED 3EN690283 kg/lbs 20490065 Actuator LA44 3EN690287 Replaces 20490045 20490066 Base Motor, wide 3EN690288 20490067 Control Box XL Jumbo Care 3EN690289 Spare Parts List www.hill-rom.com www.liko.com Service Manual Viking™ XL • 3EN350401 Rev. 11 www.liko.com www.hill-rom.com mobile lift...
  • Page 30: Service

    • Replacing the Control Unit CBL without using the LSS may cause some data loss as this data is recordable by LSS and a computer. When data is stored in Liko™ database it can be retrieved if needed. • Resetting the Service Interval using the LSS, LDS or Manually, will reset the Accumulated Amp-hours (PAAxT), Accumulated Time (PAKT), Accumulated Operating Time (PADT) and Accumulated number of stops due to overload (PAOLUP).
  • Page 31: Control Unit Cbl, Reset Service Interval Parameters

    5.2 Control Unit CBL, Reset Service Interval Parameters CBL RESET SERVICE INTERVAL PARAMETERS After the Periodic Inspection has been performed Service Light and Service Interval Parameters* in the Liko™ Diagnostic System™ has to be reset. Reset can be done using one of the following Service Tools/Methods: Prod.
  • Page 32: Control Unit Jumbo Care

    Press the “fast speed” up and down buttons on the hand control or kg/lbs up and down buttons on the control box for 5 seconds. An audio signal will confirm the resetting. Service Manual Viking™ XL • 3EN350401 Rev. 11 www.liko.com www.hill-rom.com mobile lift...
  • Page 33: Liko™ Service System

    Prod. No. 21090024 Product Description Liko™ Service System (LSS) is a soft ware developed to enable service technicians to conduct service in an easy way on all lifts equipped with the control unit CBL 20. It also gives the service technician the possibility to program the spare part on the field.
  • Page 34: Periodic Inspection Information

    According to ISO 10535:2006 Annex B, Periodic Inspection of medical device Liko™ mobile lift should be performed at least once a year. For Liko™ mobile lifts Periodic Inspection Liko mobile lifts 3EN371001 is available on the Partner Web (and internally in Agile) NOTE! Utgått från PI:...
  • Page 35: Preventive Maintenance

    3 672 000 As (prod No 2040043) (which comes first) provided that required Periodic Inspection and Preventive Maintenance is performed by personnel authorized by Hill-Rom and using original Liko™ spare parts. However certain parts have a shorter life cycle and will need to be replaced in order for the mobile lift to meet its expected life time.
  • Page 36: Product Changes

    Start of producing Viking XL (Prod. No. 2040013), with intelligent control unit and IR 7 900 001 hand control. 2008 4 mm shorter middle beam. Link attachment for base motor adjusted. 803 000 Service Manual Viking™ XL • 3EN350401 Rev. 11 www.liko.com www.hill-rom.com mobile lift...
  • Page 37 800774 New diagonal profile inside the Middle Beam. 800700 New version of base motor same as L, M. 800635 Change of name: Viking 300 to Viking XL. 800509 Service Manual Viking™ XL • 3EN350401 Rev. 11 www.liko.com www.hill-rom.com mobile lift...
  • Page 38 The holes for attaching the handles and armrest on Viking 300 has been moved up 800364 8 cm/ 3.15 inches. Serial number decal have ETL-mark. 800352 Upgrade front fork and new style on front fork cover. 800331 New serial number decal. 800277 Service Manual Viking™ XL • 3EN350401 Rev. 11 www.liko.com www.hill-rom.com mobile lift...
