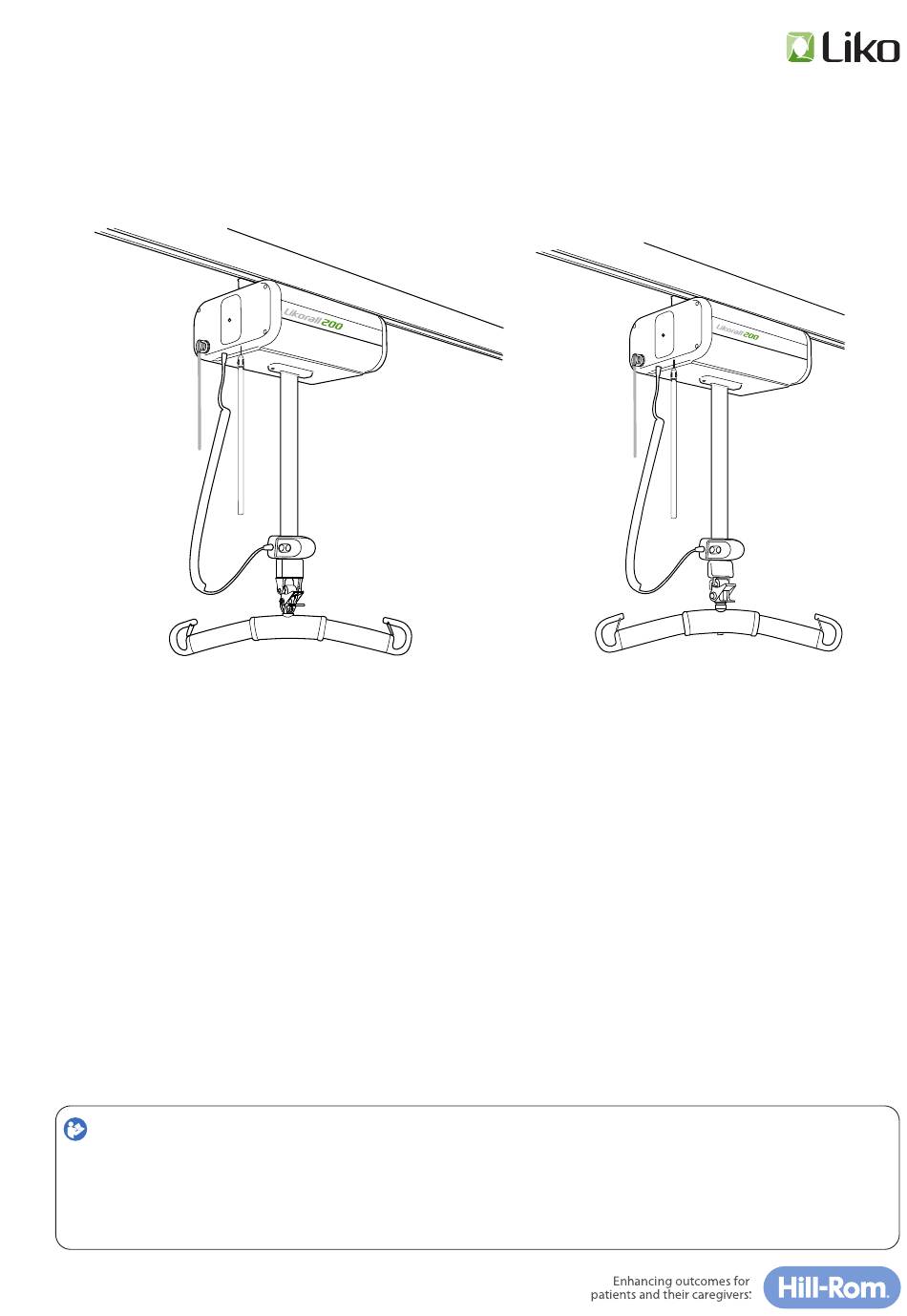

Likorall™ 200
overhead lift
Instructions for Use

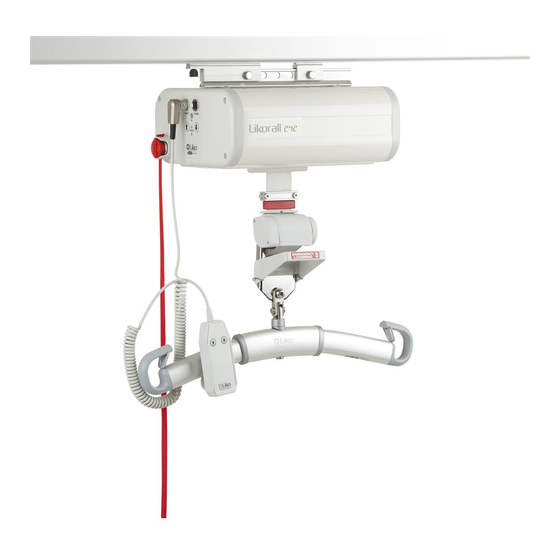

Likorall 200 overhead lift
Likorall overhead lift is a stationary lift unit often called an
"overhead lift". Likorall overhead lift is mounted in Liko
rail system, which is adapted to suit the room/rooms it
will be operated in. The rail system can be built straight,
with or without curves, as a traverse system and also as a
room-to-room system. Liko
several hundred different components, we select the specific
components needed to customize each system to suit the
room it will be mounted in. The rail system can either be fixed
or freestanding, such as Liko FreeSpan and Liko FreeStand.
The system must be installed by authorized personnel and in
accordance with Liko
installation instructions.
TM
In this document, the person being lifted is referred to as the patient, and the person helping them is referred to as the
caregiver.
IMPORTANT!
Lifting and transferring a patient always involves a certain level of risk. Read the instructions for use for both the patient
lift and lifting accessories before use. It is important to completely understand the contents of the instructions for use.
The equipment should only be used by trained personnel. Ensure that the lifting accessories are suitable for the lift used.
Exercise care and caution during use. As a caregiver, you are always responsible for the patient's safety. You must be aware of
the patient's ability to make it through the lifting situation. If something is unclear, contact the manufacturer or supplier.
7EN120114 Rev. 10
ENGLISH 2020
Product No. 3121001
Product Description
rail system is comprised of
TM
Likorall overhead lift is intended for use in lifting and transferring
patients, for example, from bed to a wheelchair, to or from
TM
the floor, for visits to the toilet, for gait, standing and balance
training, when weighing the patient and when lifting the
patient with a stretcher.
Likorall 200 overhead lift is adapted to the Liko
Hook System for safe and easy changing of lifting accessories.
The Liko
Room-to-Room system (R2R), enables the patient
TM
to be moved between two rail systems in separate rooms,
without connecting rails and without making holes over doors.
A large range of accessories are available for Likorall overhead
lift, including different sling models in a range of types and sizes.
Quick-release
TM

Advertisement

Table of Contents
loading

Related Manuals for Liko Likorall 200

Summary of Contents for Liko Likorall 200

  • Page 1 Liko rail system is comprised of Likorall 200 overhead lift is adapted to the Liko Quick-release several hundred different components, we select the specific Hook System for safe and easy changing of lifting accessories.

  • Page 2: Table Of Contents

    Table of Contents Symbol Description .......................... 3 Safety Instructions ........................... 4 Definitions ............................5 Technical Data ..........................5 Measurements ..........................6 EMC Table ............................6 Assembly ............................9 Operation ............................9 Charging the Batteries ........................12 Transferring from Room to Room ....................13 Maximum Load ..........................

  • Page 3: Symbol Description

    Symbol Description These symbols can be found in this document and/or on the product. Symbol Description For indoor use only. The product has extra protection against electric shock (Insulation Class II). Protection level against electric shock Type B. Warning. Used were extra care and attention is needed. Read instruction for use before use.

  • Page 4: Safety Instructions

    Safety Instructions Installation of Likorall overhead lift to carriages shall be made by personnel authorized by Liko in accordance with the installation instructions and recommendations for the current lift system. Intended use: The product is intended for use in following environments: Health care, Intensive care, Emergency ward, Rehabilitation, Habilitation environment.

  • Page 5: Definitions

    Definitions 1. Hand control with spring clamp 2. Emergency lowering device (electric) 3. Emergency stop string 4. Emergency stop 5. End cover 6. Charge indicator 7. Lift unit 8. SSP Limit Switch 9. Lift strap 10. Q-Link II (quick fastener) 11.

  • Page 6: Measurements

    Measurements Ceiling Lateral view (Central Suspension Point) L*** Overhead view Measurements in mm. L*** 165 340 250 2050 Measurements in inch. L*** 13.4 12.0 80.7 * Minimum distance from ceiling to CSP at maximum lifting height with the standard carriage. ** Built-in dimension: the distance between the attachment point for the lift unit on the carriage and the CSP at maximum lifting height.
  • Page 7 Guidance and manufacturer’s declaration – electromagnetic immunity The product is intended for use in the electromagnetic environment specified below. The customer or the user of this product should assure that it is used in such an environment. Immunity test IEC 60601 test level Compliance level Electromagnetic environment - guidance Electrostatic discharge...
  • Page 8 Guidance and manufacturer’s declaration – electromagnetic immunity The product is intended for use in the electromagnetic environment specified below. The customer or the user of this product should assure that it is used in such an environment. Immunity test IEC 60601 test level Compliance Electromagnetic environment - guidance level...

  • Page 9: Assembly

    Q-Link II attached to the Q-Link II or Q-Link, see illustration above. or Q-Link. Read more about the Liko Quick-release Hook system on page 15. Operation...
  • Page 10 Emergency stop Electrical Emergency lowering To activate the emergency stop: pull the red emergency In the event that the hand control or electronics stop string. malfunction, the lift can be lowered by pulling on the emergency lowering device. To reset the emergency stop: turn the red emergency stop button in the direction shown by the arrows.
  • Page 11 SSP Limit Switch activated by the Q-Link or Q-Link II SSP Limit Switch Never move the lift by pulling the hand control! When Likorall overhead lift strap reaches its highest position The lifting motion is stopped and physical contact occurs between the SSP Limit Switch by lightly pressing on the SSP Limit Switch on the underside and Q-Link or Q-Link II, the SSP Limit Switch is activated.

  • Page 12: Charging The Batteries

    Charging the Batteries In order to ensure maximum battery life, it is important to charge the batteries regularly. We recommend that you charge the batteries after use or every night. A full charge is achieved after max. 8 hours. Fully charged batteries will last for approx.

  • Page 13: Transferring From Room To Room

    The R2R system is mounted without making openings in walls over doors and full isolation is therefore retained between the rooms supported by the system. The transfer is performed in a safe manner, with the aid of separate rail systems for each room. The Liko R2R system enables linking together two Likorall overhead lifts when transferring from room to room.

  • Page 14: Maximum Load

    The Liko product range contains a wide assortment of sling bars, slings, stretchers, scales and other accessories to solve most lifting needs. Below is an overview of the lifting accessories available for Likorall 200 overhead lift. Some accessories may not be available for sale.
  • Page 15 Liko Quick-release Hooks form a system providing safe and easy changing of lifting accessories. The Liko Quick-release Hooks protect against unintentional detachment. Likorall 200 overhead lift is used solely with lifting accessories equipped with Quick-release Hooks. Quick-release Hook Quick-release Hook...

  • Page 16: Simple Troubleshooting

    Simple Troubleshooting Make sure that the emergency stop button has The lift doesn’t work. not been activated (shall not be pressed in). 2. Check that the handcontrol cable is connected correctly. 3. Charge the battery. 4. If the problem persists, please contact Hill-Rom. 1.

  • Page 17: Recycling Instructions

    Recycling Instructions Pb-batteries Waste of Electrical and Electronic Equipment (WEEE) Metals Old batteries are to be deposited at the nearest recycling station or given to personnel authorized by Hill-Rom. Likorall overhead lift comply with the Directive 2012/19/EEC on waste electrical and electronic equipment. Hill-Rom evaluates and provides guidance to its users on the safe handling and disposal of its devices to aid in the prevention of injury, including, but not limited to: cuts, punctures of the skin, abrasions, and any required cleaning and disinfection of the medical device after use and prior to its disposal.

  • Page 18: Cleaning And Disinfection

    Cleaning and Disinfection These instructions do not replace the facility’s own cleaning and disinfection policies. Warnings: To help prevent injury and/or equipment damage, obey these warnings: • Warning—The potential for electrical shock exists with electrical equipment. Failure to follow facility protocol could cause death or serious injury.
  • Page 19 2. As necessary, first remove visible soil from the lift with a cloth moistened with warm water and a neutral, approved cleaner/ disinfectant. See "Application of commonly used Cleaning / Disinfectants on Liko products." Do not use a cloth that is dripping wet.
  • Page 20 Step 2: Disinfection: 1. For the use of suitable disinfectants see "Application of commonly used Cleaning / Disinfectants on Liko products” in this document. 2. Follow the manufacturer's instructions. 3. Make sure all surfaces remain wet with the cleaner/disinfectant for the specified contact time. Rewet surfaces with a new wiping cloth as necessary and per the manufacturer's instructions.
  • Page 21 www.hillrom.com 7EN120114 Rev. 10 • 2020...

  • Page 22: Inspection And Maintenance

    Service activities are not allowed with the patient in the lift. Service Agreement Hill-Rom offers the opportunity to enter into service contracts for the maintenance and periodic inspection of your Liko products. Expected Life Time The product has an expected life time of 10 years when correctly handled, serviced and periodically inspected in accordance with Liko instructions.
