SlingGuard™ sling bar
Instructions for Use
SlingGuard™ 450
SlingGuard™ 450 with Quick- Hook Multi
SlingGuard™ 670 Twin
SlingGuard™ 670 Twin with Quick- Hook Multi
7EN161113 Rev. 5
ENGLISH 2020
Prod. No. 3308020
Prod. No. 3308520
Prod. No. 3308040
Prod. No. 3308540

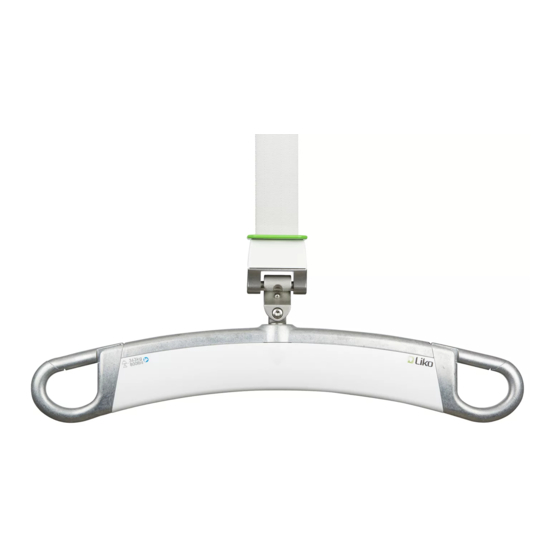

SlingGuard™ 450 sling bar
SlingGuard™ 670 Twin sling bar

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SlingGuard 450 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Liko SlingGuard 450

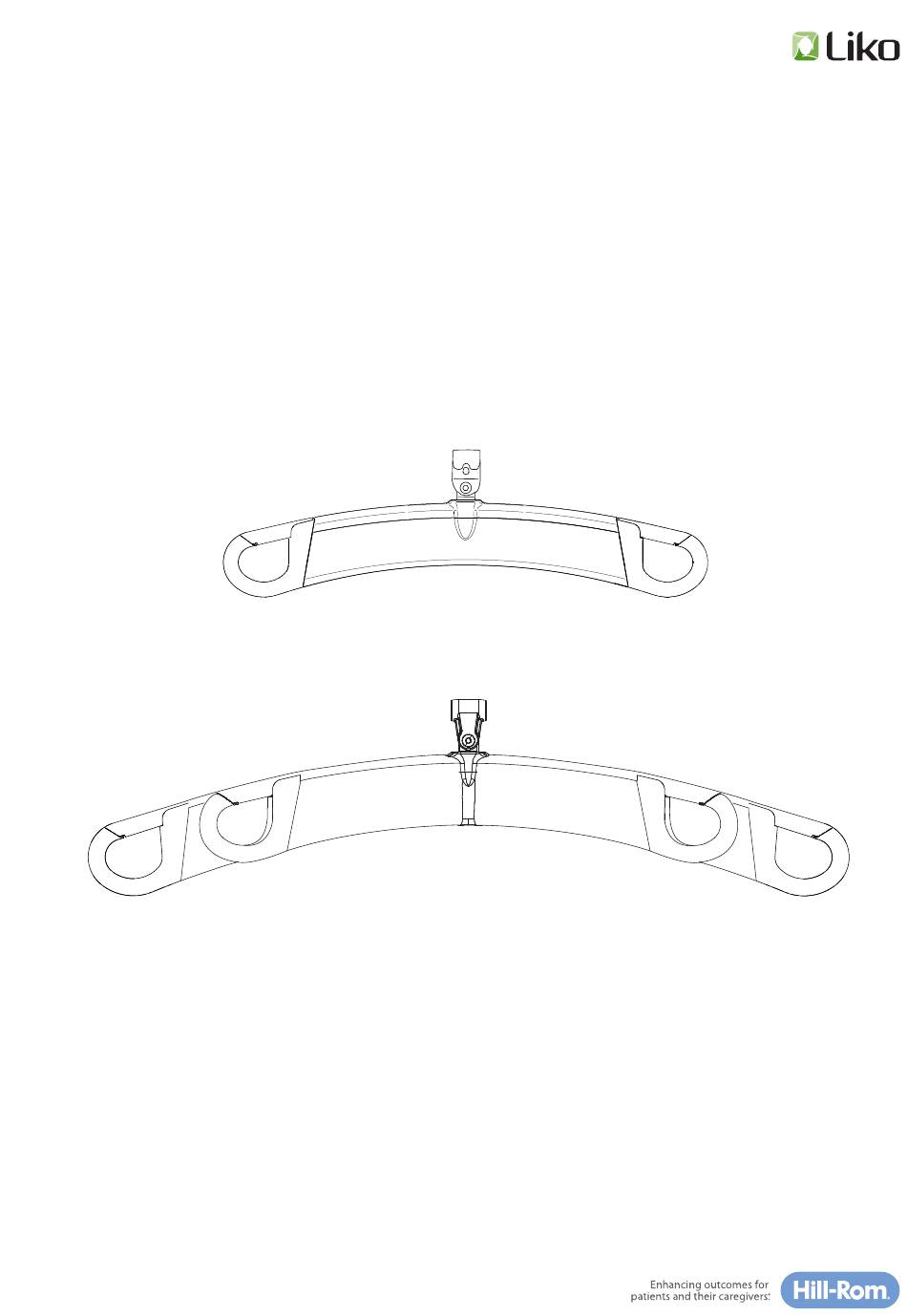

  • Page 1 SlingGuard™ sling bar Instructions for Use SlingGuard™ 450 Prod. No. 3308020 SlingGuard™ 450 with Quick- Hook Multi Prod. No. 3308520 SlingGuard™ 670 Twin Prod. No. 3308040 SlingGuard™ 670 Twin with Quick- Hook Multi Prod. No. 3308540 SlingGuard™ 450 sling bar SlingGuard™...
  • Page 2: Table Of Contents

    Service ............................12 Expected life time ........................12 Recycling Instructions ....................... 12 Product Changes ........................12 Design and Quality by Liko in Sweden ..................12 Notice to Users and/or Patients in EU ..................12 7EN161113 Rev. 5 • 2020 www.hillrom.com...
  • Page 3: Symbol Description

    Symbol Description These symbols can be found in this document and/or on the product. Symbol Description Warning; this situation requires extra care and attention. CE mark Legal manufacturer. Read instructions for use before use. Date of manufacturing. Important! Failure to follow the instructions may lead to damage to the product. Caution! consult instructions for use.
  • Page 4: Product Description

    Product Description SlingGuard™ Sling bars are available in two versions of attachment to the lift. Fixed attachment or the quick-attachment device Quick- Hook Multi. SlingGuard™ Sling bars has latches to protect against involuntary unhooking of the slings suspension loops. Medical Device Class I Product Maximum load: 363 kg (800 Ibs.) 1.
  • Page 5: Intended Use

    For guidance and support in choosing the correct sling, visit www.hillrom.com or contact your Hill-Rom representative. Note! Always read the instruction for use that comes with Liko´s different sling models for correct and safe use of the sling. Read the instruction for use for both the patient lift and lifting accessories before use. Lifting and transferring a person always involves a certain level of risk.
  • Page 6: Slingguard™ 450 Sling Bar - Attach The Sling Suspension Loops To The Sling Bar Hooks

    The sling strap loops should be attached to the sling bar hooks so that the sling bar latches safely prevent involuntary unhooking of the strap loops. Before lifting always ensure that the sling’s strap loops are correctly connected to the sling bar hooks when the sling straps are stretched, but before the patient is lifted from the underlying surface.
  • Page 7: Slingguard™ 670 Twin Sling Bar - Attach The Sling Suspension Loops To The Sling Bar Hooks

    SlingGuard™ 670 Twin sling bar - Attach the sling suspension loops to the sling bar hooks. Note! For correct and safe use of a sling, always study the instruction for use for the selected sling before lifting. Sling with 4 suspension loops Sling with 6 suspension loops Shoulder straps Upper strap loops...
  • Page 8: Assembly

    Assembly Fixed assembly of SlingGuard™ sling bar to lift Fits: LikoGuard™ L Overhead Lift Prod. No. 3301030  LikoGuard™ XL Overhead Lift Prod. No. 3301040 Shall be assembled by personnel authorized by Hill-Rom! Tools required: Torx T25 X 1 Torque Wrench: 0 - 10 Nm (88 in.Ibf) Torx T25 X 2 Torque: 1,25 ± 0,25 Nm (11 ±...
  • Page 9: Assembly Of Slingguard™ Sling Bar With Quick-Hook Multi

    Assembly of SlingGuard™ sling bar with Quick-Hook Multi Fits: LikoGuard™ L Overhead Lift Prod. No. 3301030  LikoGuard™ XL Overhead Lift Prod. No. 3301040 Always check that the quick attachment device is correctly attached to the lift strap attachment. Open the Quick-Hook Multi with the green button, see fig.a and attach the Quick-Hook Multi to Multi-link at the lift strap, release the button.
  • Page 10: Cleaning And Disinfection

    Cleaning and Disinfection Cleaning and disinfection must always be carried out in accordance with the recommended instructions. All parts must be kept clean in order to avoid the risk of infection. Necessary precautions must be taken to eliminate all visible stains and dirt.
  • Page 11 7EN161113 Rev. 5 • 2020 www.hillrom.com...
  • Page 12: Care And Maintenance

    If in doubt, the user of the device shall first contact Hill-Rom Technical Support for guidance on safe disposal protocols. Product Changes Liko’s products undergo continuous development, which is why we reserve the right to make product changes without prior notice. Contact your Hill-Rom representative for advice and information about product upgrades.
