Sabina II
Sit-to-stand lift
Instructions for Use

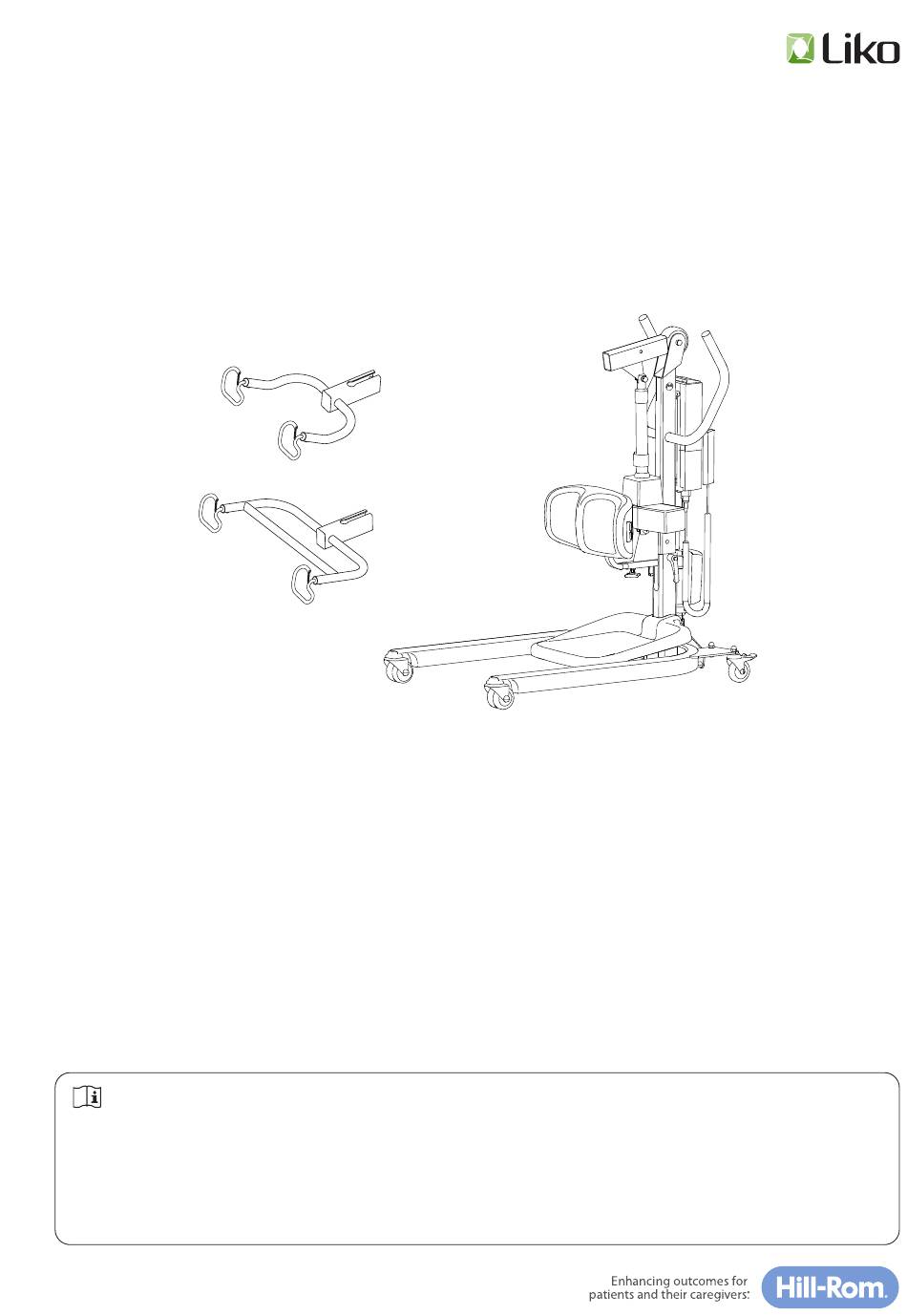

Sabina II EE sit-to-stand lift
Sabina II Slingbar 350
Sabina II Comfort Slingbar
Sabina SeatStrap SlingBar
Sabina II SeatStrap SlingBar Prod. No. 2027007
Sabina II HeelSupport
Calf Strap
SlingBar 350
Comfort SlingBar
The Sabina sit-to-stand lift is especially designed for people
who have difficulty in standing up on their own from a
seated position.
Sabina sit-to-stand lift is intended for use with patients
who are able to actively participate in the raising motion.
When standing, they can be moved to a wheelchair or to a
toilet; this gives them standing practice in connection with
the transfer.
There are two different sling bar options for Sabina sit-to-
stand lift, as well as many different sit-to-stand vests.
The patient's overall mobility determines the choice of
sling bar and sit-to-stand vest.
In this document, the person being lifted is referred to as the patient, and the person helping is referred to as the caregiver.
IMPORTANT!
Lifting and transferring a patient always involves a certain level of risk. Read the instructions for use for both the patient
lift and lifting accessories before use. It is important to completely understand the contents of the instructions for use.
The equipment should only be used by a trained caregiver. To be trained, a caregiver needs to read and understand the
Instructions for Use. Ensure that the lifting accessories are suitable for the lift used. Exercise care and caution during use.
As a caregiver, you are always responsible for the patient's safety. You must be aware of the patient's ability to make it
through the lifting situation. If something is unclear, contact the manufacturer or supplier.
7EN155106 Rev. 3
ENGLISH 2024
Prod. No. 2020003
Prod. No. 2027002
Prod. No. 2027003
Prod. No. 2027006
Prod. No. 2027011
Prod. No. 20290022
Product Description
The Sabina sit-to-stand lift equipped with the Comfort
SlingBar combined with the Liko ComfortVest provides
a gentle lifting action without putting pressure under
the arms. This combination is suitable for those who are
especially sensitive to pressure under the arms, such as
people who are paralyzed on one side.
Sabina sit-to-stand lift can also, to a limited extent, be used
for passive lifting of a patient sitting in a sling.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Liko Sabina II EE sit-to-stand lift
Summary of Contents for Liko Sabina II EE sit-to-stand lift
- Page 1 The Sabina sit-to-stand lift is especially designed for people The Sabina sit-to-stand lift equipped with the Comfort who have difficulty in standing up on their own from a SlingBar combined with the Liko ComfortVest provides seated position. a gentle lifting action without putting pressure under the arms.
-
Page 2: Table Of Contents
Table of Contents Safety Information ........................... 3 Intended Use ........................... 3 Symbol Description .......................... 4 Definitions ............................6 Technical Data ..........................7 Dimensions ............................8 EMC Table ............................9 Assembly and Setup ........................13 Operation ............................15 Charging the Batteries ........................16 Maximum Load .......................... -
Page 3: Safety Information
Safety Information Intended use The Sabina II EE sit-to-stand lift is intended for use in the following environments: health care, intensive care, emergency ward, rehabilitation, habilitation environment, and home healthcare environment. The Sabina sit-to-stand lift can be used to assist people who have difficulty raising from a sitting to a standing position, for example from a wheelchair, chair, bed or when using the toilet. -
Page 4: Symbol Description
No modification of the product is allowed. Use of the product adjacent to other equipment should be avoided because it could result in improper operation. If such use is necessary, observe and verify that this equipment and the other equipment is operating normally. Electromagnetic disturbance, may affect the lifting performance of the product. - Page 5 Symbol Description Symbol Description Manufacturer. Date of manufacture. Consult instructions for use for more Caution! consult instructions for use. information. All batteries in this product must be recycled separately. Do not dispose as unsorted municipal waste. All Electrical and Electronic Equipment in this product must be recycled separately. Do not dispose as unsorted municipal waste.
-
Page 6: Definitions
Definitions 1. Lift arm 16. Lift motor 2. Handles 17. Mechanical emergency lowering 3. Battery 18. Holder for quick reference guide (accessory) 4. Hand control 19. Lift mast 5. Control box with emergency stop 20. SlingBar 350 (Width: 350 mm / 13.8 inch) 6. -
Page 7: Technical Data
Technical Data Lifting interval: SlingBar 350: 825 mm (32.5 in) Maximum load: Active lifting: 200 kg (440 lbs) Comfort SlingBar: 785 mm (30.9 in) Passive lifting: 150 kg (330 lbs) Lifting Speed SlingBar 350: 54 mm/s (2.13 in/s) Material: Powder-coated steel. (no load): Comfort SlingBar: 47 mm/s (2.1 in/s) Weight :... -
Page 8: Dimensions
Dimensions A Ref. 1 A B3** Ref. 2 D2** SABINA II EE lift with SlingBar 350 A min* A max* D1 D2** F1 L max* L min* 1050 1770 1060 870 590 690-1115 530-1005 915 210 900-1000 107 22 1725 inch 41.3 69.6... -
Page 9: Emc Table
EMC Table Guidance and manufacturer’s declaration – electromagnetic emissions The product is intended for use in the electromagnetic environment specified below. The customer or the user of the product should assure that it is used in such an environment. ”Essential performance according to the manufacturer: The product shall not move unintentionally while being submitted to disturbances.”... - Page 10 Guidance and manufacturer’s declaration – electromagnetic immunity The product is intended for use in the electromagnetic environment specified below. The customer or the user of the product should assure that it is used in such an environment. ”Essential performance according to the manufacturer: The product shall not move unintentionally while being submitted to disturbances.”...
- Page 11 Recommended separation distances between portable and mobile RF communications equipment and the products listed above Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 in) to any part of the product, including cables specified by the manufacturer. Otherwise, degradation of the performance of this equipment could result.
- Page 12 Guidance and manufacturer’s declaration – electromagnetic immunity The product is intended for use in the electromagnetic environment specified below. The customer or the user of the product should assure that it is used in such an environment. ”Essential performance according to the manufacturer: The product shall not move unintentionally while being submitted to disturbances.”...
-
Page 13: Assembly And Setup
Assembly and Setup Before assembly, make sure you have the following parts: • Lift mast with lift arm, control box, lift motor. • Footrest and frame for the footrest. • Sling bar with safety latches and locking handles. • Lower leg support. •... - Page 14 6. A) Connect the charger cable to the socket under the control box. 7. Place the charger cable on the hook provided B) Attach the connector cable to the strain relief system. on the mast after completed charging. C) Plug the charger cable into the connector cable. 8.
-
Page 15: Operation
Operation Hand control Emergency stop Indicator lamp (A) - charge the battery of the lift! Activate: Press the red button on the control box. The lifting motion is operated with the push buttons on the hand Reset: Turn the button in the direction shown by control. -
Page 16: Charging The Batteries
Charging the Batteries Indications for charging the battery In the event of low battery voltage, a signal from the control box will sound. At the same time, an indicator on the hand control will illuminate. When this happens, the battery must be charged as soon as possible. However, there is sufficient power for a few more lifts. -
Page 17: Maximum Load
Sabina II sit-to-stand lift. Also study the instructions for use for respective sit-to-stand vest/sling or lifting accessory for further guidance. Contact your Hillrom representative for advice and information on Liko’s product range. Calf Strap Prod. No.20290022 Calf strap may be used for those patients who need securing of a weak leg or need a prompt not to step off of the footrest. -
Page 18: Optional Components For Use With Lift
Liko SafetyVest Prod. No. 3593115 Fits Sabina II 350 SlingBar Prod. No. 3593116 Liko ComfortVest Prod. No. 3595414 Fits Comfort SlingBar Prod. No. 3595415 Prod. No. 3595416 Prod. No. 3595417 Solo SupportVest Prod. No. 35911915-4 Fits Sabina II 350 SlingBar Prod. -
Page 19: Using Sabina Sit-To-Stand Lift To Assist Users Into A Standing Position
Battery charger Prod. No. 2004106 For wall mounting Battery Prod. No. 2006106 Lead battery (Pb) Using SABINA sit-to-stand lift to Assist Users into a Standing Position There are two different sling bar options available for Sabina sit-to-stand lift, as well as many different sit-to-stand vests. The patient’s overall mobility determines which sling bar and sit-to-stand vest to use. - Page 20 Raising a person with active lifting using Sabina sit-to-stand lift with SlingBar 350 For this sling bar, we recommend Liko SupportVest mod. 91 or Liko SafetyVest mod. 93. When using SlingBar 350, the patient shall have arms outside the vest. SlingBar 350 in combination with SafetyVest mod. 93 gives the patient extra support in the standing-up situation.
- Page 21 The ComfortVest is designed to lift behind the back and on the outside of the arms. The Comfort SlingBar can also, to a limited extent, be used with Liko SupportVest mod.91 for larger patients.
- Page 22 Problems while helping a patient get to their feet The patient does not reach a sufficiently upright position - what is to be done? Sometimes this is due to the patient’s state of health or mobility: weakened musculature, lack of strength and/or diminished mobility in hip or knee joints.
-
Page 23: Using Sabina Sit-To-Stand Lift In Passive Lifting Situations
(330 lbs.); this is due to the fact that during passive lifting, the footrest does not bear any of the load. SABINA sit-to-stand lift with SlingBar 350 (bar width 350 mm) For this sling bar, we recommend Liko HygieneSling mod. 41 and 45. SABINA sit-to-stand lift with Comfort SlingBar (bar width 600 mm) For this sling bar, we recommend Liko UniversalSling mod. -
Page 24: Troubleshooting
Troubleshooting The lift does not work up/down 1. Make sure that the emergency stop button is not pressed in. with Hand Control. 2. Check the battery capacity. The base-width adjustment 3. Make sure that the battery is properly seated in the control box. does not work (in/out) with the 4. -
Page 25: Recycling Instructions
Equipment (WEEE). Metals Sabina II EE sit-to-stand lift comply with the Directive WEEE ll 2012/19/EU on waste electrical and electronic equipment. Old batteries are to be deposited at the nearest recycling facility in accordance with local regulations or given to personnel authorized by Hillrom. -
Page 26: Cleaning And Disinfection
The lift should not be exposed to running water. Safety recommendations Cleaning and disinfecting procedures for Liko Mobile lifts. These instructions do not replace the facility’s own cleaning and disinfection policies. • Wear protective equipment according to manufacturer’s instructions and per facility protocol throughout the cleaning operations, such as: gloves, eye protection, apron, face mask and shoe covers. - Page 27 Disinfection Instructions 1. For the use of suitable disinfectants see ”Application of commonly used Cleaning detergents / Disinfectants on Liko products” in this document. 2. Use the disinfectant according to the manufacturer’s instructions. Wipe the entire lift, except for the piston rod, starting from the top and working down.
- Page 28 www.hillrom.com 7EN155106 Rev. 3 • 2024...
-
Page 29: Inspection And Maintenance
Hillrom and using original Liko spare parts. Service activities are not allowed with the patient in the lift. Service Agreement Hillrom offers the opportunity to enter into service contracts for the maintenance and regular inspection of your Liko product. Expected Lifetime The product has an... - Page 30 Liko AB Nedre vägen 100 975 92 Luleå, Sweden +46 (0)920 474700 Liko AB is a subsidiary of Hill-Rom Holdings Inc.
