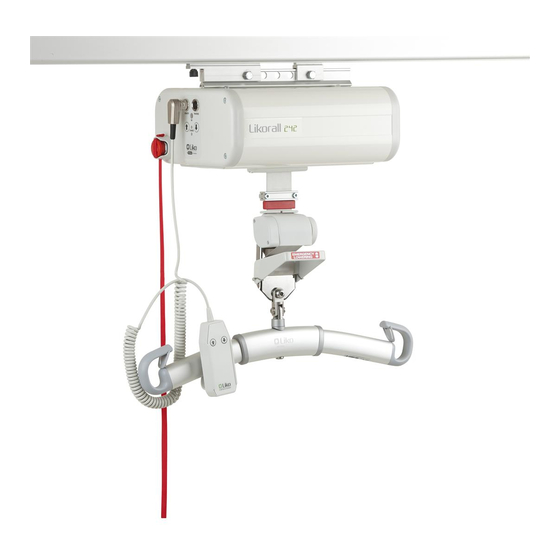

Liko Likorall 200 Service Manual
  1. Manuals
  2. Brands
  3. Liko Manuals
  4. Lifting Systems
  5. Likorall 200
  6. Service manual

Liko Likorall 200 Service Manual

Overhead lift
Hide thumbs Also See for Likorall 200:

Advertisement

Table of Contents

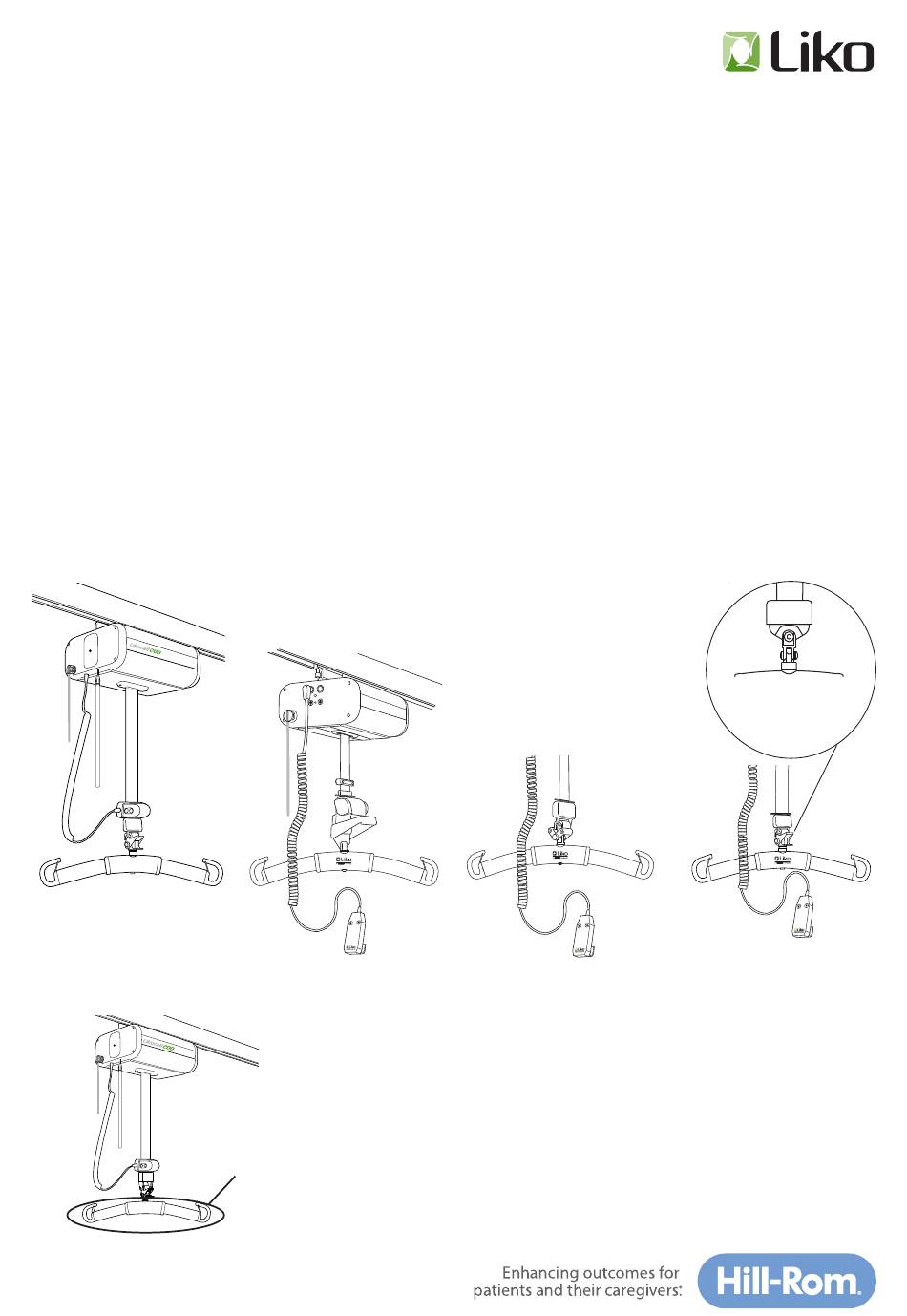

Likorall™
overhead lift
Service Manual
Overhead Lift
Prod. No.
Likorall 200
3121001 / CN
Likorall 242 ES
3122005-3122006 / NA
Likorall 242 ES R2R
3122007-3122008 / NA / CN
Likorall 242 S
     
3122009-3122010 / NA
Likorall 242 S R2R       
3122011-3122012 / NA
Likorall 243 ES, natural
3123001 / NA
Likorall 243 ES, white
3123002 / NA
Likorall 250 ES, natural
3122501 / NA
Likorall 250 ES, white
3122502 / NA / CN
Likorall 250 S, IRC
3124050
Likorall 200
3EN200405 Rev. 19
ENGLISH
Likorall 242 S
Likorall 242 ES
All Models
Likorall 242 S R2R
Likorall 242 ES R2R
Likorall 243 ES, NA
Likorall 250 ES, NA
Likorall 243 ES
Likorall 250 ES
Likorall 250 S IRC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Likorall 200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Liko Likorall 200

Summary of Contents for Liko Likorall 200

  • Page 1 Likorall™ overhead lift Service Manual Overhead Lift Prod. No. Likorall 200 3121001 / CN Likorall 242 ES 3122005-3122006 / NA Likorall 242 ES R2R 3122007-3122008 / NA / CN Likorall 242 S       3122009-3122010 / NA Likorall 242 S R2R       ...
  • Page 2 Components (manufacturing parts) are not available after last manufacturing date. Repairs and maintenance may only be performed by personnel authorized by Hill-Rom and using original Liko spare parts. ™ For information regarding Service and Maintenance education, contact your local Sales or Service representative.

  • Page 3: Table Of Contents

    Table of Contents Likorall™ overhead lift Page 1.0 Technical Data 1.1 Likorall 200 ................4 1.2 Likorall 242 S/ES, 243 S/ES, 250 S/ES ........5 2.0 Troubleshooting 2.1 Likorall 200 ................6 2.2 Likorall 242 S/ES, 243 S/ES, 250 S/ES ........7 3.0 Spare Parts List (spare parts / model) 3.1 Spare Parts List (spare parts / model) ......8...

  • Page 4: Technical Data

    1.1 Technical Data Likorall™ 200 overhead lift Intermittent power: Int. Op 10/90, active operation max Maximum load: kg (440 Ibs.) 0.5 min. Batteries: 2 x 12 V 2,4-2,6Ah. Valve-regulated Protection class lift lead-acid gel-type batteries. New motor: batteries are provided by the supplier.

  • Page 5: Likorall 242 S/Es, 243 S/Es, 250 S/Es

    1.2 Technical Data Likorall™ 242 S/ES, 243 S/ES, 250 S/ES overhead lift Emergency lowering Mechanical: Likorall 242 Maximum Likorall 242: 200 kg (440 lbs) device: Electrical:   Likorall 242 R2R load: Likorall 243: 230 kg (507 lbs)       Likorall 243 Likorall 250: 250 kg (550 lbs)   ...

  • Page 6: Troubleshooting

    2.1 Troubleshooting Likorall™ 200 overhead lift 1. Make sure that the emergency stop button has not been activated (shall not be pressed in). 2. Check that the handcontrol cable is The lift doesn’t work. connected correctly. 3. Charge the battery. 4. If the problem persists, please contact Hill- Rom.

  • Page 7: Likorall 242 S/Es, 243 S/Es, 250 S/Es

    2.2 Troubleshooting Likorall™ 242 S/ES, 243 S/ES, 250 S/ES overhead lift 1. Make sure that the emergency stop button has not been activated (shall not be pressed in). 2. Check that the handcontrol cable is The lift doesn’t work. connected correctly. 3.

  • Page 8: Spare Parts List (Spare Parts / Model)

    3.1 Spare Parts List (spare parts / model) Service Manual Likorall™ • 3EN200405 Rev. 19 www.hillrom.com overhead lift...

  • Page 9: Spare Parts List (Spare Parts / Model)

    3.1 Spare Parts List (spare parts / model) Service Manual Likorall™ • 3EN200405 Rev. 19 www.hillrom.com overhead lift...

  • Page 10: Spare Parts Positions

    3.2 Spare Parts Positions Likorall ™ overhead lift PROD. NO. PRODUCT 3121001 Likorall 200 overhead lift Service Manual Likorall™ • 3EN200405 Rev. 19 www.hillrom.com overhead lift...
  • Page 11 3.2 Spare Parts Positions Likorall ™ overhead lift PROD. NO. PRODUCT PROD. NO. PRODUCT 3122005 Likorall 242 ES overhead lift 3122007 Likorall 242 ES R2R overhead lift 3122006 Likorall 242 ES overhead lift, white 3122008 Likorall 242 ES R2R overhead lift, white 3122009 Likorall 242 S overhead lift 3122011 Likorall 242 S R2R overhead lift 3122010...
  • Page 12 3.2 Spare Parts Positions Likorall ™ overhead lift PROD. NO. PRODUCT 3122501 Likorall 250 ES overhead lift 3122502 Likorall 250 ES overhead lift, white 264 311 3123001NA 3123002NA PROD. NO. PRODUCT 3124050 Likorall 250 S IRC Motor Cable Cable adapter battery 264 311 Cable for Limit Switch Cable Emergency Stop Strain relief hook Service Manual Likorall™...

  • Page 13: Spare Parts List (Spare Parts Information)

    3.3 Spare Parts List Likorall™ overhead lift LiftStrap PROD. NO. POS. NO. NAME UNIT ASSEMBLY INSTR. It is very important that the correct lift strap is mounted to the overhead lift motor. Older versions of the Likorall overhead lift have black shorter lift strap. (The Likorall 200 overhead lift has short and long grey lift straps) Likorall...
  • Page 14 3.3 Spare Parts List Likorall™ overhead lift LiftStrap PROD. NO. POS. NO. NAME UNIT ASSEMBLY INSTR. It is very important that the correct lift strap is mounted to the overhead lift motor. Older versions of the Likorall overhead lift have black shorter lift strap. (Likorall 200 overhead lift has short and long grey lift straps).
  • Page 15 3.3 Spare Parts List Likorall™ overhead lift LiftStrap PROD. NO. POS. NO. NAME UNIT ASSEMBLY INSTR. It is very important that the correct lift strap is mounted to the overhead lift motor. Latest versions of Likorall overhead lift have grey longer lift strap. (Likorall 200 overhead lift has short and long grey lift straps) Likorall...
  • Page 16 3.3 Spare Parts List Likorall™ overhead lift LiftStrap PROD. NO. POS. NO. NAME UNIT ASSEMBLY INSTR. It is very important that the correct lift strap is mounted to the overhead lift motor. Latest versions of the Likorall overhead lift have grey longer lift strap. (Likorall 200 overhead lift has short and long grey lift straps) Likorall...
  • Page 17 3.3 Spare Parts List Likorall™ overhead lift Electronic Cards PROD. NO. POS. NO. NAME UNIT ASSEMBLY INSTR. 31290073 Electronic card with cover LR 200 3SE640292 31290085 Gable LR 250 S IRC 3SE650262 31290109 Electronic Card with Cover 242 ES 3SE690235 (From S/N 423745) 31290110 Electronic Card with Cover 242 S (From S/N 262603)
  • Page 18 3.3 Spare Parts List Likorall™ overhead lift PROD. NO. POS. NO. NAME UNIT ASSEMBLY INSTR. 31290057 Strap Stop (grey) 3EN640287 31290059 Movable Strap Stop, 10 pce 3EN640286 31290060 Plastic Wheel with Bearing pair 3SE650207 31190021 Body/Handle set for Emergency 3EN650209 Lowering Device (Stainless steel) 31590011 Latch universal pair...
  • Page 19 3.3 Spare Parts List Likorall™ overhead lift PROD. NO. POS. NO. NAME UNIT ASSEMBLY INSTR. 21090025 Charger CH01 3EN650232 31290078 Emergency Guard Activator 3SE650233 31290079 Fuse LR 12,5 A, 10 pce 3SE640238 Only to Likorall 242, 243, 250 with this type of fuse holder: 31590005 Q-link...
  • Page 20 3.3 Spare Parts List Likorall™ overhead lift PROD. NO. POS. NO. NAME UNIT ASSEMBLY INSTR. 21090048 Long Cable for hand control 3EN690215 8pol Cable 180 cm, black 31290092 Actuator Restoration set, Likorall 3EN690206 (Replaces Spare Part No. 31290054 and 31290089) 31290093 Electrical Motor, Likorall 3SE690207 (Replaces Spare Part No.

  • Page 21: Spare Parts Assembly Information

    - Make sure the spare part is mounted according to the assembly instruction. Document Number - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Hill-Rom and using original Liko™ spare parts. 3EN650203 Rev. 5 ENGLISH www.hill-rom.com...

  • Page 22: Periodic Inspection Information

    Post Code Liko™ overhead lifts must be thoroughly inspected at least once per year. Inspection and service must be carried out by Hill-Rom authorized personnel. If the lift is installed in a corrosive environment such as indoor pool or bathroom, see inspection point 11 before starting inspection.

  • Page 23: Preventive Maintenance

    Can be used more than 3 years if no malfunction is detected. HandControl See User 3 years Can be used more than 3 years if no malfunction is detected. Manual or Liko™ Product List Service Manual Likorall™ • 3EN200405 Rev. 19 www.hillrom.com...

  • Page 24: Installation Instructions

    Likorall™ overhead lift Before installation: Read and understand the contents of the Liko™Overhead System Installation Hand Book; 3EN680001. Make sure the maximum load of the installed rail system is equal to or larger than the maximum load of the Likorall™ overhead lift.
  • Page 25 4 N-m (35 in-lbs). Make sure the screws are entirely inserted when tightened. See the illustrations below. Center line Front View Side View 3EN680108 Rev. 1 ENGLISH www.hill-rom.com l www.liko.com Service Manual Likorall™ • 3EN200405 Rev. 19 www.hillrom.com overhead lift...
  • Page 26 Make sure when mounting the carriage that it is resting securely in the S65 hook and is not angled or leaning to one side. • Repairs and maintenance may only be performed by personnel authorized by Hill-Rom and using original Liko spare parts.
  • Page 27 7.0 Installation Instructions Likorall™ overhead lift 3126011 Carriage with brake LR Note! Not compatible with rail curve 90° and rail curve 45°. Position of carriages. Friction brake adjustment. 3126012 Carriage without brake Position of carriages in straight rail. Position of carriages in rail curve. Service Manual Likorall™...
  • Page 28 7.0 Installation Instructions Likorall™ overhead lift 3126028 Carriage LR 360° for R2R Friction brake adjustment. Secure split pin. 3126015 Carriage for R2R, with brake 3126014 Carriage for R2R, without brake Friction brake adjustment. Only on 3125015. Secure split pin. Service Manual Likorall™ • 3EN200405 Rev. 19 www.hillrom.com overhead lift...
  • Page 29 7.0 Installation Instructions Likorall™ overhead lift 3126008 Quick-release Carriage LR 3126009 Quick-release Adapter LR Mounting the Quick-release adapter: 1. Slide the adapter on to the lift units mounting bracket. 2. Place the adapter in the centre of the mounting bracket and fix with the accompanying bolts M8x25 and locking nuts M8.
  • Page 30 7.0 Installation Instructions Likorall™ overhead lift 3136015 Carriage with hook for MR/LR 3126029 Carriage adapter LR 3136016 Adapter MR/LR Quick-release Hook Carriage adapter LR Safety critical assembly! Place the Carriage adapter LR centrally on the mounting bracket and Slide the Carriage adapter LR fix with included screws M8x25 and locking nuts M8 in the outer holes. into the Likorall™...
  • Page 31 7.0 Installation Instructions Likorall™ overhead lift After installing the Likorall™ overhead lift, attach the End Stops in the rail: 1. Insert and locate the end stop in all rail sections. 2. Secure the through bolts. 3. Secure the end stops, and apply choice of cover hats (white or grey) Check all functions related to the installed parts.

  • Page 32: Product Changes

    8.0 Product Changes Likorall™ overhead lift Likorall 200 Prod. No. 3121001 Likorall 242 ES Prod. No. 3122005-3122006 / NA Likorall 242 ES R2R Prod. No. 3122007-3122008 / NA Likorall 243 ES, NA Likorall 250 ES, NA Likorall 242 S Prod. No. 3122009-3122010 / NA Likorall 242 S R2R Prod.
  • Page 33 LiftStrap 2000 mm LR200, grey 31290129 31290128 is replacing 31290102 LiftStrap for Quick-release Hook, grey 31290130 31290129 is replacing 31290106 31290130 is replacing 31290107 Likorall for China Likorall 200 3121001CN 8520001 SUS003335 Likorall 242 ES R2R 3122008CN 8500001 3122502CN Likorall 250 ES 8510001 Updated software from version 2.10 to 2.20.
  • Page 34 Prod. No. Rev. From S/N Proj. Information in periodic inspection is added regarding C136163 inspection in non Liko Rail Systems, in North America Torque added when assembling the limit switch. Lift strap 31290006 C132984 Asm instructions updated with this information. 31290014 S/N adjusted on these pages regarding lift strap length.
  • Page 35 Likorall 240 31290052 1910 31290053 31290005 - The liftstraps has been modified. New type of Likorall 200 3121001 8 411 000 1797 seam and new 145 mm long treaded bolt. All Lift Strap Spare Parts has got new spare Likorall 242 S...
  • Page 36 Likorall™ overhead lift 2012 Changes Type Prod. No. Rev. From S/N: Proj. - The motor has been modified. Likorall 200 3121001 8 406 676 1748 - New version of PCBA 1817 - Revision numbers (Rev.) are implemented. Likorall 242 S 3122009 8 000 001...
  • Page 37 Type Prod. No. S/N: Proj. Due to production problems some Likorall was produced Likorall 200 3121001 7 900 001 - 8 405 800 according to proj 754, with shorter black lift strap, old 8 405 969 - 8 406 299 version of motor, and PCBA.
  • Page 38 Likorall 250 ES. Likorall 243 ES 8 201 237 Likorall 250 ES 8 301 629 New cover with integrated emergency stop collar and emergency stop Likorall 200 8 401 443 cord. Likorall 242 S (NA) 284 580 Likorall 242 ES (NA)
