Summary of Contents for MERLYN MB2

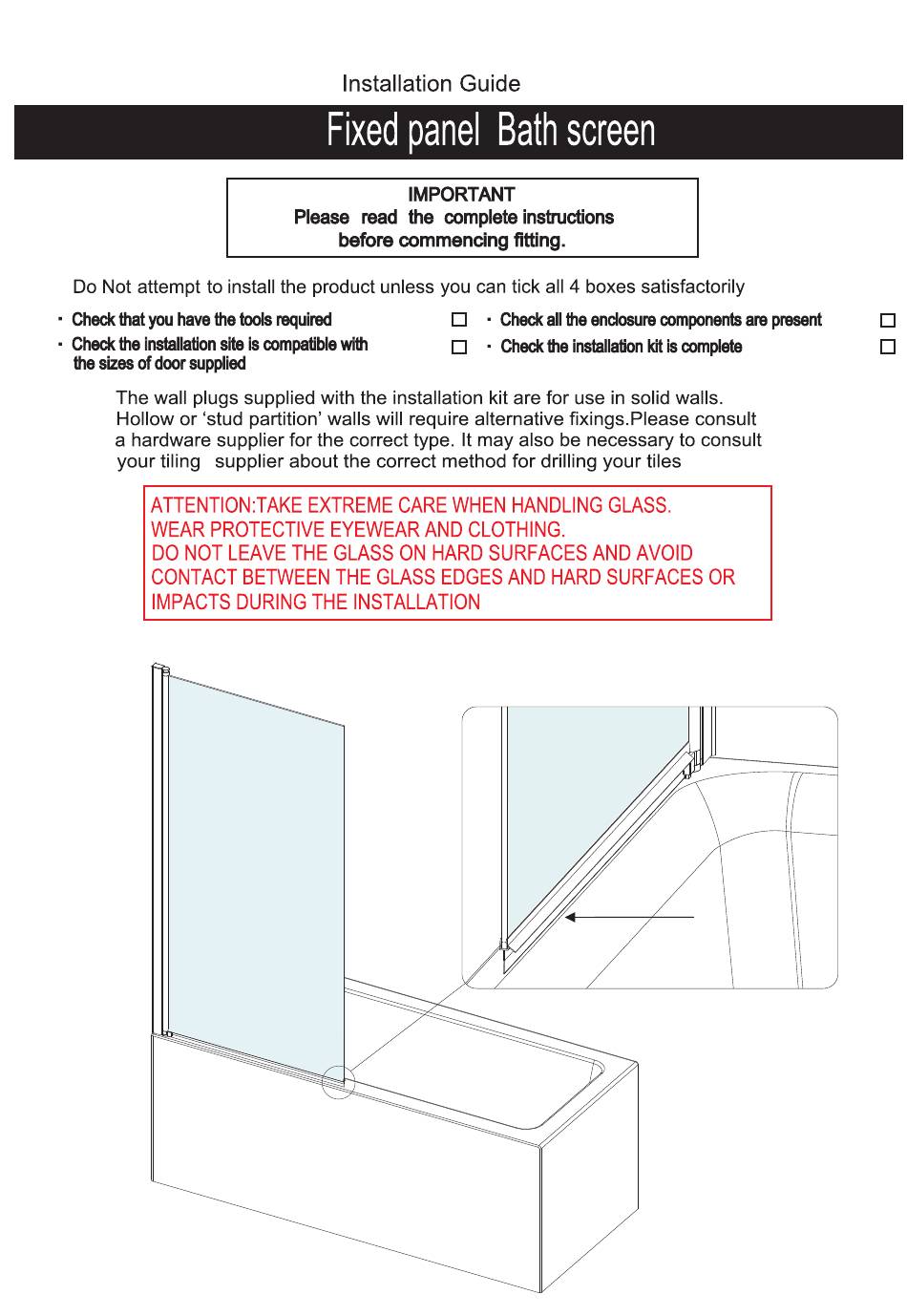

- Page 1 NOTE: Please ensure the bathscreen Is installed on the inside of the bath top. inside edge BT003 / T-027...
- Page 2 Bracket bottom Leakfree SP0LF02 Wall prafile cover SP0MOBY002L/R 2SP12 Wall Plug Bracket top Leakfree SP0LF01 Screw(4X40mm) A2403001 Screw(3.5X30mm) SP0M7029 foam plastics Wall profile Screw Cover Cap 2SS008 LP-123 LR8387C Clear Seal Hinge post Screw(4X12mm) A2401201 SP0LFCS S030C Top pivot sleeve SP0LFBPS Moving Glass Panel Screw Cover Cap Clip...
- Page 3 1.Bathscreen is reversible, choose which handing is required ensuring that the glass coated side is always on the inside of the bath.Silicone the top pivot bracket and bottom pivot bracket, and then insert into the round profile. Fig 1, 1A-1D. Fig 1 BOTTOM Bottom...
- Page 4 To help fit the bottom seal, turn the screen upside down. Apply silicone as shown in fig 3A. Fit seal SP0LFCS on to the bottom of the bath screen Fig 3 ensuring to push the end of the seal fully into the bottom bracket . Fig 3 Bottom lnside...
- Page 5 7. Drill 3 holes top,middle and bottom through the wall profile and hinge upright using a 3mm steel drill bit. Using the Screws A2401201,and screw cover caps 2SS008 and screw cover caps clips 2SS009 fix the hinge upright to the wall profile in 3 places.Fig 6.
