Installation Guide
MB12 Pivot
The wall plugs supplied with the installation kit are for use in solid walls.
Hollow or 'stud partition' walls will require alternative fixings. Please consult
a hardware supplier for the correct type. It may also be necessary to consult
your tiling supplier about the correct method for drilling your tiles.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MERLYN MB12
Summary of Contents for MERLYN MB12

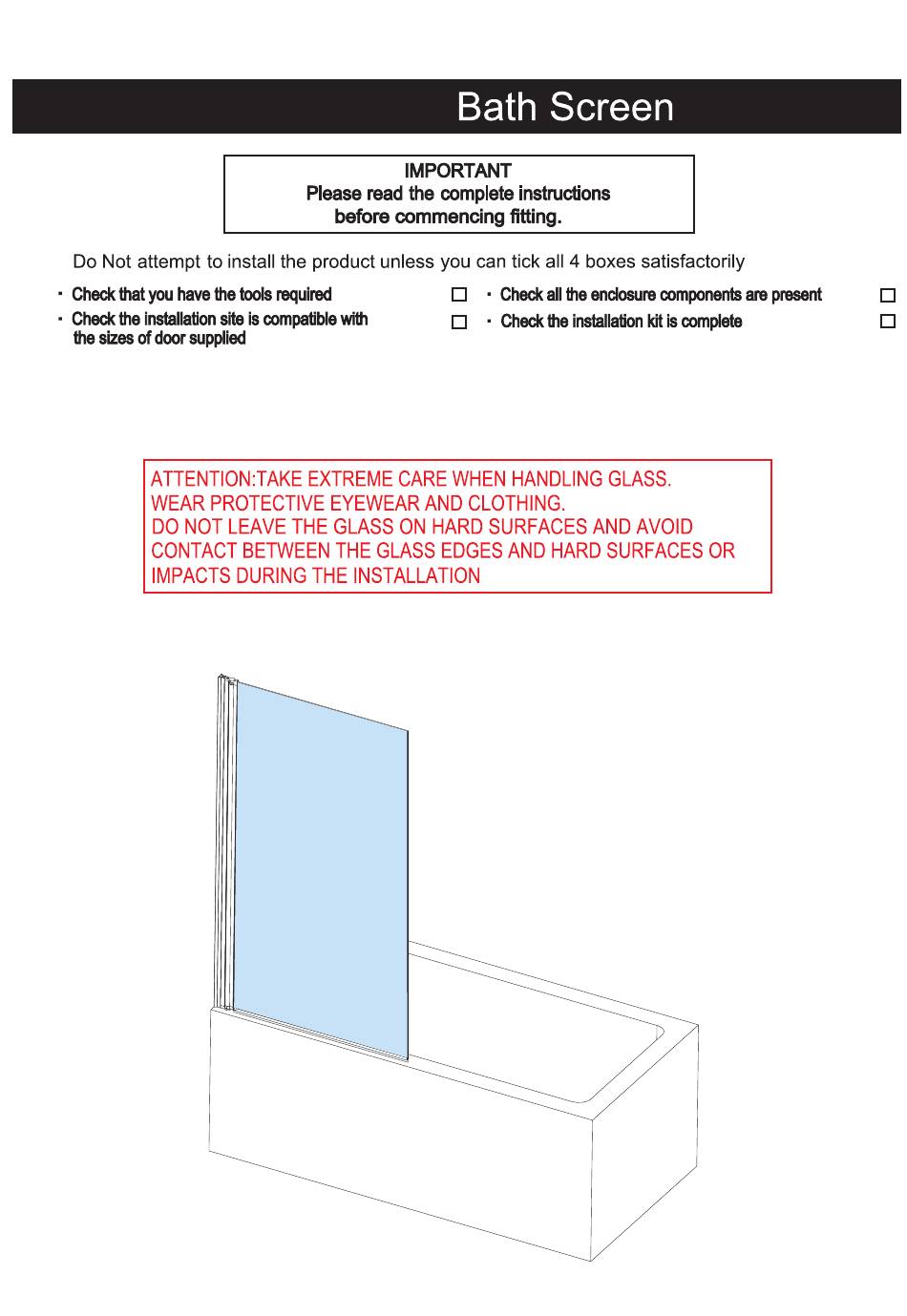

- Page 1 Installation Guide MB12 Pivot The wall plugs supplied with the installation kit are for use in solid walls. Hollow or ‘stud partition’ walls will require alternative fixings. Please consult a hardware supplier for the correct type. It may also be necessary to consult...
- Page 2 Wall plug SP0B08070 Wall profile SP0L909C Screw ST4x40 A2403001 Screw cover cap SP0A308 Screw ST4x12 A2401201 Screw cover cap clip SP0A309 Glass Panel Bottom seal SP0BSF014 parts shown are not to scale 4x40 SP0BSF014 A2403001 A2401201 SP0B08070 SP0B08092 SP0A309 SP0A308...
- Page 3 1. The screen is reversible for fitting to a wall on the right or left. The screen is set up for Left hand use. If you need to reverse it, unscrew one of the brackets and remove the moving panel A Fig 1. NOTE: Ensure the upright seal is on the inside.
- Page 4 5.Silicone the bottom of the pivot part. 6.Insert the screen into the wall profile. Ensure the bottom seal on the moving panel A is parallel to the top surface of the bath. Drill 3 holes through the wall profile and fixed panel using a 3mmsteel drill bit.
