Summary of Contents for MERLYN Arysto Ten GMW100

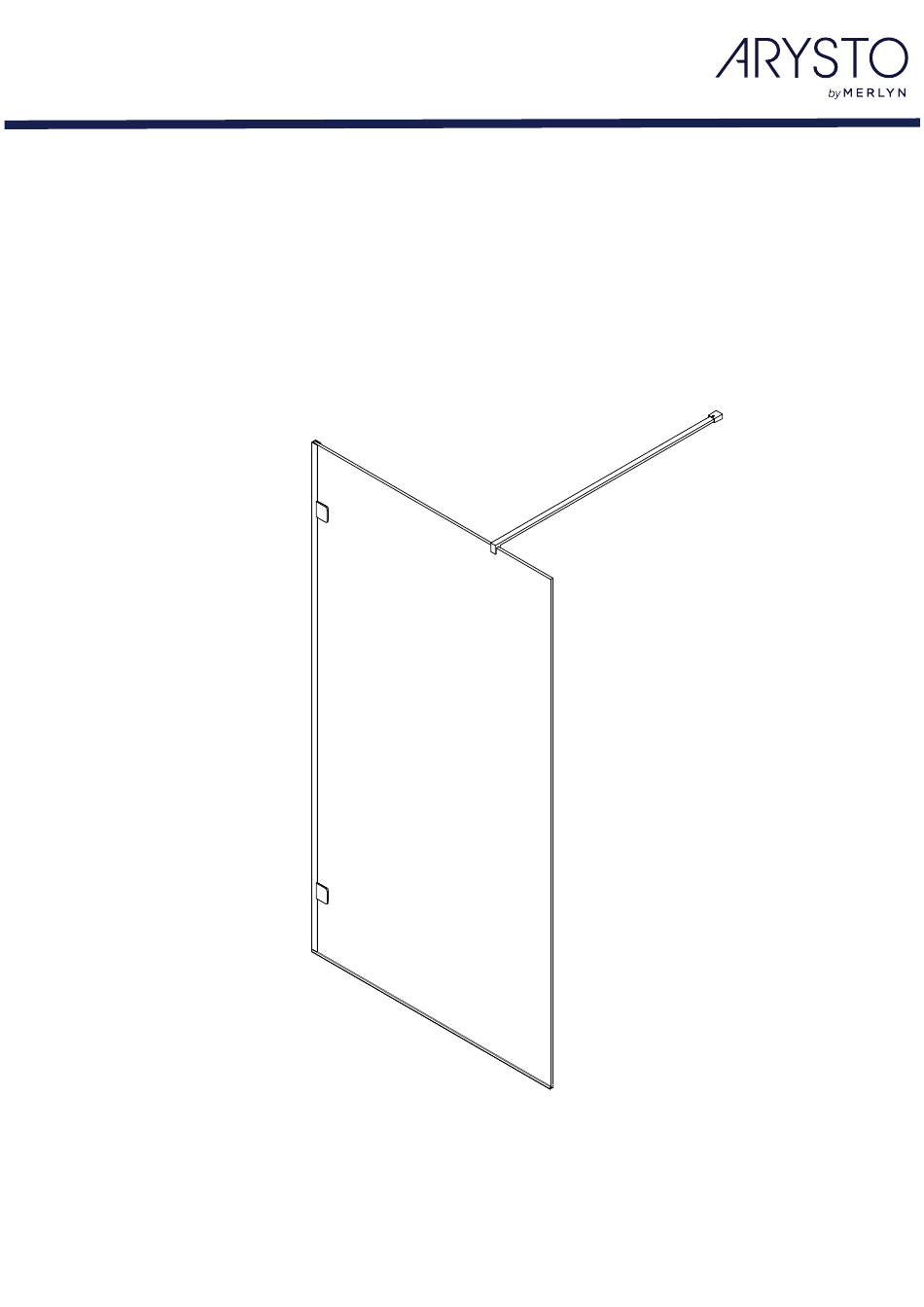

- Page 1 Shower Panel-Single Entry INSTALLATION GUIDE M088-00...
- Page 2 S8TRSET S8RAWBR x1 A06S0046 8S1300511 MGVC45 M8×6GNLT S8GRBSC x1 2.5mm Installation tool ×1 ×1 ×1 MGST5×65 MGST4×30BH MG8x51PLUG MG6x30PLUG ×4 IRF6003-1 MGCOVPLT MGCAP...
- Page 3 ⑦ ⑧ ① ⑨ ⑩ ② ③ ④ ⑤ ⑥ Descriptions Descriptions Part No. Part No. Wall profile Wall plug 6x30 MGVCWPSET MG6x30PLUG Wall plug 8x51 MG8x51PLUG Grubscrew S8GRBSC Wall bracket IRF6003-1 Wall bracket S8RAWBR Screw 5×65 MGST5X65 Screw 4×30 MGST4×30BH Shower wall panel Support rail...
- Page 4 Step 2 Option A.Fitting in wet room If fitting in a wet room determine the position of the outside edge of glass panel and measure in 40mm and mark. Note the position of the labels on the wall profile.Make sure Label 'T' is to the top and 'B' is to the bottom.
- Page 5 Step 2 Option B.Fitting on tray Mark 60 mm in from the edge of the tray. Note the position of the labels on the wall profile.Make sure Label 'T' is to the top and 'B' is to the bottom. Line up the outside edge of the profile with the mark and plumb vertical.
- Page 6 Step3 Remove profile and drill holes for wall brackets with diameter 8mm masonery bit and Ensure wall plugs are flush with tile. insert wall plugs. MG8x51PLUG Insert wall plugs Drill holes for hinge Step 4 Place bottom channel tight to wall offset in 15mm from front edge of the tray Place bottom track on tray...
- Page 7 Step 5 Note which side is labeled OUTSIDE. The side of the panel with the holes is the side fitted againest the wall. Step 6 Push on wall profile completley ensuring end is flush with the top of the glass panel...
- Page 8 Step 7 Fix both wall brackets,do not over tighten. IRF6003-1 INSIDE INSIDE Step 8 Place assembled panel into bottom profile and place tight against wall...
- Page 9 Step 9 Fix wall brackets to the wall. INSIDE INSIDE ST5x65 Step 10 Use timber tool provided and gently tap the wall profile tap the wall profile top to bottom on the inside and outside until it is tight to the wall. MGVC45 MGVC45...
- Page 10 Step 11 11A. Measure distance A from wall to outside edge of glass panel. Outside edge of glass panel 11B. Remove entire panel and bracket assembly and cut bottom profile to distance A. Step 12 Reposition bottom profile and fit fixed panel.Repeat 8-10 ensuring all fixings are securely tightened.Adjust fixings A&B to plumb panel.
- Page 11 Step 13 Fitting cover caps. Peel off protective strip to adhesive tape to back of cap and firmly press in position . ： We recommend that you place a dab of silicone to the back of the cover caps at each end of the tape. INSIDE Step 14 （...
- Page 12 Step 15 Level the rail and mark the position of the bracket on the wall,then mark the fixing point. 2.5mm ALKEY Step 16 2.5mm ALKEY S8GRBSC Drill holes for the rail S8TRSET MG6x30PLUG INSIDE MS8RAWBR MGST4×30BH 4mm ALKEY...
- Page 13 Step 17 Make sure all surfaces are thoroughly cleaned and dry before applying sealant. Seal entire unit from the outside. Use quality silicone sealant and applicator gun to finish the door. OUTSIDE Seal top to bottom between the wall profile and the wall. Seal along the bottom between the profile and the tray/tiled floor.
- Page 14 MERLYN Merlyn Showering Unit 8, Purcellsinch Industrial Park, Dublin Road, Kilkenny, Ireland. Tel: 00353 56 779 1555 Fax: 00353 56 779 1576 www.merlynshowering.com...
