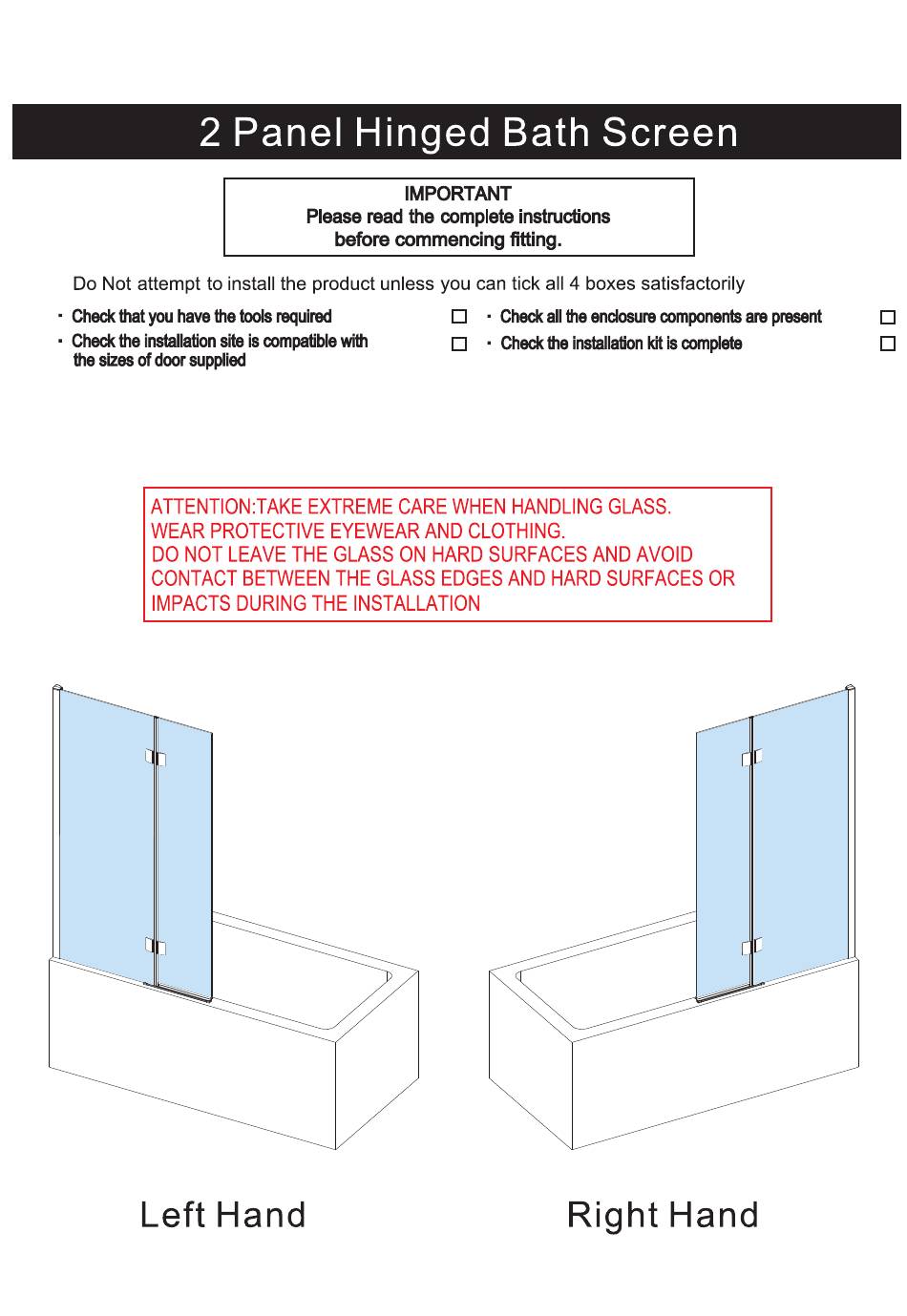

Installation Guide
The wall plugs supplied with the installation kit are for use in solid walls.
Hollow or 'stud partition' walls will require alternative fixings. Please consult
a hardware supplier for the correct type. It may also be necessary to consult
your tiling supplier about the correct method for drilling your tiles.
Advertisement
Related Manuals for MERLYN MB7
Summary of Contents for MERLYN MB7
- Page 1 Installation Guide The wall plugs supplied with the installation kit are for use in solid walls. Hollow or ‘stud partition’ walls will require alternative fixings. Please consult a hardware supplier for the correct type. It may also be necessary to consult your tiling supplier about the correct method for drilling your tiles.
- Page 2 SP0B08060L / SP0B08060R SP0M7009 SP0B08062 N01114 / N01115 SP0M7003 SP0M7005 SP0M7004 SP0M7007 A2401201 SP0M7006 SP0B08070 SP0M7008 A2403001 SP0M7012 parts shown are not to scale 4x40 4x12 SP0B08060L N01114 A2403001 A2401201 SP0B08070 SP0B08092 SP0B08062 SP0M7012 SP0B08060R N01115 SP0M7005 SP0M7008 SP0M7007...
- Page 3 screen inside bath edge 3. Insert the screen into the wall profile. Ensure the bottom edge of the moving panel is parallel to the top surface of the bath. Fig 3. 4. Drill 3 holes through the wall profile and fixed panel using a 3.0mm steel drill bit.
- Page 4 8. Fix the cover cap( SP0M7012 ) to both hinge. Fig 8. 9. Fix the bottom seal. Fig 9.
