DESCRIPTION
Steel structure 80x40
Powder coated
2,4m x 1,7m
CONFORM
European standard
NF EN 16579
The time to make the assembly of the posts is estimated between 30 to 45 minutes at 2 persons (without sealing).
According to the regulation above, this product has to be tested like below:
- Put 180kg at 20cm from the ground and in the middle of the crossbar during 1min.
-Apply an horizontal force of 110 kg on the middle of the crossbar, thanks to a 3 meters rope, during 1min.
After these tests, the equipment and the fixation system should not have break, move or show residual
deformation.
During the first installation, stability and strength tests are compulsory.
Every time you install the equipment, a visual check of the stability and strength must be realized.
The owner of this equipment must usually control the product.
For an optimal use of our products, we advise to follow the installation and maintenance instructions.
The equipment has to be regularly maintained by the owner. It is adviced to:
- Check every week that all the screws are correctly tightened
- Fix paint defects if the module has been damaged, using the adapted paint, specified by the manufacturer.
- Replace all damaged or missing parts with a spare part recommended by the manufacturer.
- Clean the product by using dishwasher soap, clean water, and soft cloth.
It is adviced to do this cleaning once or twice a year, or more in case of aggressive environmental conditions
(seaside...).
One full year parts and labor guarantee. Every claim regarding the condition of the delivered equipment has to be
done within the legal period,of the reception of the material.
The warranty will not apply to:
-
All degradation during the transport.
-
All degradation due to poor maintenance.
-
All degradation due to different use from which was intended
-
Any defect claimed after the end of the legal period.
-
Any damage due to a faulty installation or assembly of the module
PRODUCT REF
Assembly TIME
TEST AFTER INSTALLATION
MAINTENANCE
WARRANTY
PRODUCT SHEET

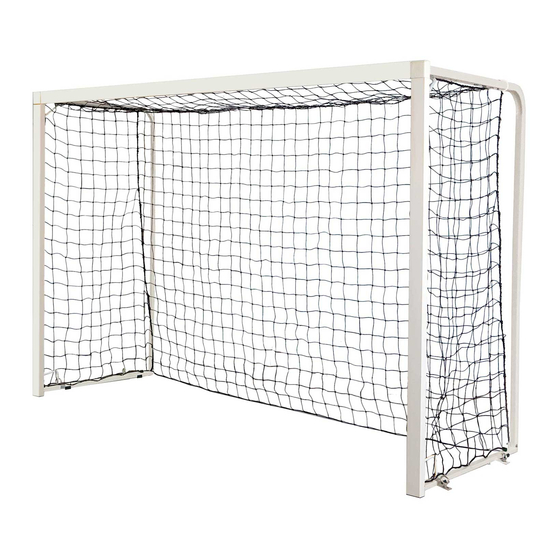

MOBILE HANDBALL GOALS
2,4x1,7 m
S16011
:
PAIR
