Kramer Electronics, Ltd.
USER MANUAL
Model:
VM-1120
1:10 Balanced Stereo Audio Distributor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VM-1120 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kramer VM-1120

Summary of Contents for Kramer VM-1120

  • Page 1 Kramer Electronics, Ltd. USER MANUAL Model: VM-1120 1:10 Balanced Stereo Audio Distributor...

  • Page 2: Table Of Contents

    Figure 3: Stereo (2x1:5 and 1:10) DA Configurations Tables Table 1: Front Panel VM-1120 1:10 Balanced Stereo Audio Distributor Features Table 2: Rear Panel VM-1120 1:10 Balanced Stereo Audio Distributor Features Table 3: VM-1120 1:10 Balanced Stereo Audio Distributor Technical Specifications...

  • Page 3: Introduction

    Kramer line an integral part of the finest production and presentation facilities in the world. In recent years, Kramer has redesigned and upgraded most of the line, making the best even better!

  • Page 4: Your Balanced Stereo Audio Distributor

    A high power discrete buffering system providing excellent performance You can configure your VM-1120 as a mono DA (2x1:10 or 1:20) or as a stereo DA (2x1:5 or 1:10). Achieving the best performance means:...

  • Page 5: Figure 1: Vm-1120 1:10 Balanced Stereo Audio Distributor

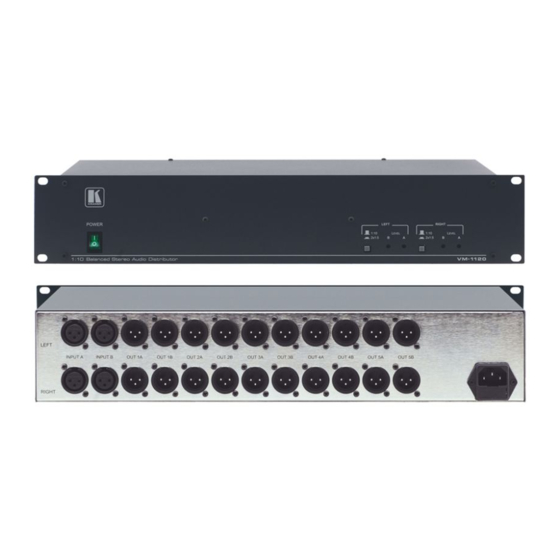

    Your Balanced Stereo Audio Distributor Figure 1: VM-1120 1:10 Balanced Stereo Audio Distributor...

  • Page 6: Configuring Your Balanced Stereo Audio Distributor

    3 Insert a screwdriver into the small hole and carefully rotate it, trimming the OUTPUT level 4 Switch OFF the power on each device before connecting it to your VM-1120. After connecting your VM-1120, switch on its power and then switch on the power on each device...

  • Page 7: A Mono (1:20) Da Configuration Example

    Configuring Your Balanced Stereo Audio Distributor 5.1 A Mono (1:20) DA Configuration Example Figure 2 illustrates an example of a 1:20 mono DA configuration with both 1:10 / 2x1:5 buttons Figure 2: Mono (1:20) DA Configuration 5.2 Two Stereo DA Configuration Examples Figure 3 illustrates 2 separate stereo DA configuration examples: A 2x1:5 DA (example 1) - push in both 1:10 / 2x1:5 buttons This splits inputs A and B to outputs 1A-5A and 1B-5B, respectively...

  • Page 8: Technical Specifications

    Figure 3: Stereo (2x1:5 and 1:10) DA Configurations Technical Specifications Table 3: VM-1120 1:10 Balanced Stereo Audio Distributor Technical Specifications Inputs: 4 mono / 2 pairs of balanced stereo audio, +4dBm 50 k on female XLR connectors Outputs: 20 balanced audio (10 balanced stereo audio), +4dBm / 50 on male XLR connectors...
  • Page 9 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
  • Page 10 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com. Updates to this user manual may be found at http://www.kramerelectronics.com/manuals.html. We welcome your questions, comments and feedback. Kramer Electronics, Ltd. Web site: www.kramerelectronics.com E-mail: info@kramerel.com...
