Kramer VM-1110xl Quick Start Manual

Scan for full manual
Step 1: Check what's in the box
VM-1110xl Balanced Audio Distributor
1 Power cord

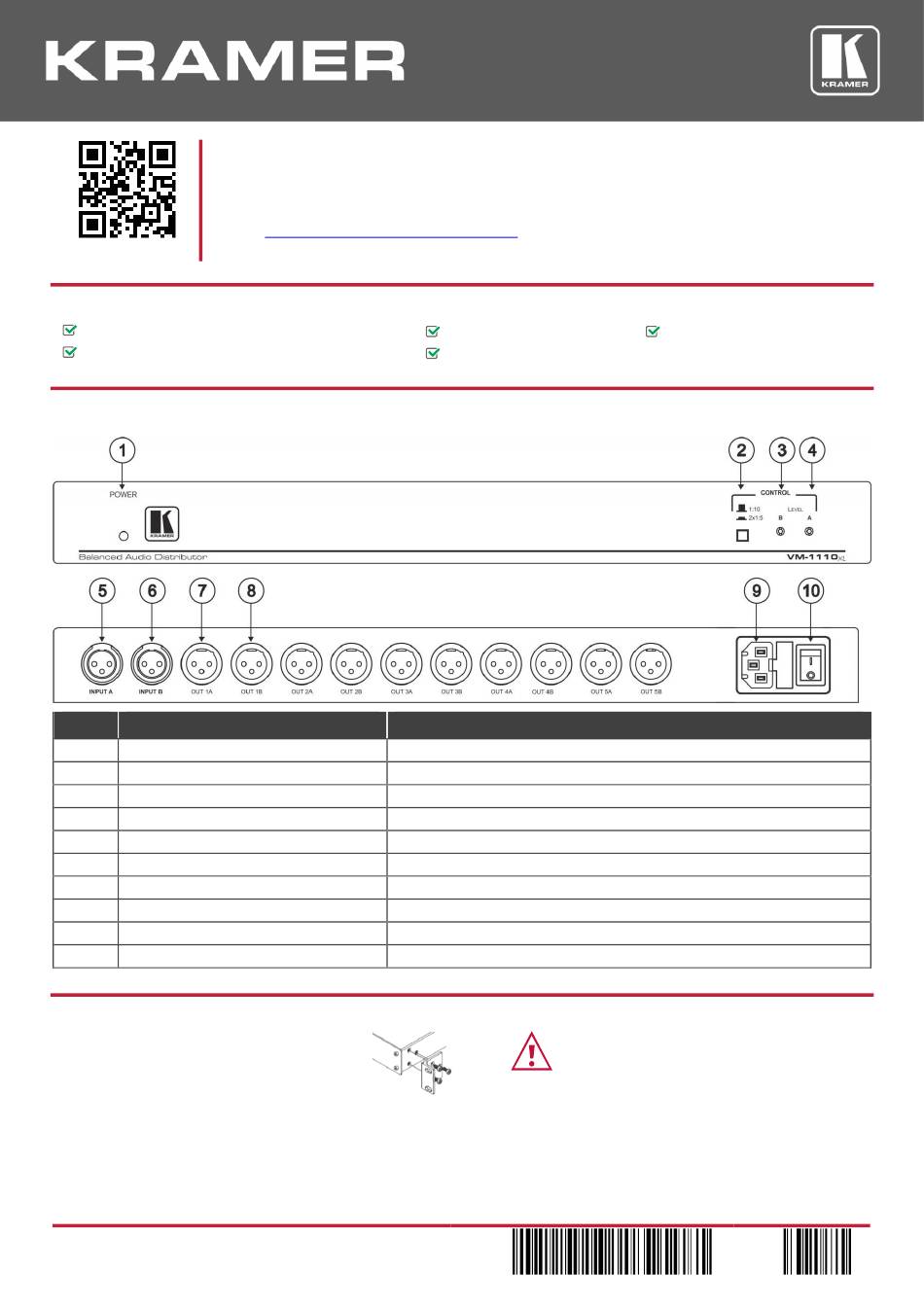

Step 2: Get to know your VM-1110xl
# Feature
1 POWER LED
2 1:10 / 2x1:5 Button
3 LEVEL B Trimmer
4 LEVEL A Trimmer
5 INPUT A XLR Female Connector
6 INPUT B XLR Female Connector
7 OUT A XLR Male Connector
8 OUT B XLR Male Connector
9 Power Connector with Fuse
10 ON/OFF Switch
Step 3: Mount VM-1110xl
To rack mount the machine, attach both rack ears
(by removing the screws from each side of the
machine and replacing those screws through the
rack ears) or place the machine on a table.
VM-1110xl Quick Start
VM-1110xl Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/VM-1110xl
upgrades are available.
Function
Lights when the unit is powered on
Pushing in selects 2x1:5, releasing selects 1:10
Adjusts the output signal level for OUTPUT B
Adjusts the output signal level for OUTPUT A
Connects to the source A
Connects to the source B
Connects to the acceptor A (from 1 to 5)
Connects to the acceptor B (from 1 to 5)
AC connector enabling power supply to the unit
Illuminated switch for powering the unit
VM-1110xl for the first time.
to download the latest user manual and check if firmware
1 Set of rack ears
1 Quick start guide
• Ensure that the environment (e.g., maximum ambient temperature &
air flow) is compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be
used for avoiding overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.
P/N: 2 9 0 0 - 3 0 1 2 6 9 QS
4 Rubber feet
Rev: 2
