Kramer VM-1610 Quick Start Manual

Scan for full manual
Step 1: Check what's in the box
VM-1610 Balanced Audio-Stereo Distributor
1 Power cord

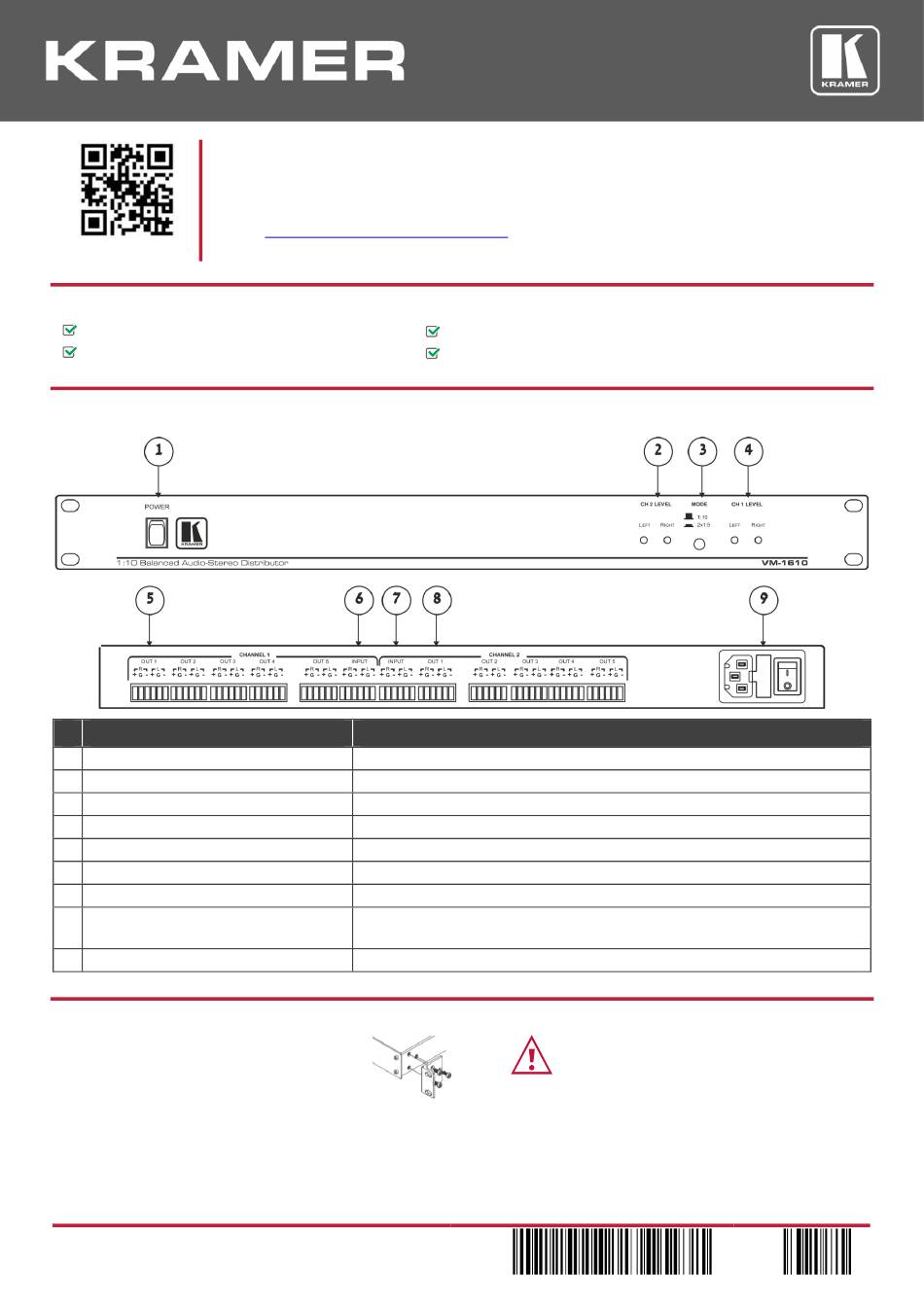

Step 2: Get to know your VM-1610
# Feature
1 POWER Switch
2 CH 2 LEVEL (LEFT, RIGHT) Trimmers
3 MODE (1:10, 2x1:5) Button
4 CH 1 LEVEL (LEFT, RIGHT) Trimmers
5 CHANNEL 1 OUT Terminal Blocks
6 CHANNEL 1 INPUT Terminal Block
7 CHANNEL 2 INPUT Terminal Block
8 CHANNEL 2 OUT Terminal Blocks
9 Power Connector with Fuse
Step 3: Mount VM-1610
To rack mount the machine, attach both rack ears
(by removing the screws from each side of the
machine and replacing those screws through the
rack ears) or place the machine on a table.
VM-1610 Quick Start
VM-1610 Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/VM-1610
upgrades are available.
Function
Illuminated power switch to turn the unit on and off.
Turn to adjust the left and right audio gains of channel 2.
Press to select 2x1:5 output, release to select 1:10 output.
Turn to adjust the left and right audio gains of channel 1.
Connect to the channel 1 balanced stereo acceptors (1 to 5).
Connect to balanced stereo source 1.
Connect to balanced stereo source 2.
Connect to the channel 1 balanced stereo acceptors (6 to 10) or connect to the
channel 2 balanced stereo acceptors (1 to 5).
AC connector enabling power supply to the unit.
VM-1610 for the first time.
to download the latest user manual and check if firmware
4 Rubber feet
1 Quick start guide
• Ensure that the environment (e.g., maximum ambient temperature &
air flow) is compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be
used for avoiding overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.
P/N: 2 9 0 0 - 3 0 1 2 6 8 QS Rev: 2
