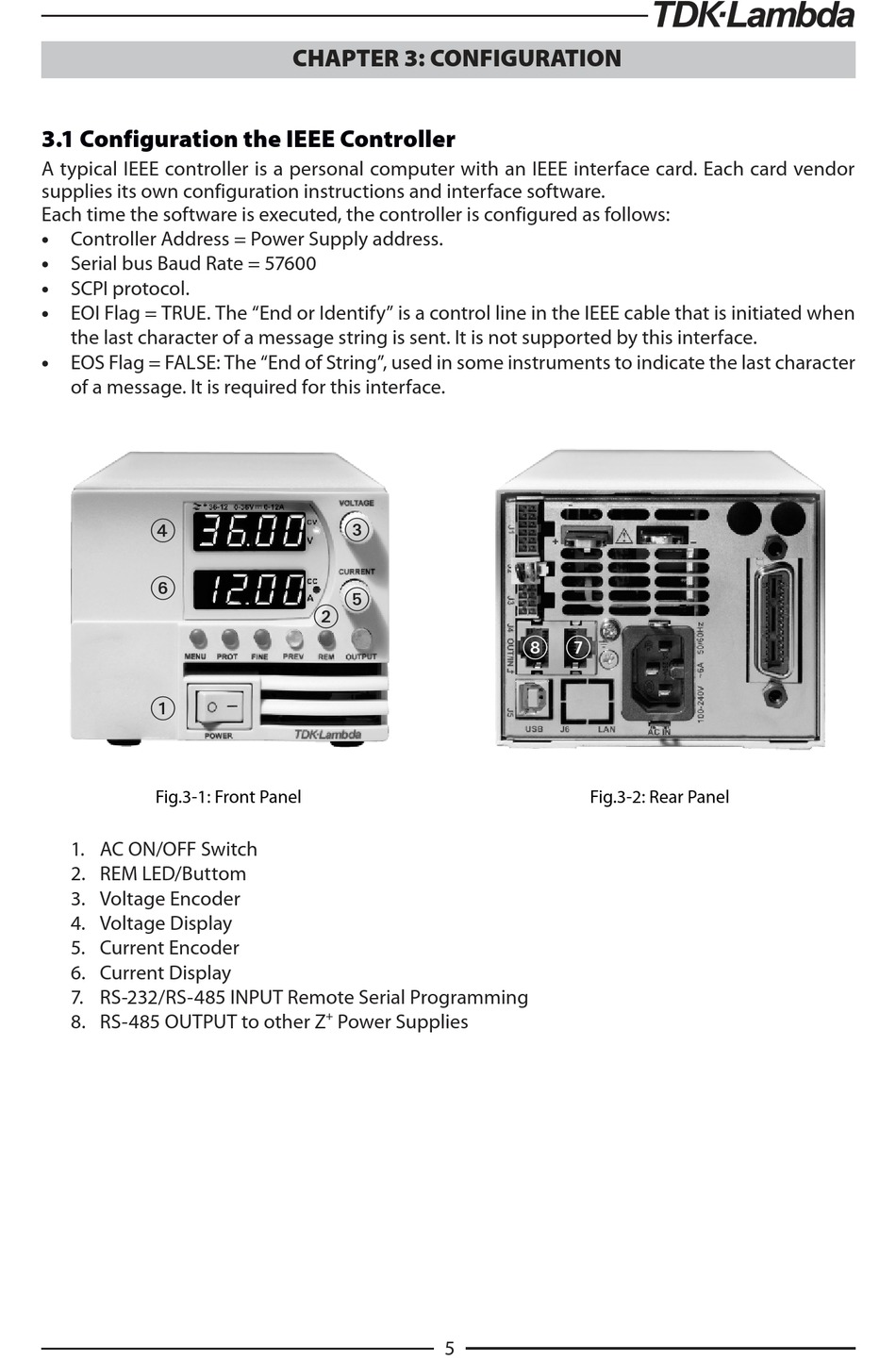

3.1 Configuration the IEEE Controller

A typical IEEE controller is a personal computer with an IEEE interface card. Each card vendor
supplies its own configuration instructions and interface software.
Each time the software is executed, the controller is configured as follows:
Controller Address = Power Supply address.
•
• Serial bus Baud Rate = 57600
• SCPI protocol.
• EOI Flag = TRUE. The "End or Identify" is a control line in the IEEE cable that is initiated when
the last character of a message string is sent. It is not supported by this interface.
EOS Flag = FALSE: The "End of String", used in some instruments to indicate the last character
•
of a message. It is required for this interface.



Fig.3-1: Front Panel
1. AC ON/OFF Switch
2. REM LED/Buttom
3. Voltage Encoder
4. Voltage Display
5. Current Encoder
6. Current Display
7. RS-232/RS-485 INPUT Remote Serial Programming
8. RS-485 OUTPUT to other Z

CHAPTER 3: CONFIGURATION




+
Power Supplies
5
 
Fig.3-2: Rear Panel
