- Page 1 Tuesday, April 2, 13...

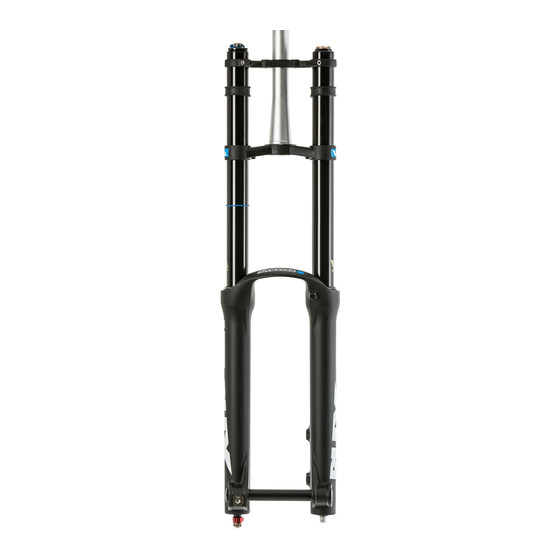

- Page 2 Thank you for purchasing the RUX RC2 DH fork! To insure optimum performance please refer to the quick set -up guide to familiarize yourself with all the features. The RUX is a high performance suspension system & proper set-up can make the difference between a good ride and a great ride! 1.
-
Page 3: Fork Installation
1.FORK INSTALLATION Please have your RUX RC2 DH fork installed by an Authorized bicycle technician. Tuesday, April 2, 13... - Page 4 2. WHEEL & AXLE INSTALLATION The RUX 20mm QR Axle incorporates a uniquely designed tool less method to install & remove the wheel. Proper installation is crucial to securing the front wheel & failure to do so may result in a loose axle. Please follow the step-by-step pictures! STEP 3: Use the red dog bone to STEP:1 Insert wheel into STEP 2: After Installing the...
- Page 5 3. FORK HEIGHT ADJUSTMENT Steeper Head Angle WARNING: Slacker Head Angle Do not go below or above the MIN or MAX lines! Tuesday, April 2, 13...
- Page 6 4. AIR PRESSURE & SAG The RUX RC2 uses air as the main spring. The main spring functions to resist compression of the fork under the riders weight. When setting the air pressure, make sure you wear all your gear in order to achieve your exact riding weight. Helpful info: air pressure is critical for optimum performance.
- Page 7 5. REBOUND DAMPING ADJUSTMENT The RUX RC2 uses an advanced hydraulic cartridge to control both rebound & compression damping. Optimum performance can only be achieved when your settings are dialed in so please take the time to understand these adjustments. Starting Points: -12 Total Clicks of Rebound Adjustment.
- Page 8 6. COMPRESSION DAMPING ADJUSTMENT The RUX RC2 uses an advanced hydraulic cartridge to control both high & low speed compression. Both high & low speed compression can be controlled independently & proper set-up is crucial. Adjusting High Speed Compression: Adjusting Low Speed Compression: 12 total clicks, start with...
- Page 9 7. Tightening Triple Clamps Securely tightening the stanchions into the clamps is extremely important. For safety and performance reasons, please tighten the triple clamp bolts to 6-8 Nm. Tuesday, April 2, 13...
- Page 10 RUX quick set-up guide Thank you for purchasing the RUX RC2 DH fork! To insure optimum performance please refer to the quick set-up guide to familiarize yourself with all the features. The Rux is a high performance suspension system & proper set-up can make the difference between a good ride and a great ride! ...
