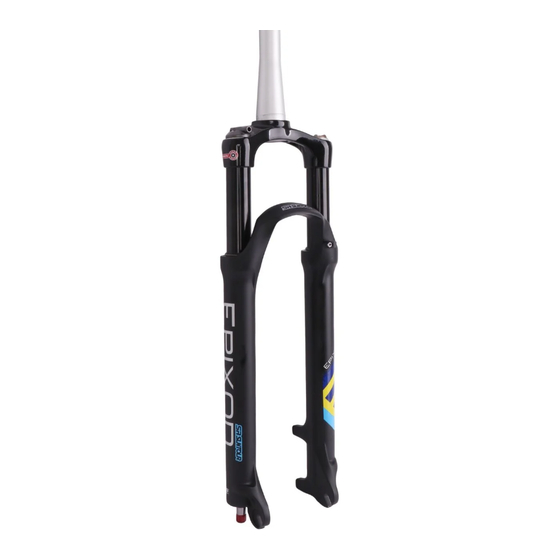

- Page 1 LOWER LEGS SERVICE DUST SEALS REPLACEMENT XCR, RAIDON, EPIXON9, ZERON, MOBIE34, NRX V.1.0_09-2024...
- Page 2 • Rag or workshop towel WARNING Always wear safety glasses and protective gloves during the maintenance of SR SUNTOUR products. REMOVAL: STEP 1 On the damper side, pull on the rebound adjuster knob to remove it, then set it aside.
- Page 3 2-3 times. Check to ensure the bolt is in contact with the leg. Remove the bolt and set it aside. Pull on the lower legs to remove them, and set them aside. SR SUNTOUR / LOWER LEGS SERVICE / DUST SEALS REPLACEMENT...
- Page 4 A) DUST SEAL AND BUSHING LUBRICATION If the dust seals are in good condition, simply clean and degrease them using a clean workshop rag or towel. Clean and grease the bushings as well as the dust seals using the dedicated SR SUNTOUR “Low- Friction” grease.
- Page 5 Repeat the process for the other side. If your fork has foam rings, remove them from both sides and discard them. Use a workshop towel to clean the inner walls of the lower legs. SR SUNTOUR / LOWER LEGS SERVICE / DUST SEALS REPLACEMENT...
- Page 6 If necessary, repeat the process until the seal is flush with the lower leg. Install the new foam rings (picture 6). Grease the bushings and dust seals using the dedicated SR SUNTOUR “Low-Friction” grease. SR SUNTOUR / LOWER LEGS SERVICE / DUST SEALS REPLACEMENT...
- Page 7 Clean the stanchions. Fully extend the damper cartridge and install the lower legs. STEP 7 Make sure the damper cartridge shaft is aligned with the lower leg hole. If not, use a 3mm Allen key to center the shaft. SR SUNTOUR / LOWER LEGS SERVICE / DUST SEALS REPLACEMENT...
- Page 8 (turning it clockwise). Remove the Allen key and reinstall the rebound adjuster knob by pressing it into the bolt. AIR SIDE Install both the washer and bolt. Use a torque wrench with 5mm Allen bit and tighten to 8Nm. SR SUNTOUR / LOWER LEGS SERVICE / DUST SEALS REPLACEMENT...
