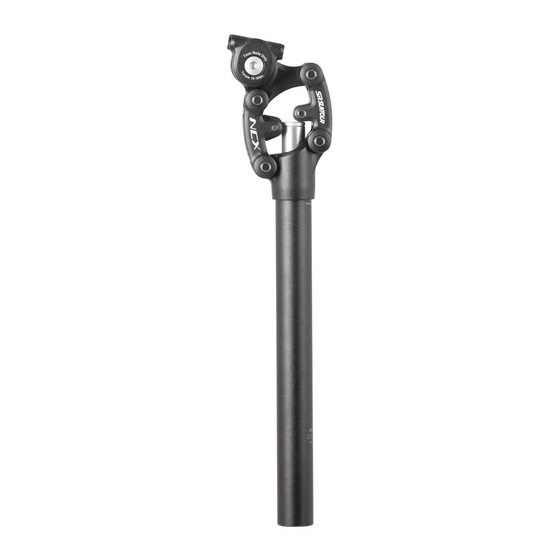

Suspension seatpost

Advertisement

SUSPENSION SEATPOST
OWNER'S MANUAL
This instruction sheet contains important information about the correct installation,
service and maintenance of your suspension seatpost. Nevertheless please be
informed that special knowledge is essential to install, service and maintain the SR
SUNTOUR suspension seatpost. Common mechanical knowledge may not be
sufficient to repair, service or maintain it. Therefore we strongly recommend getting
your suspension seatpost installed, serviced and/or maintained by a trained and
qualified bike mechanic. Improper installation, service or maintenance can result in
failure of the product, accident, injury or even death.
Important safety information..............................................................................2
Before every ride....................................................................................................2
Suspension seatpost installation.........................................................................3
Installation instruction..........................................................................................4
Pre-load adjustment............................................................................................5
Maintenance..........................................................................................................6
We have language options for CN, DE, EN, ES, FR, IT, JA & NL on our
website. Please navigate to:
www.srsuntour-cycling.com > Service > Download area > Consumer
Downloads > Bike > Owners manuals > Suspension seatpost Manual
WARNING !
ENGLISH
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NCX 2019 and is the answer not in the manual?

Questions and answers

Summary of Contents for SR Suntour NCX 2019

  • Page 1: Table Of Contents

    SUSPENSION SEATPOST OWNER’S MANUAL WARNING ! This instruction sheet contains important information about the correct installation, service and maintenance of your suspension seatpost. Nevertheless please be informed that special knowledge is essential to install, service and maintain the SR SUNTOUR suspension seatpost. Common mechanical knowledge may not be sufficient to repair, service or maintain it.
  • Page 2: Important Safety Information

    Ø Read this manual thoroughly before using your suspension seatpost. Ø Use only genuine SR SUNTOUR parts. The use of aftermarket replacement and spare parts voids the warranty of your seatpost and might cause failure. This could result in an accident, injury or even death.
  • Page 3: Suspension Seatpost Installation

    SUSPENSION SEATPOST INSTALLATION WARNING ! We strongly recommend that your suspension seatpost is installed and set up by a qualified and trained bicycle mechanic. Improper installation can result in failure of the product, accident, injuries or even death. If you are going to install the suspension seatpost by your own, the installation should be inspected by a trained and qualified bicycle mechanic.
  • Page 4: Installation Instruction

    INSTALLATION INSTRUCTION 1. Unscrew the two fixing bolts on both sides using a 5mm Allen wrench. Unscrew them until the rail of the saddle can fit between the 2 halves of the clamp. 2. Install the saddle by inserting the rail into the clamp from one side.
  • Page 5: Preload Adjustment

    PRELOAD ADJUSTMENT WARNING ! Proper preload adjustment is critical for the safe functioning of the SUSPENSION seatpost. Repeated bottoming- or topping-out under use can lead to a structural failure of the suspension seatpost, resulting in accidents and/or injuries. 1. Check the adjustment: With somebody’s support, sit on the bike with your hands and feet positioned normally.
  • Page 6: Maintenance

    2. Unscrew the adjuster bolt and slide out the coil spring. 3. Clean the seatpost from the in- and outside. 4. Grease the seatpost inside (use SR SUNTOUR No. 9170-001 grease). Lubricate the pressure roller. Additionally you should lubricate the joints. We recommend bicycle chain lubricant.
  • Page 7 For further information please visit www.srsuntour-cycling.com. There you will also find: u Service request: http://www.srsuntour-cycling.com/service/service-request u Tech videos: http://www.srsuntour-cycling.com/service/tech-videos u Download area: http://www.srsuntour-cycling.com/service/download-area u Owners manuals: http://www.srsuntour-cycling.com/service/download-area/consumer- downloads/bike/owners-manuals/ u Warranty: http://www.srsuntour-cycling.com/service/warranty KAE802 Copyright © 2019 SR SUNTOUR Inc. All rights reserved.
