Extech Instruments RH600 User Manual page 30

10
PC Interface

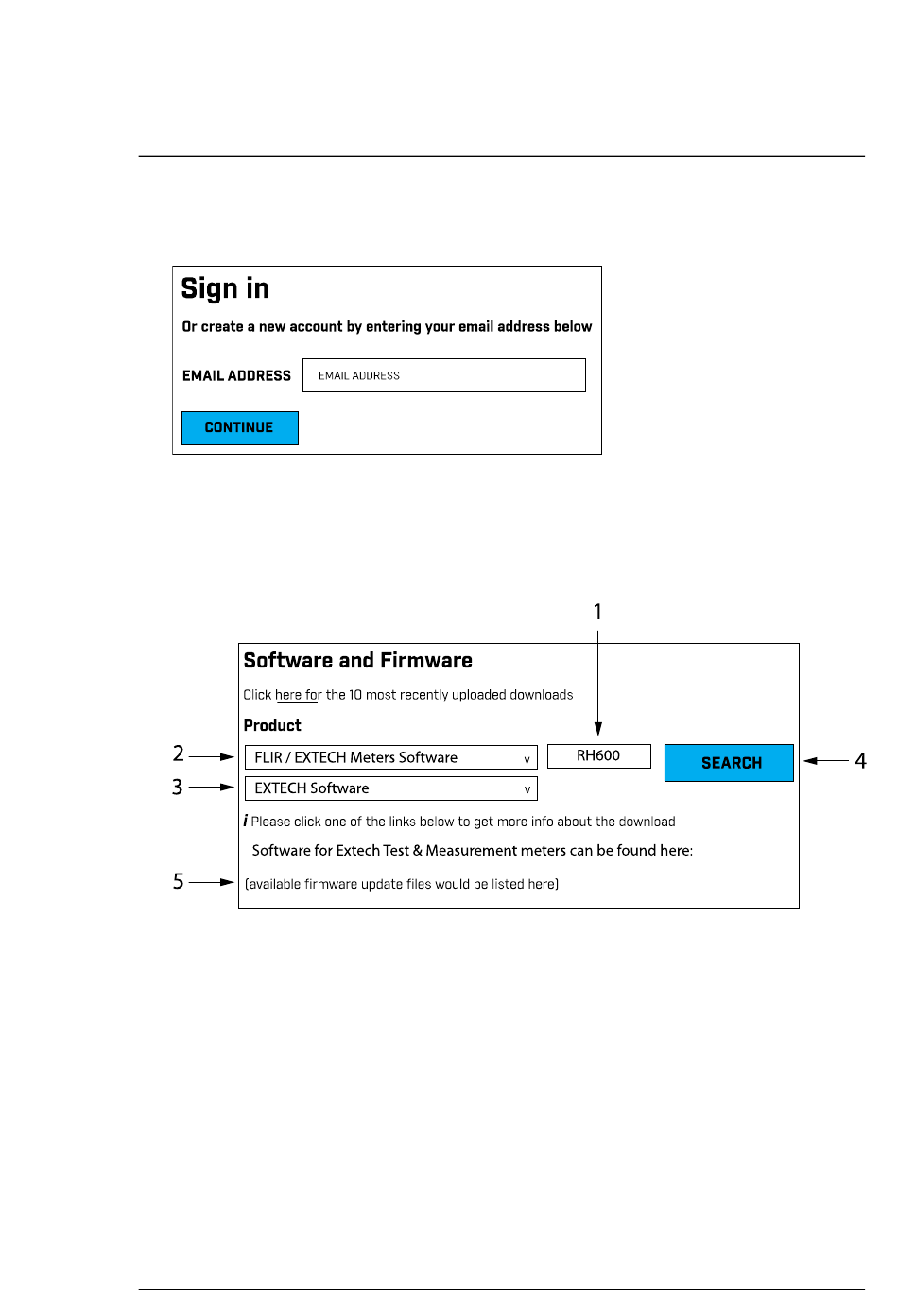

4. Type your Email Address to log in or to create an account, as shown.
Click Continue.
5. For Figure 10.3, below, 1. Type RH600 in the search field; 2. Select FLIR /
Extech Meters Software from the pull-down menu; 3. Select Extech
Software from the pull-down menu; 4. Click SEARCH; 5. Click the update
file to download it to your PC.
Figure 10.3 Follow the steps to complete the download process.
6. Clear the RH600 memory by navigating to Recording in the programming
menu and selecting Clear Data Memory. Save any important data (Sec-
tion 8.8) before performing this step as all user data will be lost once you
clear the data.
7. With the RH600 powered OFF, hold the UP and DOWN arrow buttons
while powering ON the RH600 (short press F2). Release the arrow but-
tons when you see UBOOT on the RH600 display.
8. Connect the RH600 to the PC using the supplied USB cable.
#NAS100113; r. AA/87024/87024; en-US
26
