Summary of Contents for Extech Instruments RH600
- Page 1 Quick Start Dew Point Meter RH600...

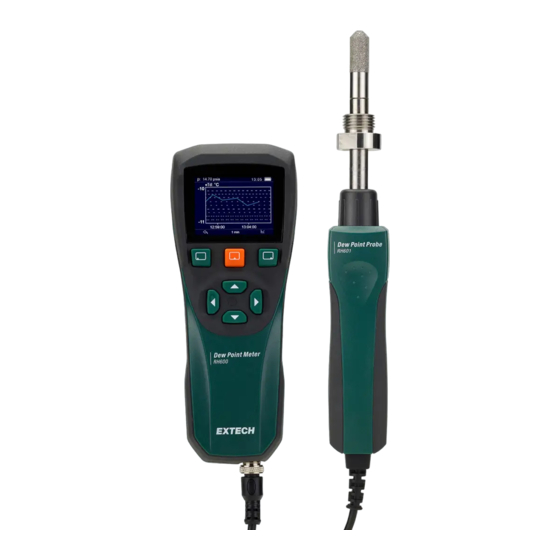

- Page 2 The threaded probe can be directly mounted in a process or held freely in ambient air. The RH600 can record up to 32,000 readings using the Data Log- ger and Data Hold functions. Readings can be viewed directly on the RH600 display or on a PC. For complete information, refer to the user manual available on the Extech website.
- Page 3 2. Color LCD. 3. Function buttons (F1, F2, F3, left to right). 4. Navigation/programming arrow buttons. 5. Probe connector. Battery compartment and mounting hole located on back of RH600 PROBE (RH601) 1. Sensor tip with protective cap. 2. Mounting threads (0.5 inch).
- Page 4 HOME PAGE Short press F2 to switch ON the RH600. The Home page, shown below, will appear. 1. Battery voltage status. 2. Temperature reading. 3. Selectable reading. 4. Programming menu (press F3). 5. Data Hold (press F2). 6. View real-time readings plotted on graphs (press F1).
- Page 5 See the user manual for full details. Functions menu Configure and activate the low and high alarms. Initiate meter-to- PC communication after connecting the RH600 to a PC with the supplied USB cable. Recording menu Configure and start/stop the data logger. View data, erase data, and transfer data to a PC.
- Page 6 READING RANGES AND RESOLUTION See User Manual for complete specifications. Reading Range and Resolution Temperature (T) 14.00 to 140.00℉ (-10.00 to 60.00℃) Dew/Frost point temperature (T d/f) -58.00 to 86.00℉ (-50.00 to 30.00℃) Dew point temperature (Td) -58.00 to 86.00℉ (-50.00 to 30.00℃) Dew/Frost point in atmospheric pres- -58.00 to 68.00℉...
- Page 8 Quick Start last page Website http://www.flir.com Customer support http://support.flir.com Copyright © 2022, FLIR Systems, Inc. All rights reserved worldwide. Disclaimer Specifications subject to change without further notice. Models and accessories subject to regional market considerations. License procedures may apply. Products described herein may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions.
