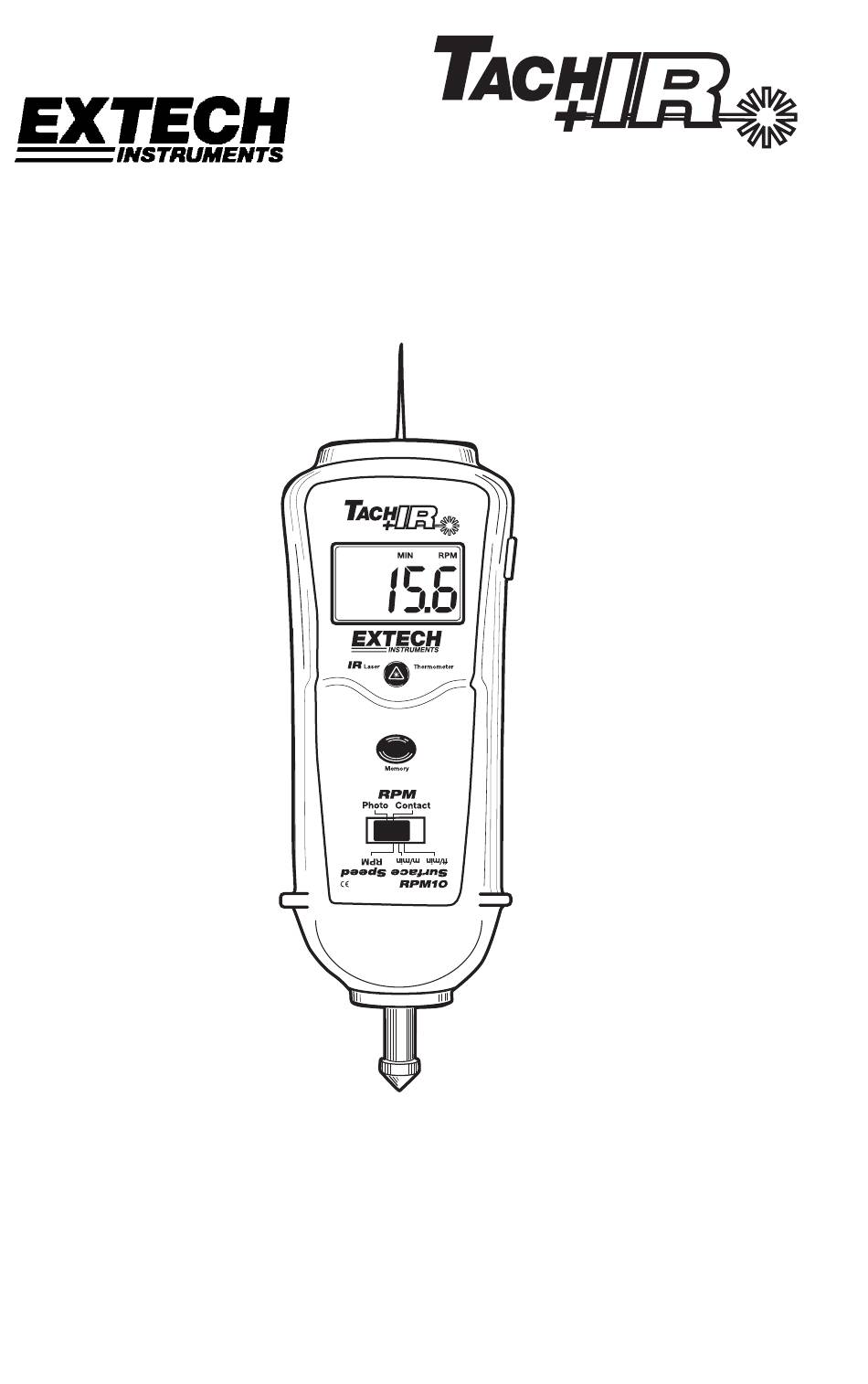

- Page 1 User's Guide Model RPM10 Laser Photo / Contact Tachometer with IR Thermometer Patented...

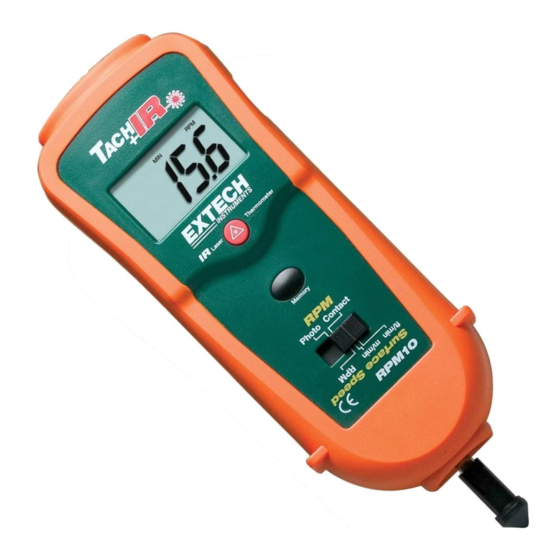

- Page 2 Introduction Congratulations on your purchase of Extech's Laser Photo/Contact Tachometer with Non- Contact IR Thermometer, Model RPM10. This Tachometer provides contact RPM and Linear Surface Speed measurements, non-contact RPM measurements and IR temperature measurements. The laser pointer beam provides accurate long distance measurements for photo tachometer measurements and also identifies the measurement spot for the non-contact temperature tests.
- Page 3 Meter Operation Reversible LCD Display The meter display indicates Photo Tachometer and IR thermometer measurements in one direction and Contact measurements in the opposite direction. This permits the user to easily read the measurement digits in both measurement modes with the meter held in either direction.
- Page 4 CONTACT TACHOMETER RPM MEASUREMENTS Install one of the RPM contact tips on the contact shaft. Move the Function switch to the CONTACT position. Press the Measure button while lightly pressing the contact tip RPM Contact against the center of a rotating shaft. Tips Release the Measure button when the display stabilizes (approx.
- Page 5 NON-CONTACT TEMPERATURE MEASUREMENTS Point the meter at the surface to be measured. Press the red IR thermometer button. Use the laser pointer to identify the exact spot to be measured. The area of the surface to be measured must be larger than the spot size as determined by the distance to spot size specification.
-
Page 6: Specifications
Specifications Quartz crystal 4.9152 MHz Time base Reversible 5 digit 0.6" (16mm) LCD display Display Less than 1mW; Class 2 red laser diode (645nm approx.) Laser light source 2 to 79" (50 to 2000 mm) depending on ambient light and RPM Detecting Distance Last reading and MIN/MAX readings Memory... -
Page 7: Battery Replacement
Warranty EXTECH INSTRUMENTS CORPORATION warrants this instrument to be free of defects in parts and workmanship for one year from date of shipment (a six month limited warranty applies to sensors and cables). If it should become necessary to return the instrument for service during or beyond the warranty period, contact the Customer Service Department at (781) 890-7440 ext.
