Rigol PHA2150 User Manual

Rigol PHA2150 User Manual

Pha high-voltage differential probe

Advertisement

Quick Links

User Guide
PHA High-Voltage Differential
Probe
Apr. 2022
RIGOL TECHNOLOGIES CO., LTD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PHA2150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rigol PHA2150

  • Page 1 User Guide PHA High-Voltage Differential Probe Apr. 2022 RIGOL TECHNOLOGIES CO., LTD...
  • Page 3: Guaranty And Declaration

    RIGOL products are covered by P.R.C. and foreign patents, issued and pending. RIGOL reserves the right to modify or change parts of or all the specifications and pricing policies at the company’s sole decision. Information in this publication replaces all previously released materials.
  • Page 4: General Safety Summary

    RIGOL General Safety Summary CAUTION This device involves the high-voltage measurement. To use the device safely and ensure your personal safety, please carefully read and observe the instructions specified in this manual before using the device. Safety Terms and Symbols Before using the device, read the following safety notices carefully.
  • Page 5: Safety Precautions

    RIGOL Safety Precautions CAUTION Beware of high voltages to avoid electric shock. Understand the maximum input voltage for the probe. Do not operate in wet conditions or in an explosive atmosphere. Before use, please check whether the exterior of the probe is damaged. If damaged, stop using it.
  • Page 6: Table Of Contents

    RIGOL Contents Guaranty and Declaration ..........I General Safety Summary ..........II Safety Terms and Symbols ..........II Safety Precautions ............III General Inspection ............1 PHA High-Voltage Differential Probe ......... 2 Probe Components ............4 Probe Component Description ..........5 To Use the Probe ...............
  • Page 7: General Inspection

    RIGOL General Inspection Inspect the packaging RIGOL has carried out strict inspections on each product before leaving the factory. When you receive the product, please check whether the packaging is intact. If the packaging has been damaged, do not dispose...
  • Page 8: Pha High-Voltage Differential Probe

    High bandwidth to meet the requirements of most high-frequency test system PHA0150: 70 MHz; PHA1150: 100 MHz; PHA2150: 200MHz Diversified ranges and two attenuations to meet the requirements for most common-mode test circuit 50X: 150 V (DC + peak AC);...
  • Page 9 RIGOL the alarm can be disabled manually Auto memory function, capable of automatically saving the working status that was set before it is shutdown Note When the bandwidth is limited to 5 MHz, the internal output circuit of the PHA series probe is connected to a 5 MHz low-pass network.
  • Page 10: Probe Components

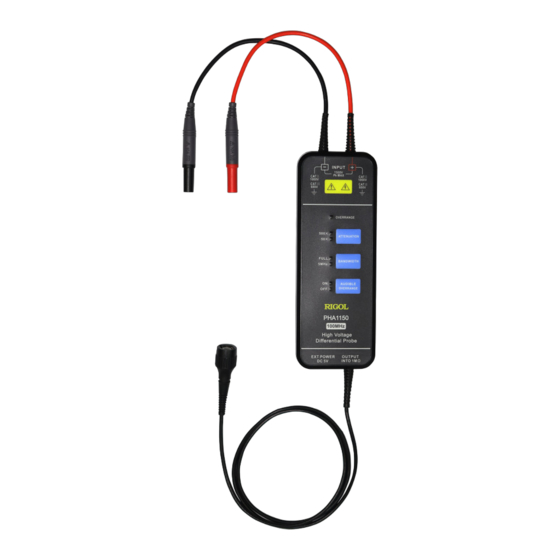

    RIGOL Probe Components The PHA series probe consists of PHA0150, PHA1150 and PHA2150. This manual takes PHA1150 as an example to introduce the components of the PHA series probe. High-Voltage Differential Input Cable Voltage Max. Differential Mode Input Voltage-to-Earth Maximum Input...
  • Page 11: Probe Component Description

    FULL: indicates the full specified bandwidth of the probe. For PHA0150, its full bandwidth is 70 MHz; for PHA1150, its full bandwidth is 100 MHz; for PHA2150, its full bandwidth is 200 MHz. 5 MHz: When measuring the low-frequency signal, to reduce the interference of the high-frequency signal, you can select the 5 MHz bandwidth.
  • Page 12 RIGOL Audible Overrange Alarm On/Off Button ON: Turns on the alarm beeper. OFF: Turns off the alarm beeper. When ON, an audible alarm will be sounded once the voltage under test exceeds the probe range. Load Impedance The output impedance of the probe is 50 . When the input impedance of the load (e.g.
  • Page 13: To Use The Probe

    RIGOL To Use the Probe Before using the current probe, make sure to refer to Safety Precautions. Preparation for Measurement Evaluate the amplitude of the voltage under test and check whether it is within the voltage range of the probe. If it is beyond the max. range of the probe, please replace a proper probe.
  • Page 14 RIGOL the probe range. Then adjust the range of the instrument based on the voltage under test. Select a proper probe clip according to the object under test. Connect one end of the clip to the input cable of the probe and connect the other end to the object under test.
  • Page 15: Precautions During Measurement

    RIGOL Precautions During Measurement CAUTION Before measurement, try to twist the high-voltage differential input cables as much as possible, which can better reduce the interference of the lead inductance and external noise to improve the anti-interference ability of the probe. The twisting method is shown in the figure below: Figure 2 Twisting the High-Voltage Differential Input Cable Try not to extend the input cable, as this will bring more noises.
  • Page 16 RIGOL Figure 4 Waveforms Generated with the Input Cable Being Extended PHA User Guide...
  • Page 17: Failures And Troubleshooting

    RIGOL Failures and Troubleshooting Failures Troubleshooting Description 1. Check whether the power adapter plug and the power socket are properly connected. The indicators on the 2. Check whether the power adapter output panel blink or do not and the probe power interface are properly light.
  • Page 18: Specifications

    RIGOL Specifications Technical Specifications Characteristics PHA2150 PHA0150 PHA1150 50X: 160 MHz Bandwidth (-3 dB) 70 MHz 100 MHz 500X: 200 MHz 50X: 2.4 ns Rise Time (Typical 2.2 ns) 500X: 2 ns (Typical 1.8 ns) Accuracy ±2% Range (Attenuation) 50X/500X Maximum Measurable Differential 50X: ±150 V...
  • Page 19: Mechanical Characteristics

    EN61010-1:2010 EMC Standards EN61326-1:2013; EN61000-3-3:2013 EN61000-3-2:2006+A1:2009+A2:2009 Mechanical Characteristics PHA0150 PHA1150 PHA2150 Probe Dimensions 176 mm x 65 mm x 25 mm Probe Body Weight 216 g Insulated Plunger Hook Clip 152 mm x 50 mm x 13 mm Alligator Clip...
  • Page 20: Working Environment

    RIGOL Working Environment Environment Description Characteristics to 50 Operating Temperature Storage Temperature to +70 Operating Humidity Storage Humidity Operating Altitude 3,000 m Storage Altitude 12,000 m PHA User Guide...
  • Page 21: Appendix

    RIGOL Appendix Appendix 1 Max. Differential Mode Voltage vs Freq. Figure 5 PHA0150/PHA1150/PHA2150 Max. Differential Mode Voltage vs Freq. Appendix 2 Package List This section lists the standard accessories of the PHA series probe. Table 1 Standard Accessories of the PHA Series Probe...
  • Page 22: Appendix 3 Warranty

    Appendix 3 Warranty RIGOL TECHNOLOGIES CO., LTD. (hereinafter referred to as RIGOL) warrants that the product will be free from defects in materials and workmanship within the warranty period. If a product proves defective within the warranty period, RIGOL guarantees free replacement or repair for the defective product.
