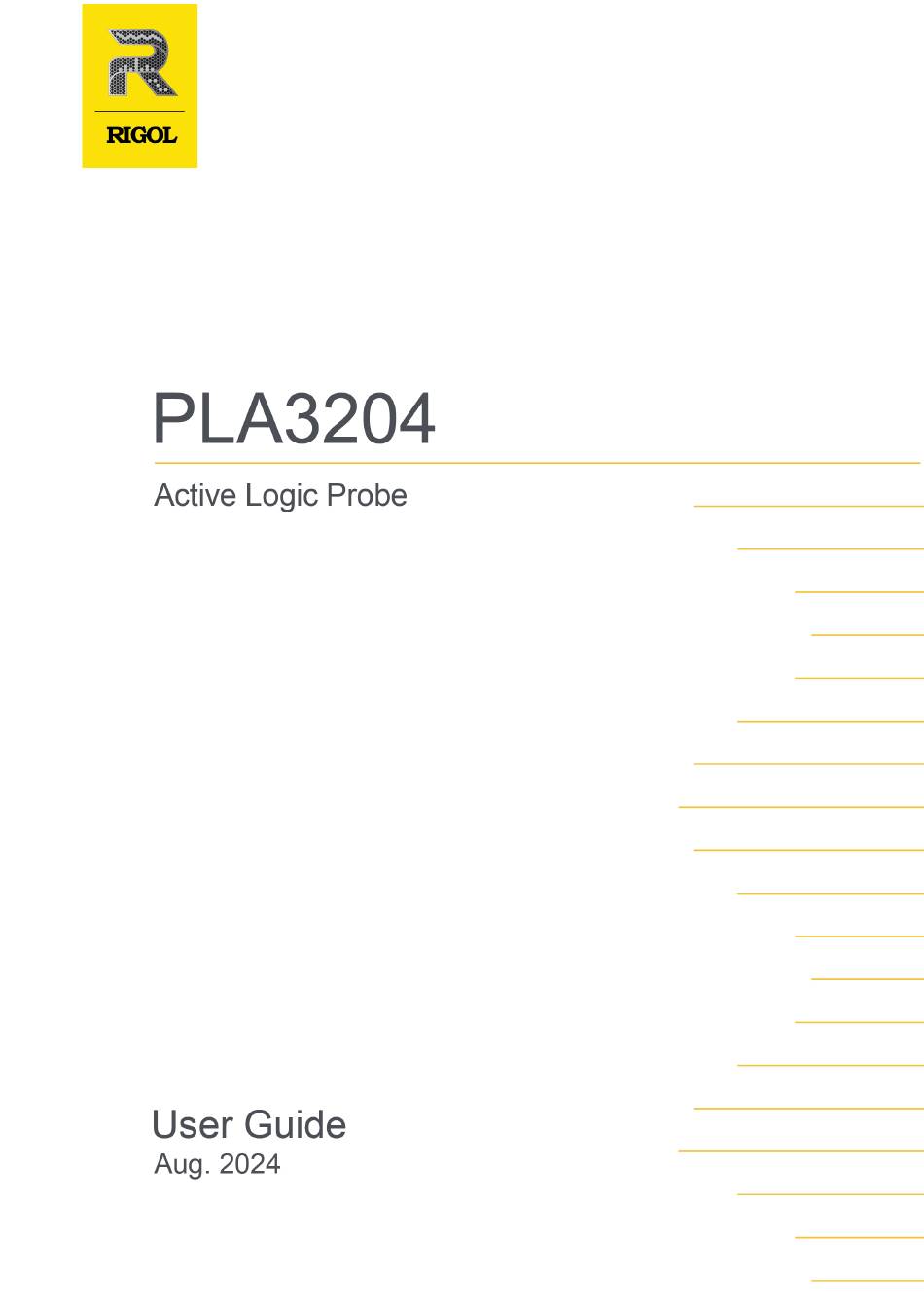

- Page 2 • RIGOL products are covered by P.R.C. and foreign patents, issued and pending. • RIGOL reserves the right to modify or change parts of or all the specifications and pricing policies at the company's sole decision. • Information in this publication replaces all previously released materials.
- Page 3 3 General Inspection ......................5 4 Product Overview ......................6 5 To Use the Probe ......................6 Specifications ........................7 Accessories ........................11 8 Care and Cleaning ......................9 Warranty ........................... Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. PLA3204 Active Logic Probe User Guide...
- Page 4 List of Figures Figure 4.1 PLA3204 Active Logic Probe ................6 PLA3204 Active Logic Probe User Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. Guide...
- Page 5 • Do Not Operate with Suspected Failures. If you suspect that there is damage to the product, have it inspected by RIGOL authorized personnel before further operations. Any maintenance, adjustment or replacement especially to circuits or accessories must be performed by RIGOL authorized personnel.
- Page 6 The equipment may contain substances that could be harmful to the environment or human health. To avoid the release of such substances into the environment and PLA3204 Active Logic Probe User Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. Guide...
- Page 7 You can click on the following link https://int.rigol.com/services/services/declaration to download the latest version of the RoHS&WEEE certification file. Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. PLA3204 Active Logic Probe User Guide...
- Page 8 This manual gives you a quick overview of the technical specifications and basic operation methods of the PLA3204 Active Logic Probe. http:// For the latest version of this manual, download it from RIGOL official website ( www.rigol.com Publication Number UGE39100-1110 PLA3204 Active Logic Probe User Copyright ©RIGOL TECHNOLOGIES CO., LTD.
- Page 9 The consigner or carrier shall be liable for the damage to the instrument resulting from shipment. RIGOL would not be responsible for free maintenance/rework or replacement of the instrument. 2. Check the probe In case of any mechanical damage, missing parts, or failure in passing the electrical and mechanical tests, contact your RIGOL sales representative.
- Page 10 RIGOL MHO/DHO5000 series digital oscilloscope via its USB Type-C connector, enabling the logic analyzer function. PLA3204 contains 4 data channels and 8 ground channels. On the label of the probe head, all data channels are marked with numbers for you to identify different channels.
- Page 11 2. Connect PLA3204 to Signal under Test. You can connect any number (≤4) of signals under test to each PLA3204 probe as required. Note that the amplitude of the input signal cannot exceed the maximum working voltage range of the probe. To cater to different applications, the Copyright ©RIGOL TECHNOLOGIES CO., LTD.
- Page 12 PLA3204 to the signal under test. - Method 1: connect the PLA3204 to the double row pin header on the DUT, as shown in the figure below. - Method 2: connect the signals under test to the leads separately. You can easily identify the corresponding channel of each signal by the color marker band on each lead.
- Page 13 Do not connect signals to the PLA3204 input terminals in calibration. 4. Function Inspection. Follow the instructions to connect the PLA3204 probe to the oscilloscope and set the probe. Connect the logic signals to the probe. After finishing the operations above, the signal under test will be displayed on the corresponding digital channel on the oscilloscope screen.
- Page 14 About 120 cm Lead length About 25 cm Operating Environment 0℃ to 50℃, 0 to 80% RH Storage Environment -20℃ to 60℃, 0 to 90% RH PLA3204 Active Logic Probe User Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. Guide...
- Page 15 Accessories Accessories Accessories Quantity Lead Probe Clip Product Warranty Card Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. PLA3204 Active Logic Probe User Guide...
- Page 16 WARNING To avoid short circuits or personal injury caused by moisture, make sure that the probe is completely dry before use. PLA3204 Active Logic Probe User Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. Guide...
- Page 17 RIGOL guarantees free replacement or repair for the defective product. To get repair service, please contact your nearest RIGOL sales or service office. There is no other warranty, expressed or implied, except such as is expressly set forth herein or other applicable warranty card.
