ACM500 Control Ports - IR Control

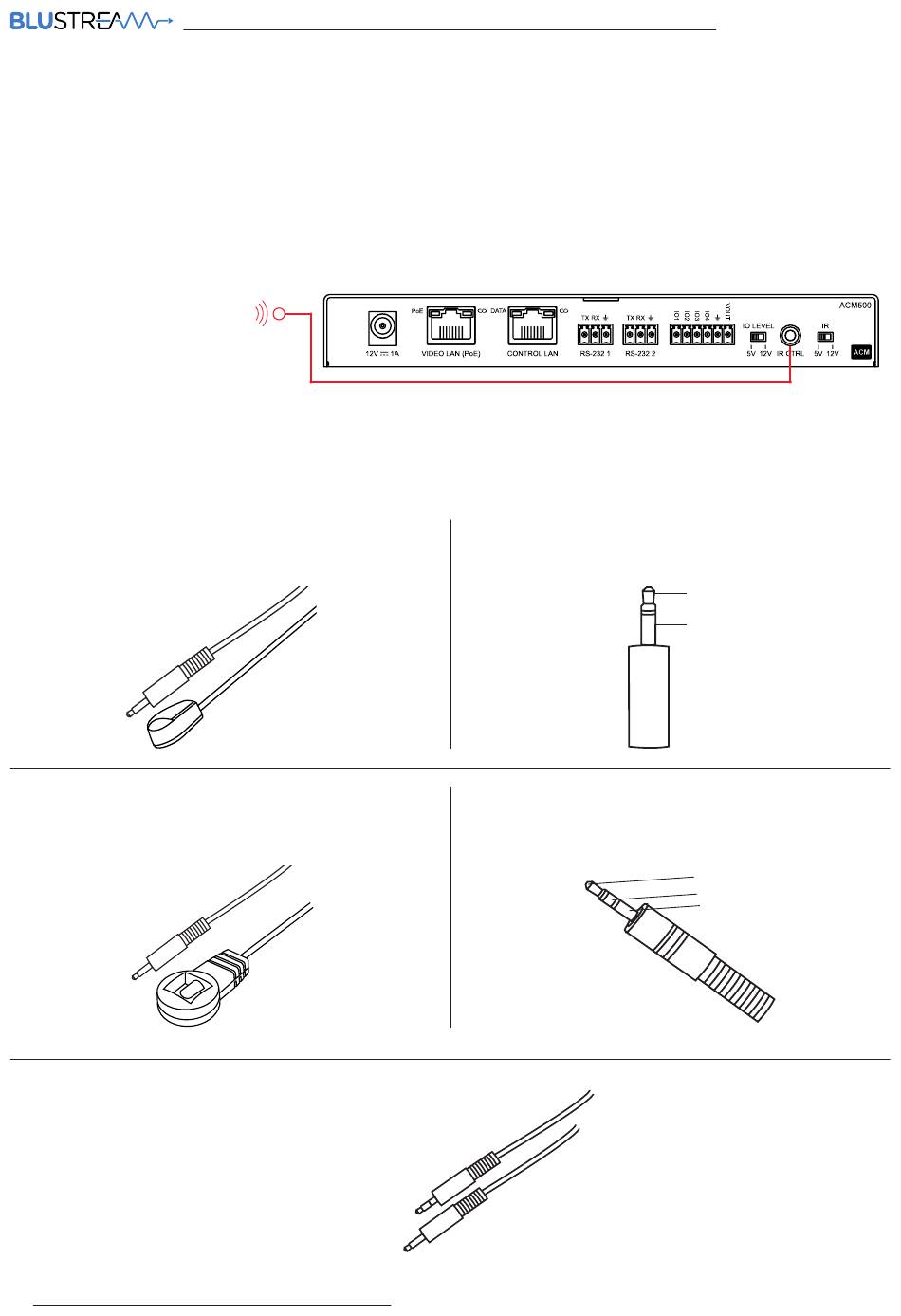

The Multicast system can be controlled using local IR control from a third party control system. Source selection is the
only feature available when using local IR control - advanced features of the ACM500 such as video wall mode, audio
embedding etc. can only be achieved using RS-232 or TCP/IP control.
Blustream have created 16x input & 16x output IR commands allowing source selection of up to 16x IP500UHD-TZ's in
Transmitter mode on up to 16x IP500UHD-TZ's in Receiver mode. For systems larger than 16x inputs or outputs, RS-232
or TCP/IP control will be required.
Third Party Control System
(source selection only)
The ACM500 is compatible with both 5V and 12V IR equipment. When the ACM500 is being used to receive an IR input
into the IR CTRL port, the adjacent switch must be toggled correctly to suit the IR voltage line of the chosen control
system before connection.
Please note: Blustream IR cabling is all 5V
IR Emitter - IER1 & IRE2 (IRE2 sold separately)
Blustream 5V IR Emitter designed for discrete IR control
of hardware
IR Receiver - IRR
Blustream 5V IR receiver to receive IR signal and
distribute through Blustream products
IR Control Cable - IRCAB (sold separately)
Blustream IR Control cable 3.5mm Mono to 3.5mm
Stereo for linking third party control solutions to
Blustream products.
Compatible with 12V IR third party products.
Please note: cable is directional as indicated
06
Rx Tx Gnd
IR IR
CH Select
TX RX RS-232
Infrared 3.5mm Pin-Out
IR Emitter - Mono 3.5mm
IR Receiver - Stereo 3.5mm
www.blustream.com.au
ACM500
MULTICAST UHD
CH
Signal
Ground
Signal
5V
Ground
| |
