ACM500 Control Ports

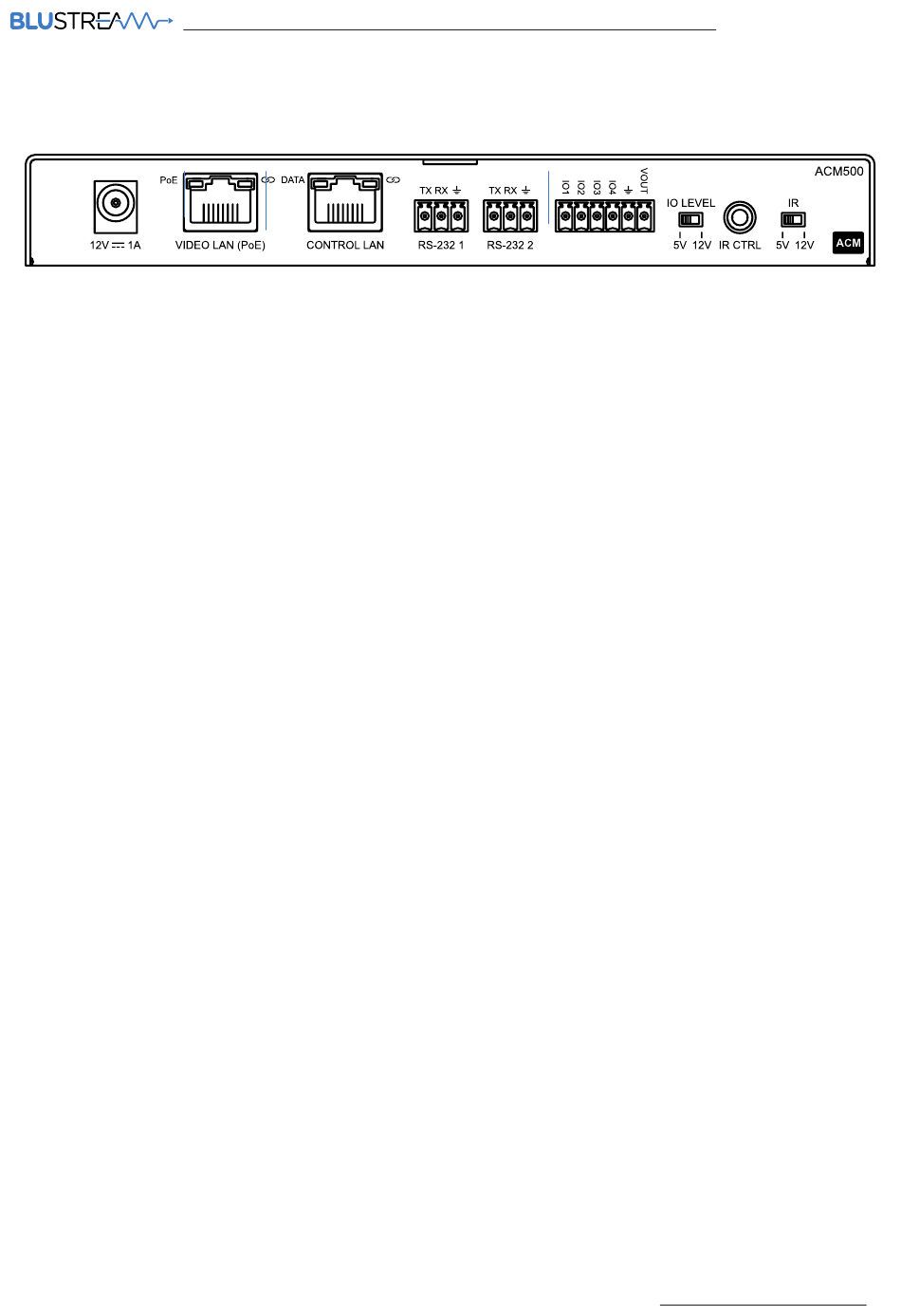

The ACM500 communication ports are located on rear of the unit and include the following connections:
Connections:
A. TCP/IP – for full Multicast system control (RJ45 connector)
B. RS-232 – for full Multicast system control / RS-232 guest mode (3-pin Phoenix)
C. Infrared (IR) Input - 3.5mm stereo jack - for Multicast switching control only
Please note: the ACM500 can be used with both 5V and 12V IR line systems. Please ensure that the switch (adjacent to
the IR port) is correctly selected to the specification of the IR line input.
TCP/IP:
The Blustream ACM500 can be controlled via TCP/IP.
For the full list of protocols please see 'RS-232 & Telnet Commands' located towards the rear of this manual.
A 'straight-through' RJ45 patch lead should be used when connected to a network switch.
Control Port:
Default IP:
Default Username:
Default Password:
RS-232:
The Blustream ACM500 can be controlled via serial using the serial 3-pin Phoenix connector. Default settings below:
For the full list of command protocols please see 'RS-232 & Telnet Commands' located at towards rear of this manual.
Baud Rate:
Data Bit:
Parity:
Stop Bit:
Flow Control:
The Baudrate for the ACM500 can be adjusted using the ACM500 built-in web-GUI, or by issuing the following
command via RS-232 or Telnet:
RSB x : Set RS-232 Baud Rate to X bps
Where X =
Contact:
support@blustream.com.au
A
23
192.168.0.225
blustream
1 2 3 4
57600
8-bit
None
1-bit
None
0 : 115200
1 : 57600
2 : 38400
3 : 19200
4 : 9600
|
support@blustream-us.com
B
|
support@blustream.co.uk
ACM500
USER MANUAL
C
05
