Your 840 Dvi Pattern Generator; Figure 1: 840 Dvi Pattern Generator - Kramer DigiTOOLS 840 User Manual

In particular, the 840 includes:
A DVI-D output
Seven control buttons: SVGA, XGA, SXGA, UXGA, Wide (On),
PATTERN – and PATTERN +
A 7-segment display that indicates the pattern number
An on board EERROM that saves the last setting used
Note that only the digital signal (DVI-D) is available on the DVI connector.
To achieve the best performance:
Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise levels
(often associated with low quality cables)
Avoid interference from neighboring electrical appliances that may
adversely influence signal quality and position your Kramer 840 away from
moisture, excessive sunlight and dust
4

Your 840 DVI Pattern Generator

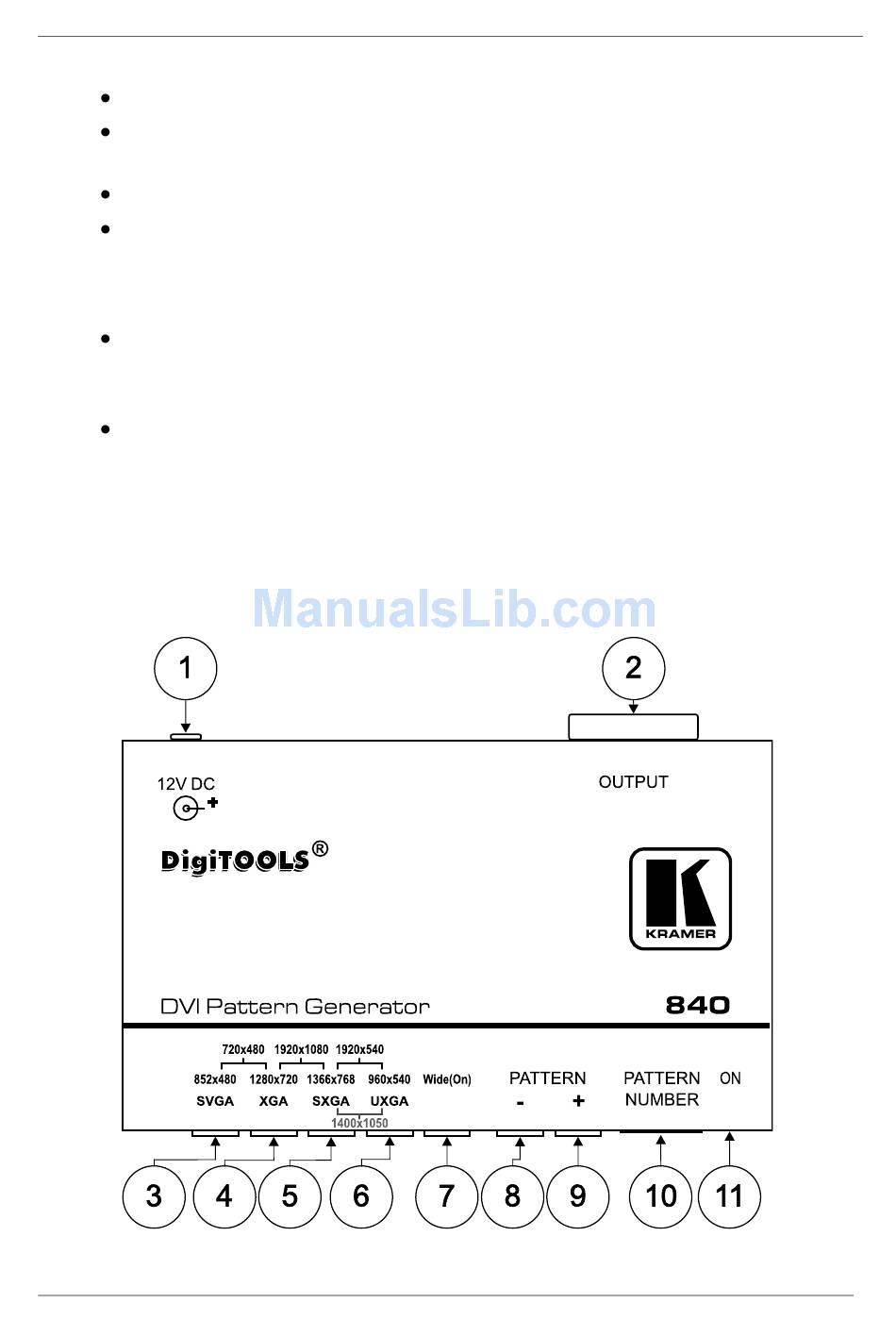

Figure 1 and Table 1 define the 840 DVI Pattern Generator (Table 2
summarizes how to select each DVI Output Resolution):
2
Your 840 DVI Pattern Generator

Figure 1: 840 DVI Pattern Generator
