2.

Getting Started

2.1

Connecting the Board to the Host PC

The AVR-IoT WA development board can be connected to a computer using a standard Micro-USB cable. Once
plugged in, the LED array at the top right-hand corner of the board should flash twice in the following order: Blue,
Green, Yellow, and Red. When the board is not connected to Wi-Fi , the blue LED will blink continuously. The board
will appear as a Removable Storage Device on the host PC, as shown in
Double click the CURIOSITY drive to open it and get started.
Note: All procedures are identical for Windows

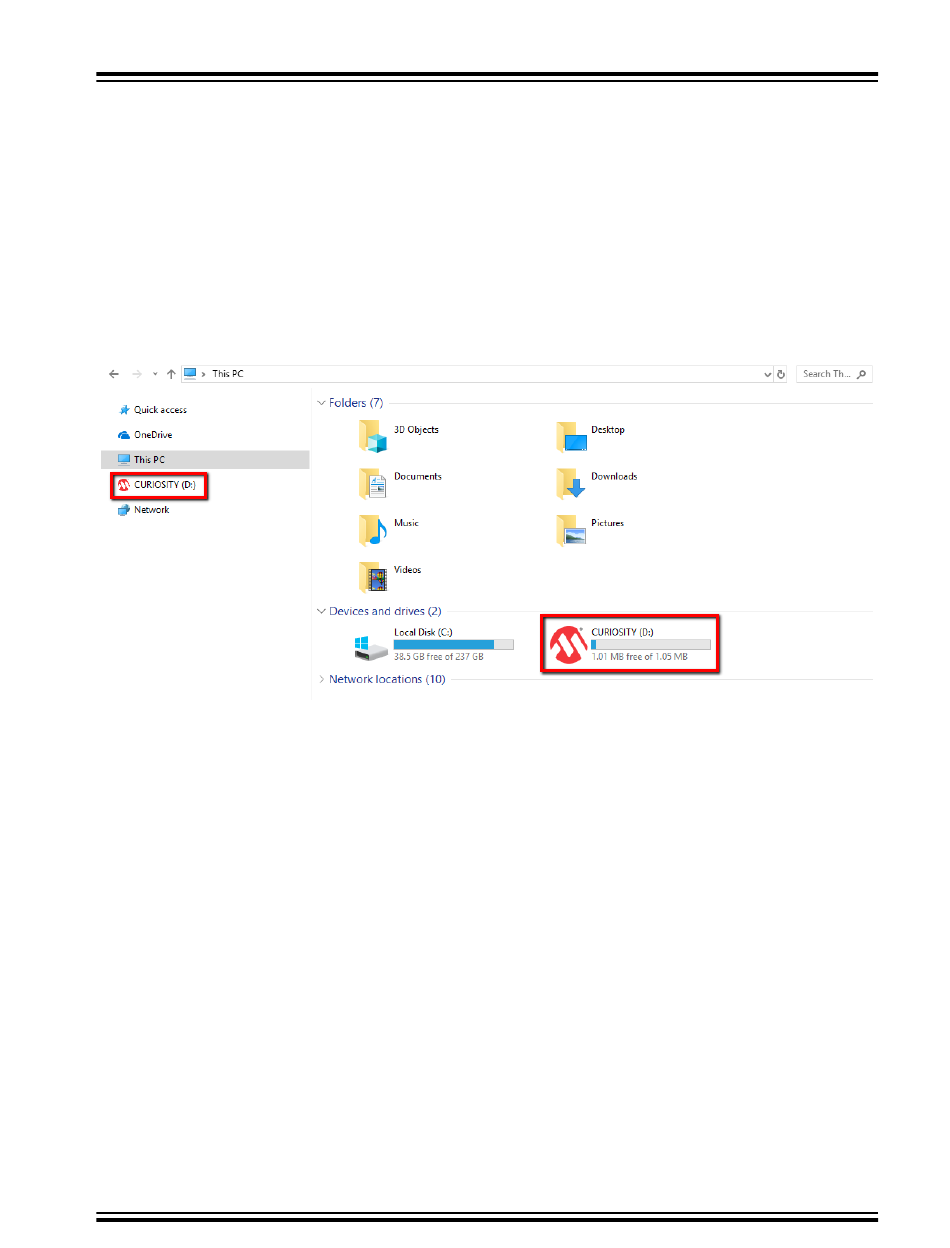

Figure 2-1. Curiosity Board as Removable Storage
The CURIOSITY drive should contain the following five files:
• CLICK-ME.HTM – redirects the user to the AVR-IoT web demo application
• KIT-INFO.HTM – redirects the user to a site containing information and resources about the board
• KIT-INFO.TXT – a text file with details about the PKOB nano firmware and the board's serial number
• PUBKEY.TXT – a text file with the public key used for data encryption
• STATUS.TXT – a text file with the status of the board
Double click on the CLICK-ME.HTM file to enter the dedicated web page to access the web application.
2.2

The AVR-IoT Web Page

AVR-IoT Web Page
the user to regenerate the Wi-Fi credentials as a file labeled WIFI.CFG. This can be loaded onto the board, acting as
a storage device to reconfigure access point parameters.
The status markers in the middle of the page, as shown in
system setup. These markers will light up once each stage has completed successfully.
©
