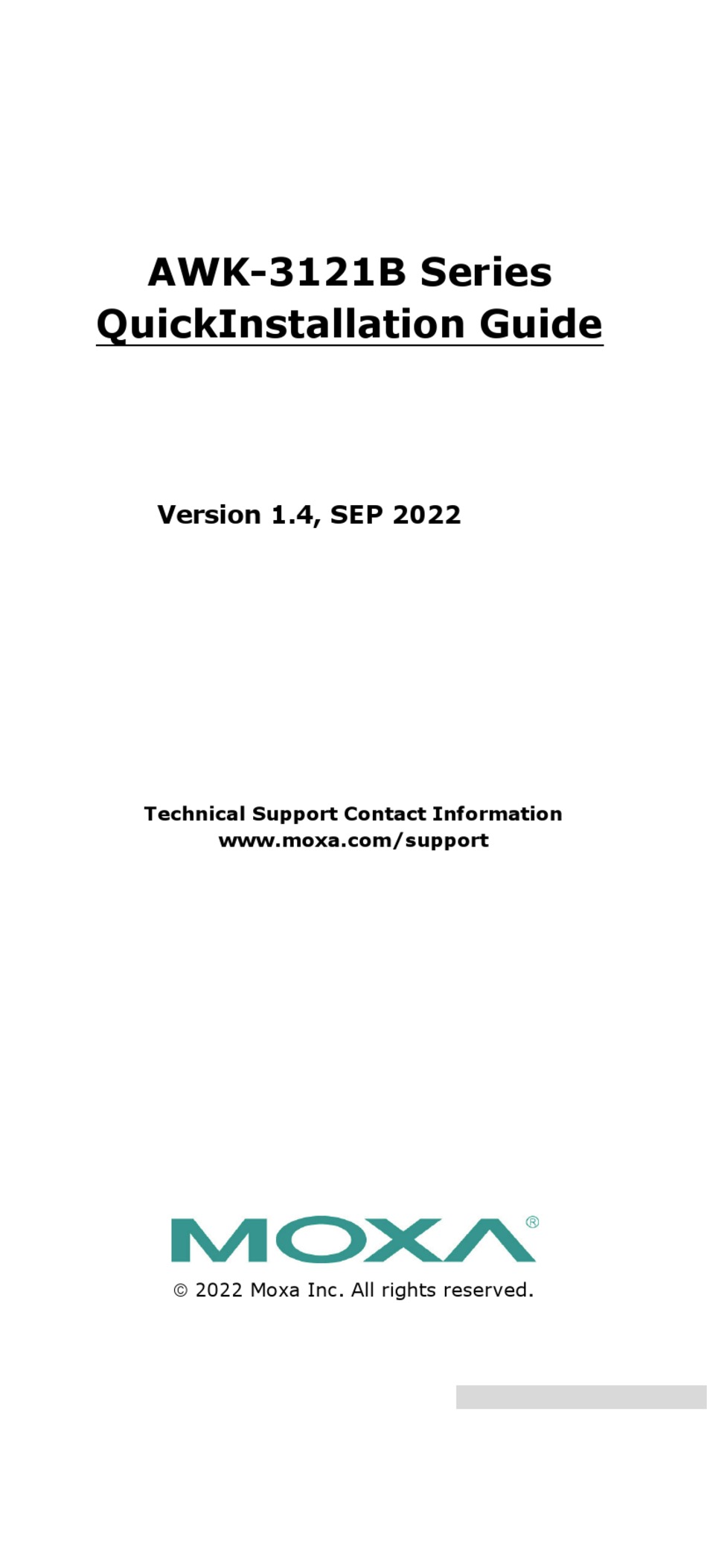

- Page 1 AWK-3121B Se ries QuickInstallation Guide Version 1.4, SEP 2022 Technical Support Contact Information www.moxa.com/support 2022 Moxa Inc. All rights reserved.
-
Page 2: Package Checklist
Overview The AWK-3121B wireless AP/client is the ideal rugged wireless solution for railway onboard/wayside and train-to-ground applications such as CCTV and CBTC communications. It can provide speeds of up to 300 Mbps with IEEE 802.11n technology. The AWK-3121B's can operate at temperatures ranging from -40 to 75°C and meet the requirements of the EN 50155/50121 regulations. - Page 3 Step 3: Set up the computer’s IP address Set an IP address for the computer so that it is on the same subnet as that of the AWK-3121B. Since the AWK-3121B’s default IP address is 192.168.127.253, and the subnet mask is 255.255.255.0, set the IP address of the computer in the 192.168.127.xxx IP range and subnet mask to 255.255.255.0.
-
Page 4: Wall Mounting (Optional)
Panel Layout of the AWK-3121B 1. 1A N-type antenna port 2. 1B N-type antenna port 3. Model name 4. LEDs 5. 4-pin male M12 A-coded connector for PWR-1 and PWR-2 6. 10/100/1000BaseT(X) 8-pin M12 X-coded female connector for LAN1 7. Grounding screw 8. -
Page 5: Din-Rail Mounting (Optional)
M4 screws specification for Wall Mounting Kit: STEP 2: Mounting the AWK-3121B to a wall requires 4 screws. Use the AWK-3121B device, with wall-mounting plates attached, as a guide to mark the correct locations of the 4 screws. The heads of the screws should be 6.0 mm in diameter, and the shafts should be less than 3.5 mm in diameter, as shown in the figure at the right. - Page 6 M4 screws specification for DIN-Rail Mounting Kit: STEP 2: STEP 3: Insert the top of the DIN rail into The DIN-rail attachment unit will the slot just below the stiff metal snap into place as shown in the spring. figure below: To remove the AWK-3121B from the DIN rail, simply reverse Steps 2 and 3.
-
Page 7: Wiring Requirements
Wiring Requirements WARNING Safety First! Be sure to disconnect the power cord before installing and/or wiring your AWK-3121B. WARNING Safety First! Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes that dictate the maximum current allowed for each wire size. If the current goes above the maximum ratings, the wiring could overheat, causing serious damage to your equipment. -
Page 8: Connecting The Power Supplies
Grounding the Moxa AWK-3121B Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. ATTENTION This product is intended to be mounted to a well-grounded mounting surface, such as a metal panel. -
Page 9: Led Indicators
RS-232 Console Connection The AWK-3121B has one RS-232 (8-pin RJ45) console port on the front panel. Use either an RJ45-to-DB9 or RJ45-to-DB25 cable to connect the AWK-3121B console port to your PC’s COM port. You may then use a console terminal program to access the AWK-3121B for console configuration. -
Page 10: Specifications
Specifications WLAN Interface Standards IEEE 802.11b/g for Wireless LAN IEEE 802.11i for Wireless Security IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT Spread Spectrum and • DSSS with DBPSK, DQPSK, CCK Modulation (typical) • OFDM with BPSK, QPSK, 16QAM, 64QAM •... - Page 11 Transmitter Power 802.11b: • Typ. 26±1.5 dBm @ 1 Mbps • Typ. 26±1.5 dBm @ 2 Mbps • Typ. 26±1.5 dBm @ 5.5 Mbps • Typ. 25±1.5 dBm @ 11 Mbps 802.11g: • Typ. 23±1.5 dBm @ 6 to 24 Mbps •...
- Page 12 Professional installation This is a specific product that requires professional installation and configuration, must be performed by trained technical engineers to install the antenna, please contact Moxa for further information. The availability of some specific channels and / or operational frequency bands are country dependent and are firmware programmed at factory to match the intended destination.
-
Page 13: Warranty
Installation Wall mounting (optional), DIN-rail mounting (optional) Environmental Limits Operating -40 to 75°C (-40 to 167°F) Temperature Storage Temperature -40 to 85°C (-40 to 185°F) Ambient Relative 5% to 95% (non-condensing) Humidity Power Requirements Input Voltage 24VDC, dual DC power input Input Current 0.789 A (max.) @ 24 VDC Connector... - Page 14 ATTENTION Use the antennas correctly: The 2.4 GHz antennas are needed when the AWK-3121B operates in IEEE 802.11b/g. Make sure your antenna installation is within a safe area, which is covered by a lightning protection or surge arrest system. - 14 -...
