IF THE SCANNER IS INSIDE THE CHAIN...

TURN OFF THE COMPUTER AND ALL THE SCSI DEVICES
BEFORE CHANGING SCSI IDS, CONNECTING SCSI
CABLES, OR DISCONNECTING SCSI CABLES.
One D-sub-25 to Centronics 50 cable is included with your scanner. Please see your dealer if you require additional
cables.

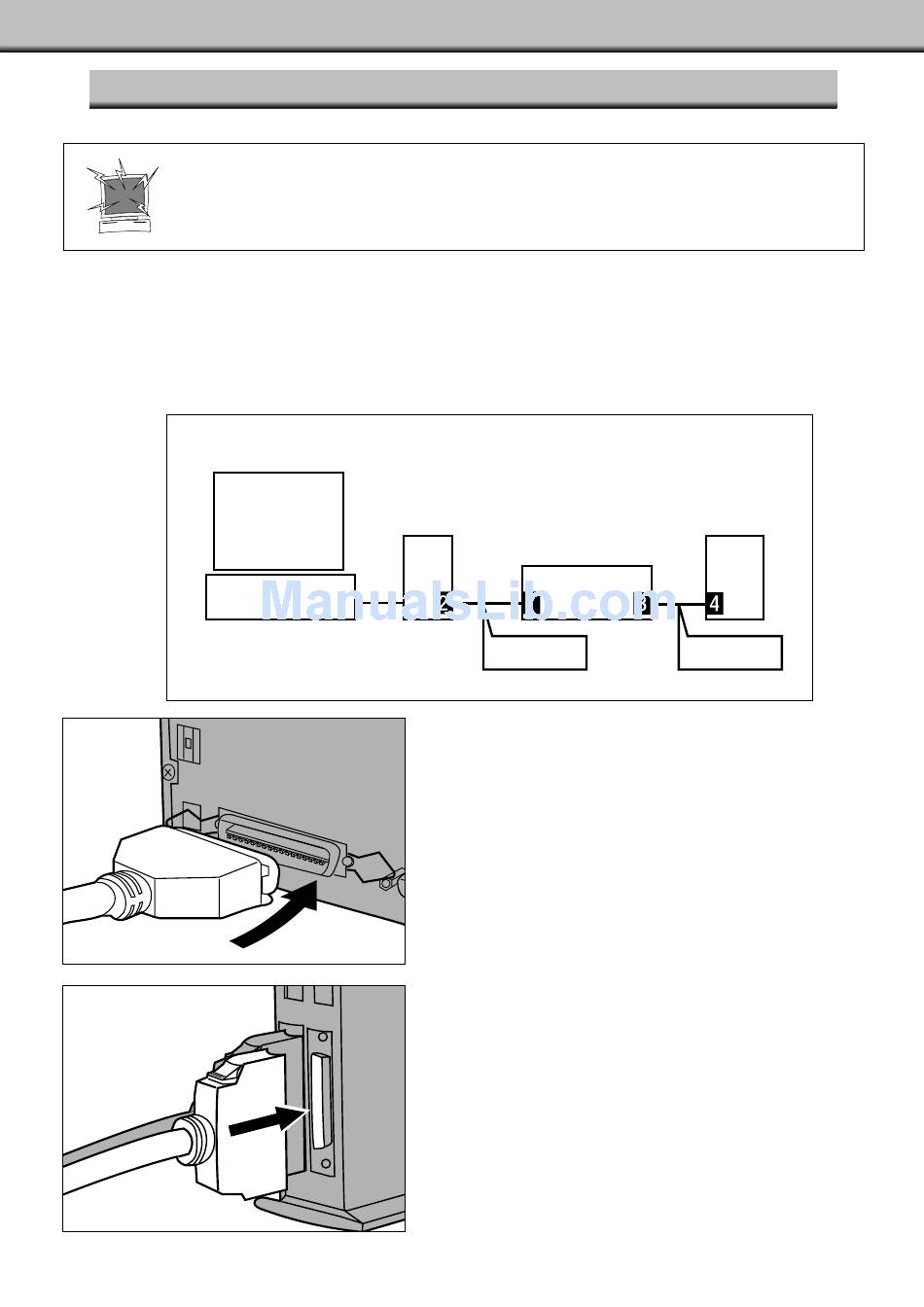

The following is an example of one possible SCSI chain configuration.
Computer
SCSI Device 1
Scanner
Cable "A"
1. Connect one end of the SCSI cable A into
either SCSI port on the back of the scanner.
• Either SCSI port can be used, there is no dedicated in or
out port.
2. Plug the other end of SCSI cable A into SCSI
device 1.
11 Continued on following page.
SCSI Device 2
Cable "B"
