S
CANNER SETUP

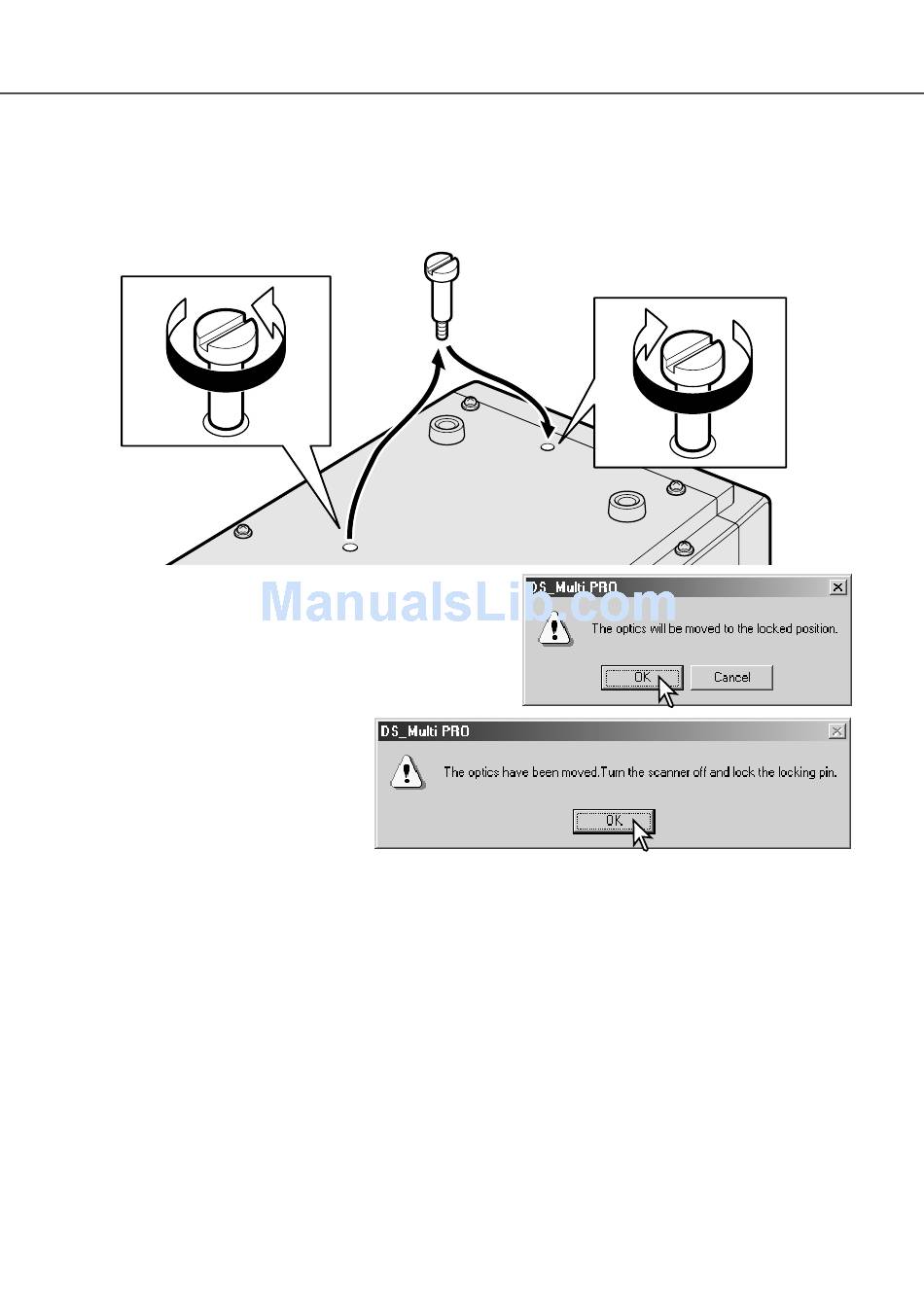

Removing the optics locking screw

Before the scanner can be used, the optics locking screw on the bottom panel of the scanner
must be removed with a flat-head screwdriver. The locking screw is necessary to transport the
scanner. Place the screw in the storage position toward the front of the scanner body for future
use.

Transporting the scanner

To prevent damage when transporting the scanner, the
optics locking screw must be used. Before inserting the
screw in the lock position, the scanner must be initial-
ized with the DiMAGE Scan Utility.
With the scanner connected to the
computer and the DiMAGE Scan
Utility running, press the control
(Windows) or command (Macintosh)
key plus the shift and L keys simulta-
neously. A window indicating the
command will be displayed; click the
OK button to move the optics to the lock position.
A message stating the completion of the operation will be displayed; click the OK button. Turn off
the computer and scanner. Disconnect the cable and power cord from the scanner and screw the
optic locking screw in the lock position.
Before connecting the scanner to a computer
Before connecting the scanner to a computer, the the DiMAGE Scan Utility must first be installed.
Read the software instruction manual for the installation procedure.
The scanner should be placed on a level surface free from vibrations. It should be located away
from direct sunlight and in a clean, dry, well-ventilated area.
7
