Height Adjustable Conference Table

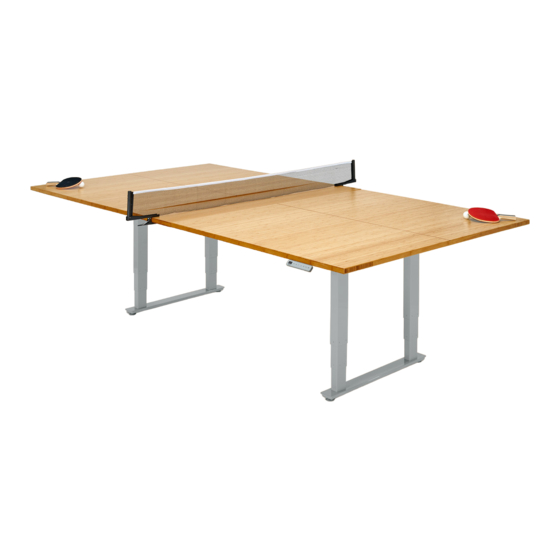

and Conference Ping-Pong Table

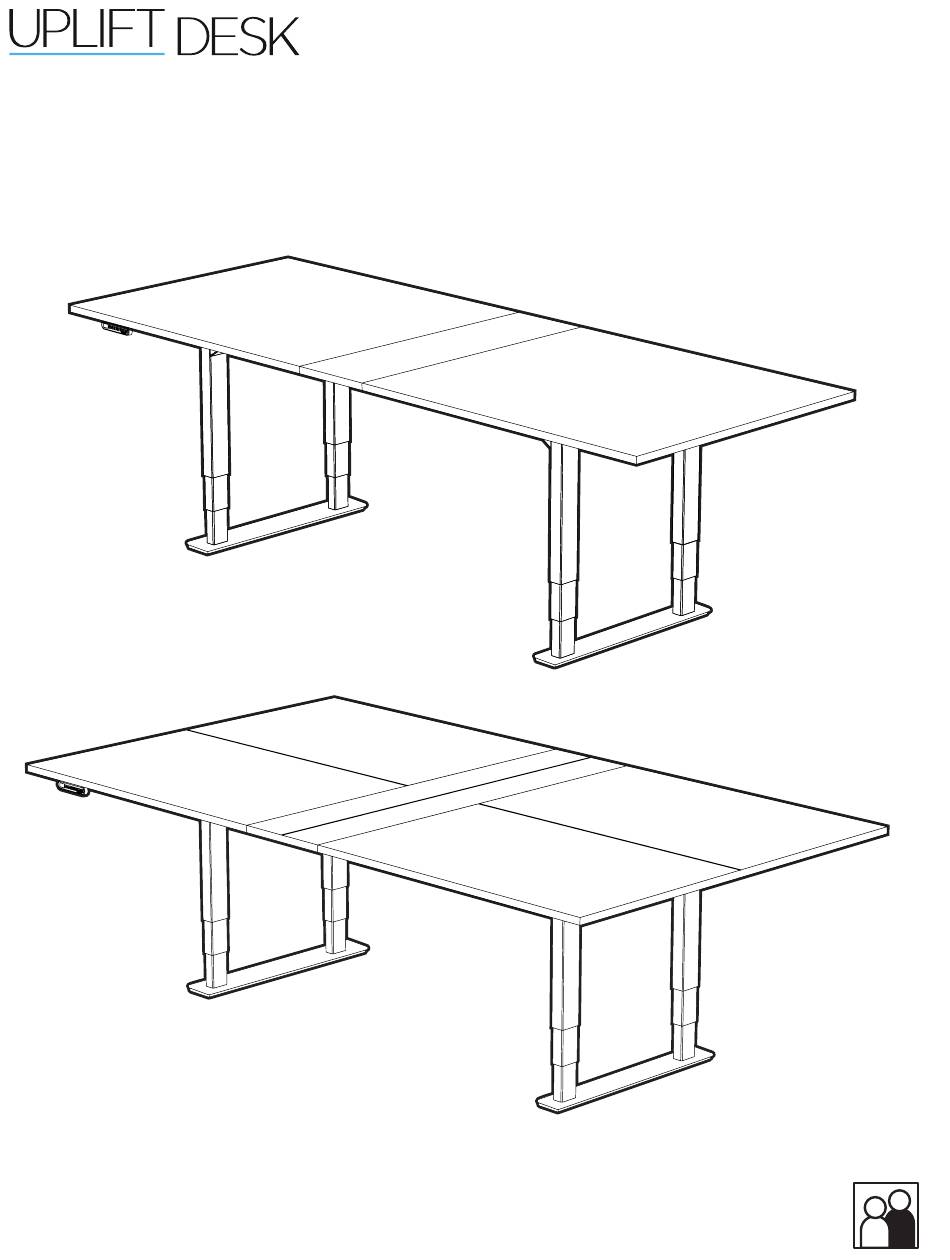

Conference table with included
but optional center leaf section
Ping pong table with included
but optional center leaf section
two person
For assembly assistance,
assembly
visit upliftdesk.com/uplift-height-adjustable-conference-ping-pong-table/
or call 800-349-3839 or email support@upliftdesk.com
355 lb
Patent Pending, ©2022 UPLIFT Desk®. All Rights Reserved
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Uplift Desk UPL961
Summary of Contents for Uplift Desk UPL961
- Page 1 Conference table with included but optional center leaf section Ping pong table with included but optional center leaf section two person For assembly assistance, assembly visit upliftdesk.com/uplift-height-adjustable-conference-ping-pong-table/ or call 800-349-3839 or email support@upliftdesk.com 355 lb Patent Pending, ©2022 UPLIFT Desk®. All Rights Reserved...
-
Page 2: Safety And Warnings
WARNING: Never use the desk if the power cord or plug is damaged as this can cause a risk of fire and electric shock. Contact UPLIFT Desk for a replacement power cord if it is damaged in any way. WARNING: Risk of serious injury or death. - Page 3 Note: Desk image is for reference only. Desk shape and leg quantity or style may change based on the desk configuration ordered. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
-
Page 4: Package Contents
Package Contents Components (packed in multiple boxes) Crossbar End Crossbar Rail Side Bracket Control Box Keypad (qty 4) (qty 4) (qty 4) (qty 2) (qty 1) (qty 1) (Packed in this box, or an accessory box) Power Cable Leg Cable Wire Support Bracket Foot... -
Page 5: Component Diagram
Component Diagram Side Bracket Crossbar End Support Bracket M8x8 Set Screw Crossbar Rail M6x10 Machine Screw Side Bracket M6x10 Machine Screw M6x14 Machine Screw Foot © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com... - Page 6 Table Assembly Instructions Step 1 - Inventory of Parts A. For ease and safety, we recommend using two people for assembly. Before assembly, consider where you want your table to be located. Since your new table is height adjustable, you will want it located a safe distance from anything that could obstruct the table from being raised or lowered (like a wall- mounted shelf or cabinet).
-
Page 7: Step 5 - Leg Attachment
A. Position the table top sections and the four Crossbar Rails (P3) as shown. B. Slide the table top sections together ensuring that the four Crossbar Rails are inserted into the Crossbars Ends on each side. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com... - Page 8 Step 7 - Crossbar End Attachment A. Using a Phillips Head Screwdriver, loosely insert one #10- 24x3/4” Machine Screw (H4b) and one Washer (H5) through each Crossbar End and into the table top as shown. B. Once all four screws are started, tighten them but be careful to not overtighten to avoid stripping.
-
Page 9: Step 14 - Cable Connections
M1 M2 M3 M4 Box, you can swap it with one of the longer cables. C. Connect the end of the Keypad (P6) cable into the port on the Control Box marked “HS”. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com... -
Page 10: Accessory Installation
Accessory Installation Now is a good time to install any accessories such as the Wire Management Tray, CPU Holder, Keyboard Tray, or other items that attach to the underside of your desktop. This section will cover accessories that are included with your table frame. For other accessories, refer to the instructions that were provided with those products. - Page 11 Keypad is facing up and the back of the Feet are touching the floor. fig. 1 © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 12 Table Placement (Continued) B. Readjust your grip and continue to rotate the table until it is rightside up with both Feet completely on the floor. fig. 2 C. Position your table where you would like it to be. Never lift the table by just the table top, doing so will put undue stress on the attachment screws.
-
Page 13: Keypad Lock
Note: While “RST” is still flashing, you can continue to press and hold the “1” button to toggle between the two settings. 4. Hold the DOWN button once more until the desk lowers slightly, then raises slightly, and the display changes back to the numeric height setting, then release. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com... -
Page 14: Display Units
Programming (Continued) Display Units Change the numeric display to show the desk height in either inches or centimeters. 1. Hold the DOWN button on the Keypad until the desk reaches the lowest height, then release. 2. Hold the DOWN button again until display flashes “RST”. 3. -
Page 15: Troubleshooting
If the error message persists after performing the Reset Procedure above or if there is a height difference between the Legs which exceeds 1.5’’, contact UPLIFT Desk at the email address or phone number listed on these instructions. Starting & Stopping If your desk is continuously starting and stopping as you try to raise or lower it, check to make sure the Control Box is attached securely to the Frame. - Page 16 3293314132605 - INS-FRM580-PPC Copyright Notice: This guide is a component of this UPLIFT Desk product. This guide is a part of the © 3293314132605 scope of delivery, even if the item is resold. This guide is also available on the UPLIFT Desk website: AI-FRM580-PPC-1.0...
